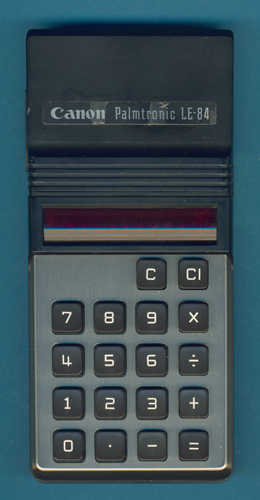

Canon LE-84

Date of introduction:  August 1974 Display technology:  LED-stick
New price:  $24.95 (1975) Display size:  8
Size:  6.1" x 2.9" x 1.0"
 154 x 74 x 25 mm3

Weight:  5.0 ounces, 142 grams Serial No:  846436
Batteries:  4*AA Alkaline Date of manufacture:  year 1974
AC-Adapter:   Origin of manufacture:  Japan
Precision:  8  Integrated circuits:  TMS0801
Memories:
Program steps:   Courtesy of:  Peter Muckermann († April 21, 2021)

LE-84_PCB.jpg (46865 Byte)The Canon LE-84 uses the TMS0801 calculator chip instead of the TMS0101 used in the earlier LE-83.

From the technology the LE-84 is similar to the TI-1500 introduced by TI same time.

LE-84_DISP.jpg (20202 Byte)The LE-84 and its sibling LE-85 were the last pocket calculators in Canon’s line using the red LED display. The display of the pictured calculator was manufactured by Antex and provided by Amcon, Canon's subsidiary situated in Silicon Valley, California.


The next calculator generation introduced with the LD-80 the green VF-Display (Vacuum Fluorescent). Main advantage of this technology was that time both lower power consumption and cheaper purchase price.
