Additional Pictures
This Canon LE-84
(Version 1) was manufactured
in June 1974 in Japan. |

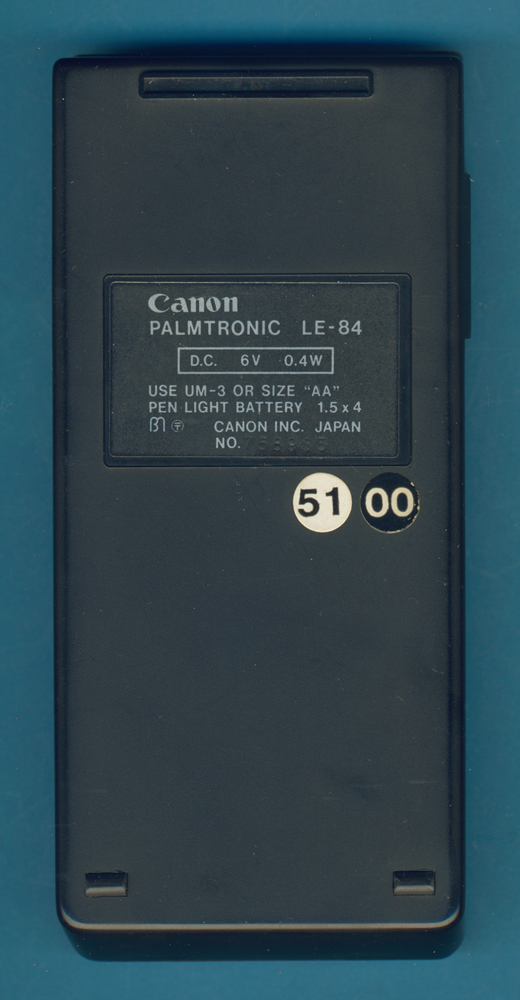

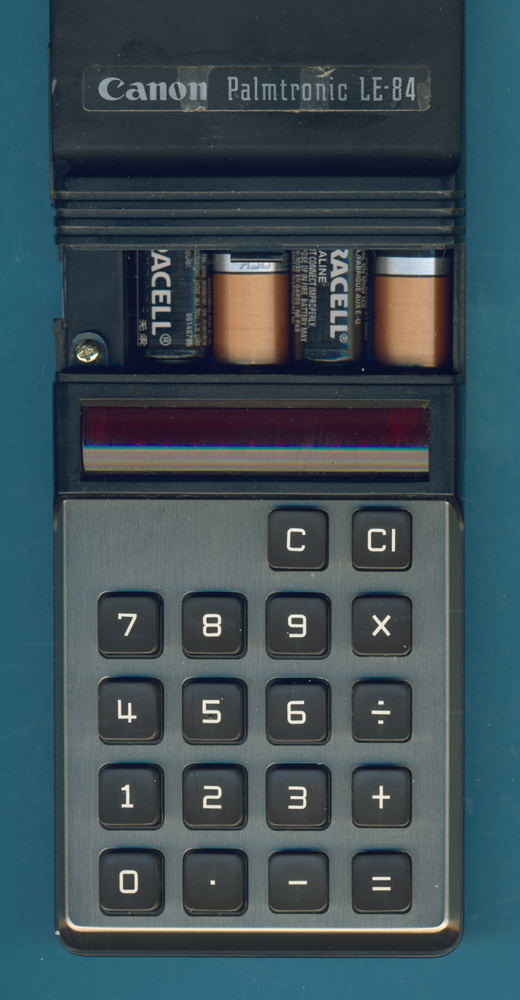

The Canon LE-84 is powered by a
four disposable 1.5 Volt batteries. |

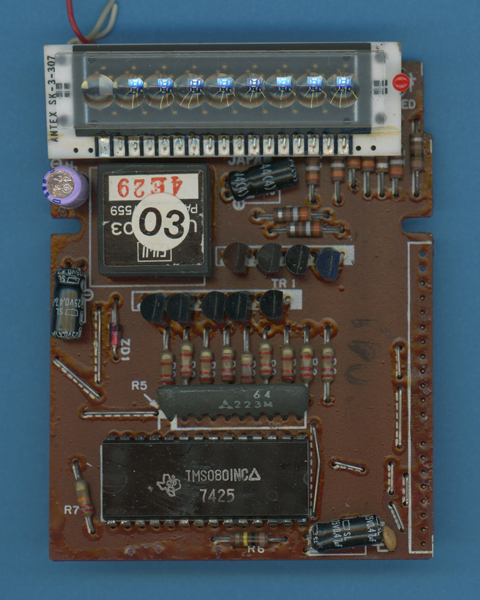

| The printed circuit board
(PCB) of the Canon LE-84 is centered around a
TMS0801 single-chip calculator circuit and supported by discrete transistors instead the two display drivers hybrid circuits.  |

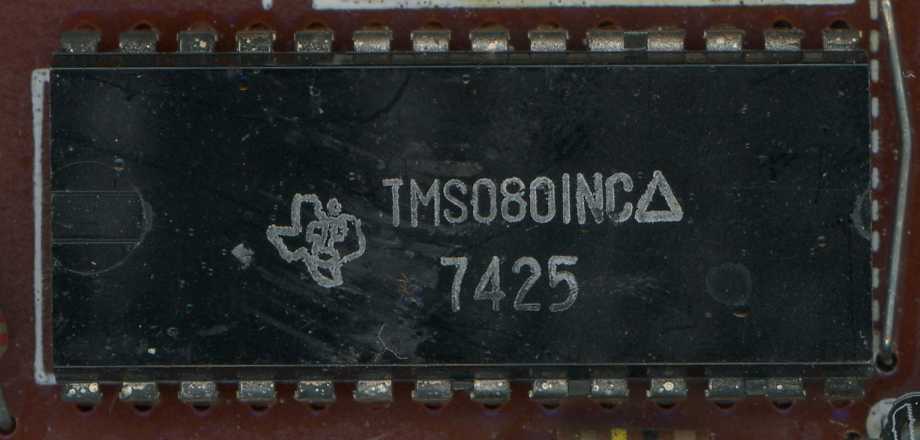

Close-up view
of the TMS0801 single-chip calculator circuit. |

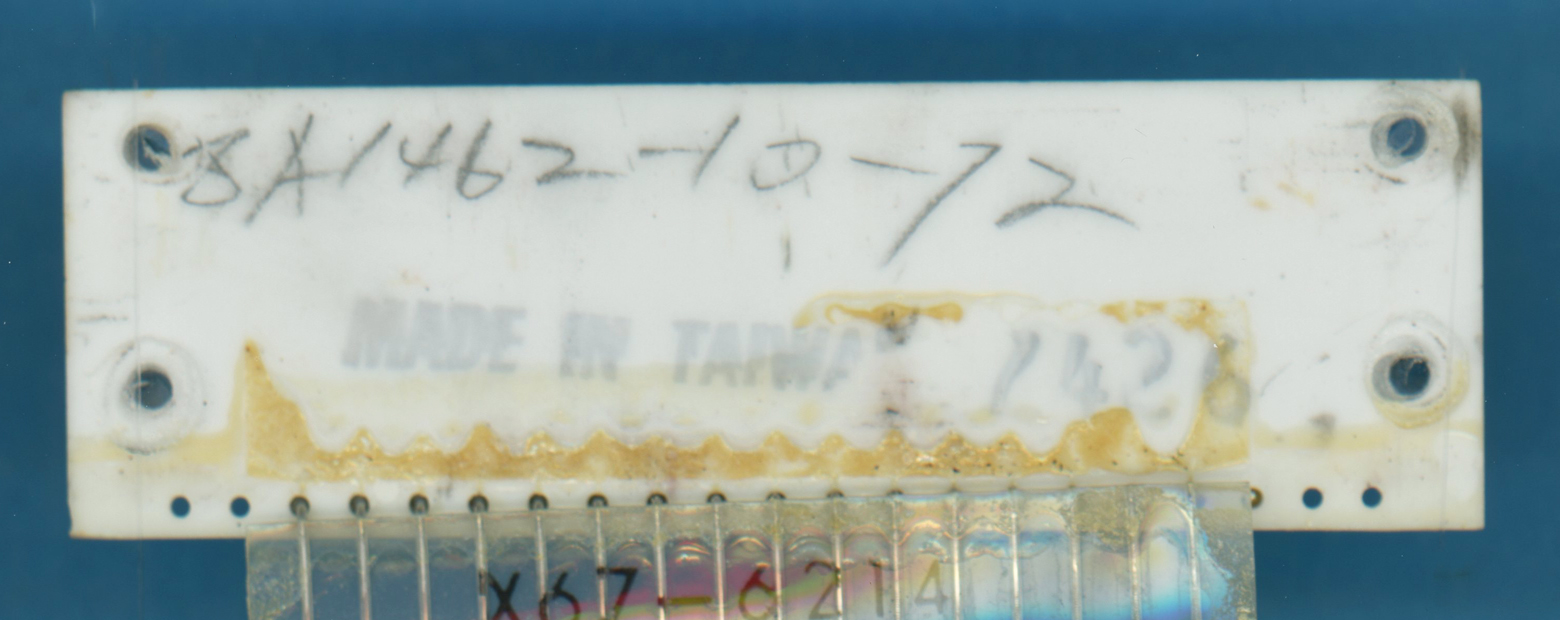

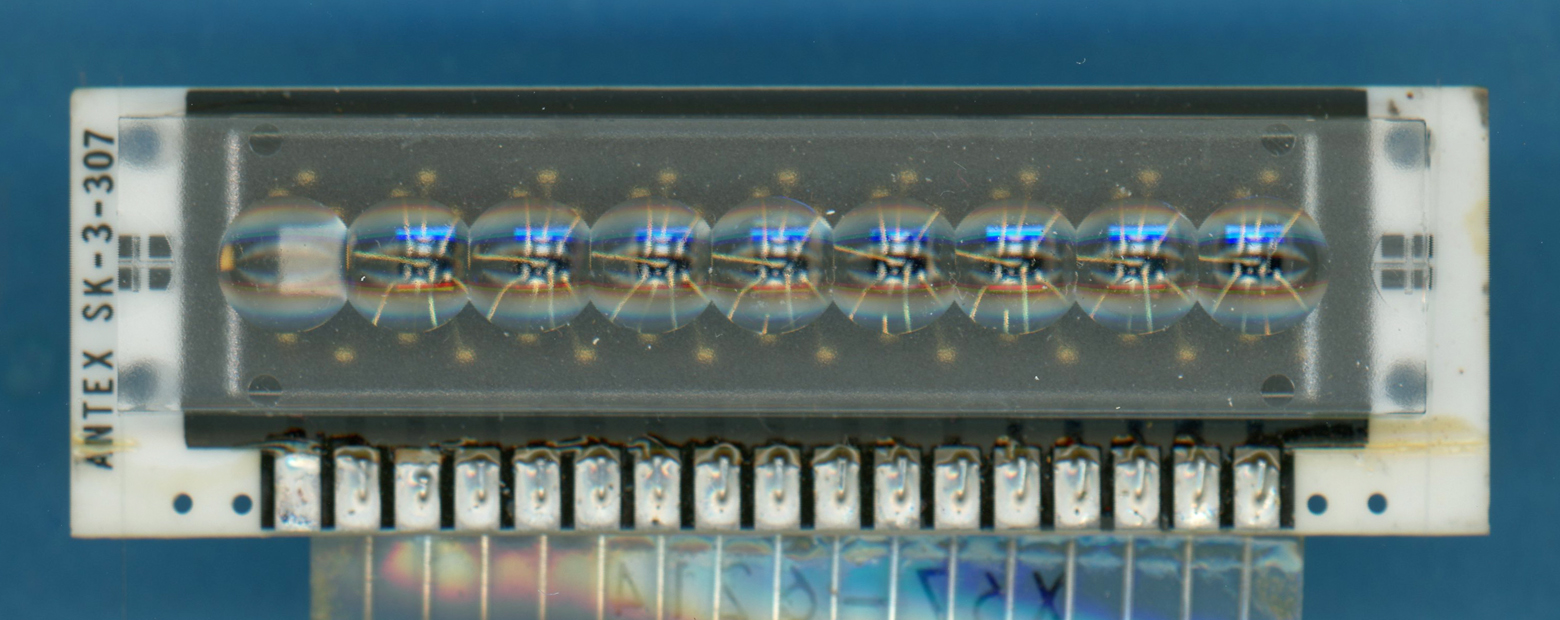

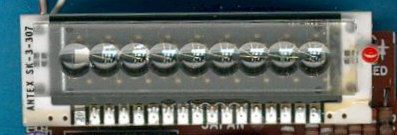

Close-up view of the
ANTEX SK-3-307 LED display module.  |

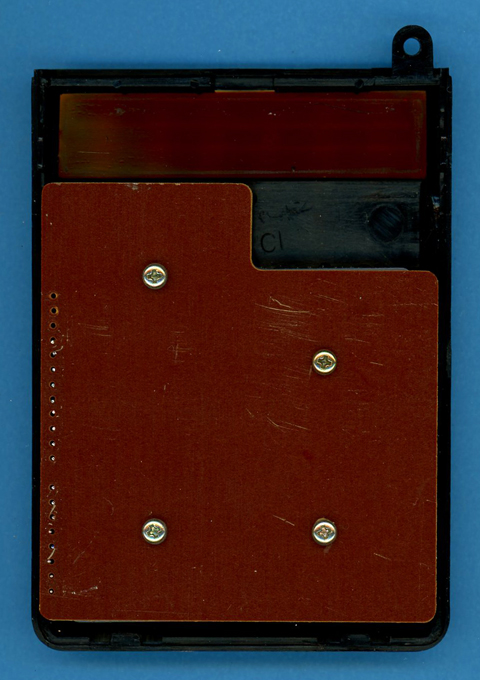

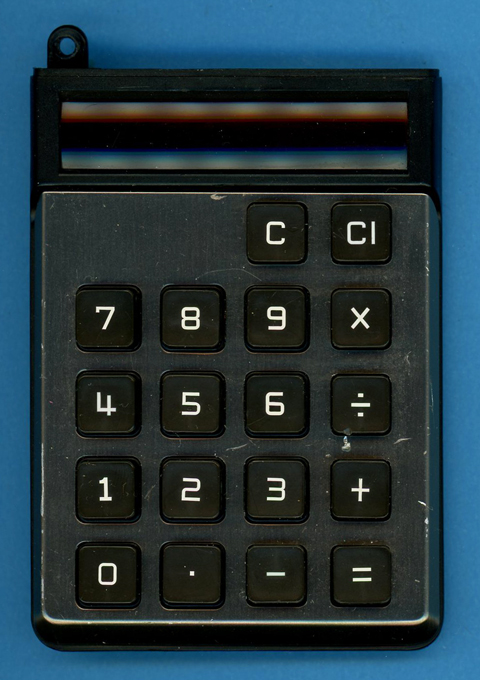

Front and backside of the
keyboard assembly from a Canon LE-84 calculator.  |

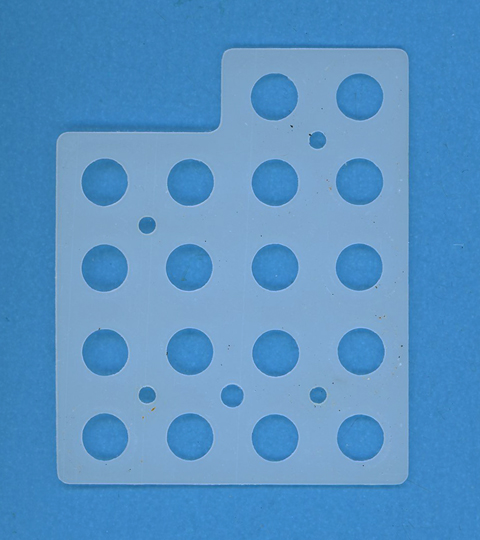

| The keyboard assembly
with the printed circuit board (PCB) removed,
showing the springs and conductive rubber elements of the keys. The springs are isolated from the PCB with a stamped plastic foil.   |
