Additional Pictures

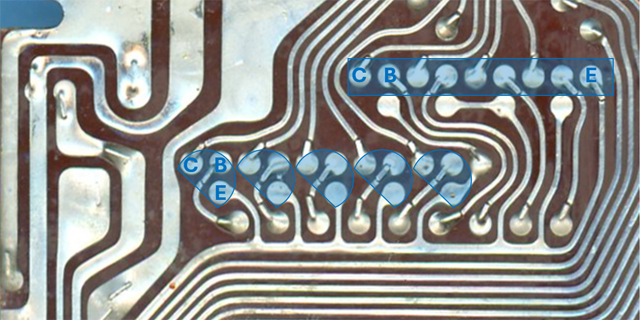

The printed circuit board (PCB) of a Canon LE-84 prepared for both hybrid circuits (upper example)
or discrete NPN bipolar junction transistors (lower example) as display drivers.
