Texas Instruments introduced on January 15, 1974 with the SR-50 their first "Slide Rule" calculator adding trigonometric and hyperbolic functions to the feature set of the SR-10, SR-11, and SR-16 line of calculators to compete with Hewlett Packards HP-35. The SR-50 was the first product based on the TMS0500 Building Blocks for Scientific and Programmable Calculators and used its minimum configuration combining the TMC0501 Arithmetic Chip and one TMC0521 SCOM (Scanning Read-Only Memory) Chip with the necessary display drivers for its 14-digit LED display, power supply and clock generation. Later Scientific Calculators made use of the flexibility of the TMS0500 architecture by using multiple SCOMs (SR-51), adding program and data memory (SR-56) and even magnetic card readers (SR-52) and a printer and matrix display (SR-60).
The TMC0520 SCOM Chip integrates 1,024*13 Bits Instruction Memory with serial interface to the TMC0501 Arithmetic Chip/TMC0501E Enhanced Arithmetic Chip, 16 Constants mainly used for the calculation of transcendental functions with 16 digits, each accessible through a 4-bit bidirectional I/O bus and outputs for up to 16-digit display and keyboard scanning. In addition to the 5 Registers of the TMC0501/TMC0501E labeled A, B, C, D, and E integrates the SCOM Chip two additional Registers with 16 digits capacity each, and named accordingly Register F and Register G. While the design of the TMC0520 SCOM Chip would allow to use up to 8 devices in one product, were most designs implemented with additional TMC0560 BROM (Bare Read-Only Memory) Chips to increase program memory capacity.
Communication between the TMC0501 Arithmetic Chip/TMC0501E Enhanced Arithmetic Chip and the other family members of the TMS0500 Building Blocks is realized with multiple means:
IDLE, PHI 1 and PHI 2
Signals are used to synchronize all peripherals connected to the
TMC0501/TMC0501E Arithmetic Chips with the 16 States of its Instruction Cycle EXT Output indicates that the TMC0501/TMC0501E Arithmetic Chips is addressing external memories/registers IRG Input to receive the 13-bit Instruction Words from the ROM of the TMC0520 4-bit bidirectional I/O Bus I/O 8, I/O 4, I/O 2, and I/O 1 to communicate with registers |
The TMC0520 SCOM Chip was replaced in 1976 with the TMC0530 SCOM Chip adding an additional two-phase clock generator as a bond-out option with a 30-pin DIP (Dual Inline Package) encapsulation used only with the SR-52A.
QUICK-LINK to TMS0500 Family.
Type | Calculators | Function |
TMC0521 | SR-50, SR-50A | SCOM 1 |
TMC0522 | SR-51, SR-51A | SCOM 1 |
TMC0523 | SR-51, SR-51A | SCOM 2 |
TMC0524 | SR-52 | SCOM 1, with TMC0562, TMC0563 |
TMC0526 | SR-60 | SCOM 1, with TMC0564, TMC0565, TMC0566, TMC0567, TMC0568/TMC0570 |
Revision | Products | First Prototypes | Comments |
TMC0521 | SR-50 | Initial design | |
TMC0521 Rev A | SR-50 | ||
TMC0521 Rev B | SR-50 | Marking B and/or -2 Forensics: 9.000005272880 |
|
TMC0521 Rev C | SR-50 | Marking C and/or -4 Forensics: 9.000005272880 |
|
TMC0521 Rev D | SR-50 | July 1974 | Marking D and/or -5 Forensics: 9.000004661314 |
TMC0521 Rev E | SR-50, SR-50A | April 1975 | Marking E and/or -5 Forensics: 9.000004661314 |
TMC0522 TMC0523 |
SR-51 | Initial design, SCOM 1 Initial design, SCOM 2 |
|
TMC0522 Rev A TMC0523 Rev A |
SR-51 | ||
TMC0522 Rev B TMC0523 Rev B |
SR-51 | ||
TMC0522 Rev C
TMC0523 Rev C |
SR-51 | ||
TMC0522 Rev A5
TMC0523 Rev A5 |
SR-51A | Marking A and -5 | |
TMC0524 | SR-52 | (February 1975) | Initial design, SCOM 1 |
TMC0524 Rev A | SR-52 | April 1975 | Implied Multiplication removed |
TMC0524 Rev B | SR-52 | August 1975 | Replaced by TMC0534 |
TMC0526 | SR-60 | April 1975 | Initial design, SCOM 1 Implied Multiplication removed AUX, BST, INS |
TMC0526 Rev A | SR-60 | October 1975 | Implied Multiplication removed |
The early
ROM-Codes TMC0521-2 and -4 are less accurate and was replaced in July 1974 with the TMC0521-5
ROM-Code. Please learn more about Calculator
forensics.
IMPORTANT NOTE: This information is provided as a service of the Datamath Calculator Museum to enthusiasts of early Texas Instruments calculators and please be aware that the Copyright of the Software transcribed in the ROM Images, the underlying algorithm or application might be owned by Texas Instruments or other third parties. The commercial use of the published Recorded ROM Images is strictly prohibited. In case of questions please contact us using the email address listed in the footer of this webpage.
Parameter | Min | Typ | Max | Unit | Comments |
VSS | 0 | V | |||
VDD | -10.5 | -10.0 | -9.5 | V | |
VGG | -16.3 | -15.8 | -15.3 | V | |
PHI1, PHI2 | 225 | 230 | kHz | Opposite phases |
KEYBOARD AND DISPLAY SCANNING
The TMS0500 Building Blocks use two non-overlapping clock signals PHI 1 and PHI 2 with a frequency of up to 250 kHz. Each so-called State Time consists of a sequence of PHI 1 → Pause 1 → PHI 2 → Pause 2 and represent the time for one bit to be operated on in the various sections of the chips. Sixteen of these State Times, numbered S0 to S15 represent one Digit Time used to scan the keyboard and display of the calculator. While the State Times count up from S0 → S1 ... → S15, are the Digit Times counting down from D15 → D14... → D0 to allow easier zero suppression approach of the displayed numbers. The TMC0501/TMC0501E Arithmetic Chips generates an IDLE signal to synchronize the other TMC05XX chips to this timing sequence by marking the State Time S0 with its negative edge. The positive edge of the IDLE signal can occur anywhere between State Times S1 and S15, this feature is used to differentiate between the TMC0501/TMC0501E status "calculating" and "idle - display". Some calculator designs make use of the IDLE signal to lower the clock frequency in "display mode" to reduce power consumption of the chips.
The TMS0500 Building Blocks share both the tasks of scanning the keyboard and display with the SCOM/DSCOM Chips responsible to generate and output the 16 Digit Times Output in descending order on its D0 to D15 pins, while the Arithmetic Chip or Enhanced Arithmetic Chip reads the input of the keyboard matrix on its 7 KN to KT pins and outputs the decoded signals for the display on its 9 Segment Output pins SA to SH and DP.
INSTRUCTION MEMORY
The TMC0520 SCOM integrates a main Read-Only Memory (ROM) with 1,024*13 Bits as Instruction Memory for the TMC0501/TMC0501E Arithmetic Chips. Internal, mask-programmed Chip-Select logic allow the use of a mix of up to 8 SCOM or TMC0560 BROM Chips in the design. With the Arithmetic Chip fetching the first instruction after power-on from Address 0, feature all known calculator designs based on the TMC0520 at least one SCOM addressed with the CS0 signal and hence covering an address range from 0x000 to 0x3FF (Decimal 0 to 1023). The innovative architecture of the TMS0500 Building Blocks allows not only the traditional loading of a ROM Address, additional logic inside the ROM addressing circuitry listens into the current instruction and based on additional signal even calculates the next ROM address. For this purpose the TMC0501/TMC0501E uses all 16 State Times S0 to S15 to communicate with its EXT Signal to the ROM Chips of the calculator:
S0: PREG - Program
Register Signal to load the address counter with a 10-bit ROM Address S1: COND - Condition Signal to allow for conditional branches S2: HOLD - Hold Condition Signal to suppress auto-increment or decrement of the address counter S3 - S12: lower 10-bit ROM Address (LSB first) S13 - S15: upper 3-bit ROM Address (MSB last) for CS0 - CS7 |
The power-on circuitry of TMC0501/TMC0501E Arithmetic Chips transmits on the EXT Signal for a few Digit Times a logical 1 at S0 time and logical 0 thereafter, effectively loading the address counter of the SCOM with 0x000 and selecting the ROM responding to CS0.
CONSTANT MEMORY
A novel feature of the TMS0500 Building Blocks is a dedicated space for constants, frequently used with computing algorithm of trigonometric functions like sine, cosine, or tangent and number conversions like millimeters to inches. With typical serial architectures used in electronic calculators, one instruction would load just one digit of a number and consequently for numbers represented in Scientific calculators with 12 to 15 digits, the algorithm would tend to be rather slow. Texas Instruments introduced with the TMS0500 Building Blocks a novel approach to load constants containing 16 digits within one Digit Time or instruction cycle from the Constant Memory to the TMC0501/TMC0501E Arithmetic Chips. To overcome the limitations of a bit-serial data transfer, the TMS0500 Architecture includes a 4-bit bidirectional I/O Bus I/O 8, I/O 4, I/O 2, and I/O 1. One digit, each of the 16-digit constants is transmitted during access to the Constant Memory in one State Time. Addressing of one of the possible 128 16-digit constants is accomplished with the EXT Signal connected to the SCOM Chips and a Constant Select logic "listening" into the "Recall Constant" instruction on IRG and outputting the constants accordingly on the I/O Bus.
S0: Always log.0 to Address Constant ROM S3 - S5: Lower 3-bit Constant ROM Address (LSB first) S7: Bit 4 of Constant ROM Address S8 - S10: Upper 3-bit Constant ROM Address (MSB last) for CS0 - CS7 |
The TMC0520 SCOM stores up to 16 constants and all known Scientific calculators based on the TMS0500 Building Blocks use the same values in the Constant Memory:
Constant Address |
16-digit SCOM Content (I/O 8 - 1, MSB first) |
Value c of Expression (≥ 13 digits) |
Expression |
00 | 230258509299400C | 2.302585092994 | c = ln (10) |
01 | 0693147180559945 | 0.69314718055995 | c = ln (2) |
02 | 0095310179804325 | 0.095310179804325 | c = ln (1.1) |
03 | 0009950330853168 | 0.0099503308531681 | c = ln (1.01) |
04 | 0000999500333084 | 0.00099950033308342 | c = ln (1.001) |
05 | 0000099995000333 | 0.000099995000333297 | c = ln (1.0001) |
06 | 0000009999950000 | 0.0000099999500003988 | c = ln (1.00001) |
07 | 0000000999999500 | 0.00000099999949991807 | c = ln (1.000001) |
08 | 0785398163397450 | 0.78539816339745 | c = arctan (1) |
09 | 0099668652491200 | 0.099668652491162 | c = arctan (0.1) |
0A | 0009999666686670 | 0.0099996666866652 | c = arctan (0.01) |
0B | 0000999999666667 | 0.00099999966666687 | c = arctan (0.001) |
0C | 0000099999999667 | 0.000099999999666667 | c = arctan (0.0001) |
0D | 157079632679501C | 1.57079632679486 | c = pi ÷ 2 |
0E | 314159265359000C | 3.141592653589793238 | c = pi |
0F | 572957795130801C | 5.729577951308 | c = 18 ÷ pi |
DATA REGISTERS
The TMC0520 provides two additional 16-digit Data Registers labeled Register F and Register G to the five Registers A - E of the TMC0501/TMC0501E Arithmetic Chips. The Registers are implemented as Serial-Access Memories (SAMs) and use a similar mechanism for external access as the Constant ROM. The SCOM Chips "listen" into "Store F", "Store G", "Recall F", and "Recall G" instructions on IRG and communicate the 16-digit values over the 4-bit bidirectional I/O Bus I/O 8, I/O 4, I/O 2, and I/O 1. One digit, each of the 16-digit values is transmitted to or from the selected Data Register in one State Time between the TMC0501/TMC0501E and TMC0520 Chips. The SR-50A Scientific calculator uses the two external Data Registers to implement its Sum-of-Products Logic and providing one User Memory. The SR-51A, using two TMC0520 SCOM Chips is adding two additional User Memories to the calculator or allowing to run mean, variance, standard deviation and linear regression routines. The 9 available Registers of the SR-51A are used as follows:
Register 1-4: Used for standard calculator operations Register 5: Holding Register for second operand of multiplication or division and second operand of two-variable functions Register 6: Sum-of-Products Register for intermediate results Register 7-9: Memory Registers M1, M2 and M3 |
The TMC0520 was manufactured in a 8 um metal gate PMOS process (metal width = 0.3 mil / 8.0 um, metal spacing = 0.30 mil / 8.0 um, diffusion width = 0.25 mil / 6.0 um, diffusion spacing = 0.35 mil / 9.0 um).
The die size of the TMC0520 is approximately 185 mils * 195 mils / 4.7 mm * 5.0 mm.

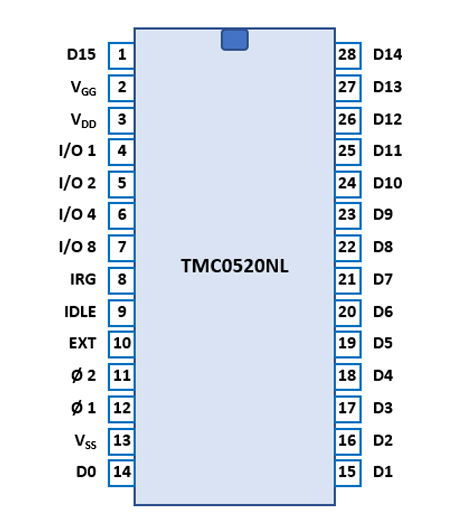

The TMC0520 uses a standard 0.6 wide 28-pin DIP (Dual In-line Package with a 0.1 / 2.54 mm lead pitch).
Pin | IO | Function | Pin | IO | Function |
1 | O | Digit driver 15 | 28 | O | Digit driver 14 |
2 | V | Negative Voltage VGG | 27 | O | Digit driver 13 (OVER) |
3 | V | Negative Voltage VDD | 26 | O | Digit driver 12 (M-MSD) |
4 | IO | SCOM Interface D0 | 25 | O | Digit driver 11 |
5 | IO | SCOM Interface D1 | 24 | O | Digit driver 10 |
6 | IO | SCOM Interface D2 | 23 | O | Digit driver 9 |
7 | IO | SCOM Interface D3 | 22 | O | Digit driver 8 |
8 | O | Instruction words | 21 | O | Digit driver 7 |
9 | I | Calculating status | 20 | O | Digit driver 6 |
10 | I | External access | 19 | O | Digit driver 5 |
11 | I | Clock Input 2 | 18 | O | Digit driver 4 |
12 | I | Clock Input 1 | 17 | O | Digit driver 3 (M-LSD) |
13 | V | Common Voltage | 16 | O | Digit driver 2 (E-MSD) |
14 | O | Digit driver 0 | 15 | O | Digit driver 1 (E-LSD) |
The keyboards of all calculators based on the TMC0501/TMC0501E Arithmetic chips consist of an x/y-matrix connected to the SCOM digit driver outputs and the TMC0501.TMC0501E keymatrix inputs.
Example for the SR-50 with TMC0521:
KN | KO | KP | KQ | KR | KS | KT | |
D0 | |||||||
D1 | 1 | = | C | log | eX | ∑ | |
D2 | 2 | − | hyp | ||||
D3 | 3 | + | . | x2 | D/R | ||
D4 | 4 | arc | lnx | ||||
D5 | 5 | ||||||
D6 | 6 | ÷ | CE | 1/x | cos | STO | |
D7 | 7 | × | +/− | sin | PI | ||
D8 | 8 | RCL | |||||
D9 | 9 | x<>y | |||||
D10 | 0 | x√y | |||||
D11 | xY | ||||||
D12 | √x | ||||||
D13 | EE | x! | tan | ||||
D14 | [R-D] | ||||||
D15 |
Notes: The R-D switch is detected with a diode between D14 - KS.
Example for the SR-51 with TMC0522:
KN | KO | KP | KQ | KR | KS | KT | |
D0 | [PC100] | (1) | |||||
D1 | 1 | = | C | eX | (1) | lnx | SUM |
D2 | 2 | − | INV | (1) | |||
D3 | 3 | + | . | x2 | (1) | PRM | |
D4 | 4 | 2nd | (1) | % | |||
D5 | 5 | (1) | |||||
D6 | 6 | ÷ | CE | 1/x | (1) | cos | STO |
D7 | 7 | × | +/− | (1) | sin | PI | |
D8 | 8 | (1) | RCL | ||||
D9 | 9 | (1) | ∑+ | ||||
D10 | 0 | x√y | (1) | ||||
D11 | xY | (1) | |||||
D12 | (ADV) | (PRT) | √x | (1) | |||
D13 | EE | x<>y | (1) | tan | |||
D14 | (1) | [R-D] | |||||
D15 | [TRC] | (1) |
Notes: The R-D switch is detected with a diode between D14 - KS. The PC-100 is detected with a diode between D0 - KP and the (PRT), (ADV) and [TRC] nodes are used to detect PRINT, PAPER ADVANCE and TRACE on the PC-100. The BUSY output of the TMC0251 Printer/Display Chip used with the PC-100 and PC-100A is connected to KR(1) and consequently active during all 16 Digit Times D0 to D15.
Example for the SR-52 with TMC0524:
KN | KO | KP | KQ | KR | KS | KT | |
D0 | [PC100] | (1) | |||||
D1 | 1 | A | B | C | (1) | D | E |
D2 | 2 | 2nd | INV | lnx | (1) | CE | CLR |
D3 | 3 | LRN | sin | cos | (1) | tan | x√y |
D4 | 4 | GTO | STO | RCL | (1) | SUM | YX |
D5 | 5 | SBR | EE | ( | (1) | ) | ÷ |
D6 | 6 | INS | (1) | × | |||
D7 | 7 | SST | (1) | − | |||
D8 | 8 | HLT | (1) | + | |||
D9 | 9 | RUN | . | (1) | +/− | = | |
D10 | 0 | [CS](1) | |||||
D11 | (1) | ||||||
D12 | (ADV) | (PRT) | (1) | ||||
D13 | (1) | ||||||
D14 | (1) | [R-D] | |||||
D15 | [TRC] | (1) |
Notes: The R-D switch of the SR-52 is detected with a diode between D14 - KS and its Card Sense switch with a diode between D10 - KR. The PC-100 is detected with a diode between D0 - KP and the (PRT), (ADV) and [TRC] nodes are used to detect PRINT, PAPER ADVANCE and TRACE on the PC-100. The BUSY output of the TMC0251 Printer/Display Chip used with the PC-100 and PC-100A is connected to KR(1) and consequently active during all 16 Digit Times D0 to D15.
If you have additions to the above datasheet please email: joerg@datamath.org.
© Joerg Woerner, February 02, 2001. No reprints
