Additional Pictures

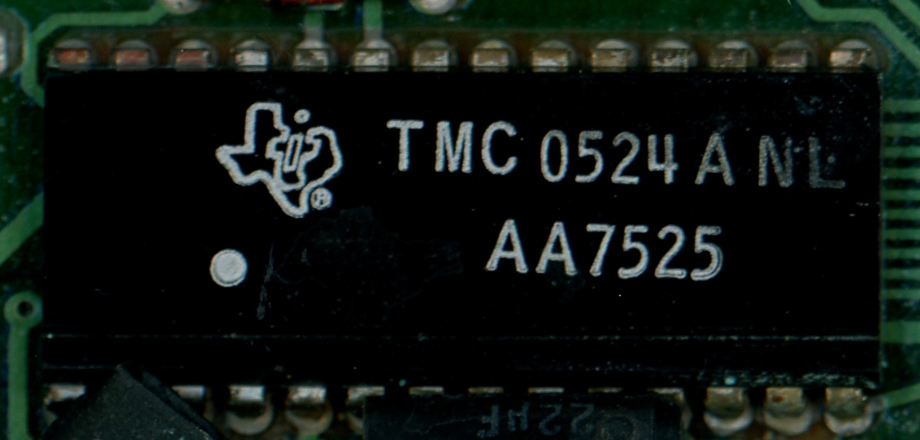

Close-up view of the TMC0524 SCOM (Scanning and Read-Only Memory) Chip used with the SR-52.
PMOS Technology, 28-pin DIP 1,024*13 Bits Instruction ROM with serial interface to Arithmetic Chip,
16 Constants and 2 Registers with 16 digits, and 16-digit display scanning.
