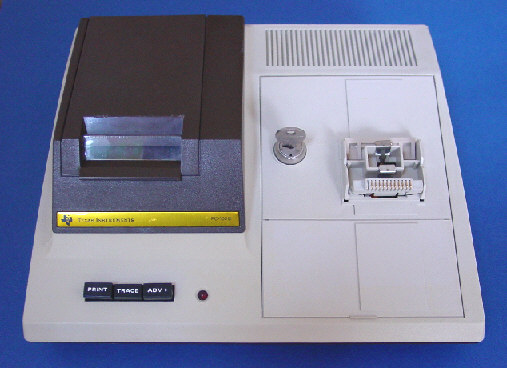

Texas Instruments PC-100B cradle

Date of introduction:  1978 Display technology:
New price:   Display size:
Size:  10.4" x 11.3" x 4.1" Printer technology:  Thermal
Weight:  5 pounds 7 ounces Serial No:  9149229
Batteries:   Date of manufacture:  mth 16 year 1978
AC-Adapter:  120 V or 240 V Origin of manufacture:  Netherland
Precision:   Integrated circuits:  TMC0251, TMC0561, TMC0569
Memories:
Program steps:   Courtesy of:  Joerg Woerner

The PC-100B cradle seems to be a strip-down PC-100A. PC-100B_1.jpg (7501 Byte) In the battery compartment you'll notice a small metal plate instead the selection switch between the SR-52, SR-56 and Others.

PC-100B_2.jpg (9370 Byte)If you lift off the metal plate the description of the switch will appear!

PC-100B_3.jpg (8711 Byte)The PC-100B was replaced soon with the PC-100C.

The printed circuit board (PCB) is marked with:

CPX-1
1014859-6 K
ASSY 1014858

This is identical to an early PC-100A cradle.

American Micro Products introduced with the Module Selector a very interesting product fitting into the charging bay of the PC-100B printer cradle.

Printer paper:

The thermal paper used with this printer (TP-30250 2-1/2" wide and 14 Feet length) was discontinued long time ago. In 2008 Appleton (Appleton, WI) manufactured with the Alpha 800-2.4 paper still a compatible paper.

horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, January 3, 2002. No reprints without written permission.
