Texas Instruments TI-83 Plus (France)

Date of introduction:  June 2006 Display technology:  LCD dot matrix
New price:  EUR 104.99   Display size:  8 * 16 characters
Size:  7.2" x 3.2" x 0.80"
 182 x 81 x 20 mm3
Weight:  6.4 ounces, 182 grams Serial No:  2774016729
Batteries:  4*AAA + CR1620 (35mA) Date of manufacture:  mth 08 year 2006 (K)
AC-Adapter:   Origin of manufacture:  China (S)
Precision:  14 Integrated circuits:  ASIC: TI REF TI-738X
 Flash: S29AL004D70
 Display: Toshiba T6K04
Program steps:  24k Bytes, 160k Bytes Flash ROM Courtesy of:  Joerg Woerner

Texas Instruments introduced the original TI-83 Plus already in 1999 as the successor of the TI-83. It was an immediate success on the market and it was for a long time frame the best selling graphing calculator in the US and Canada. Texas Instruments reported more than 2,000,000 shipped units in 2000!

In the fast moving world of electronics and manufacturing technology it was for sure that we will see a lot of improvements of the TI-83 Plus till its discontinuation. In 2008 the TI-83 Plus is still available in the shelves of the US and European stores and we recently acquired a whole bunch of them:

• A light blue TI-83 Plus manufactured in April 2007 by Nam Tai Electronics, Inc. in China
    for the US retailer Target.

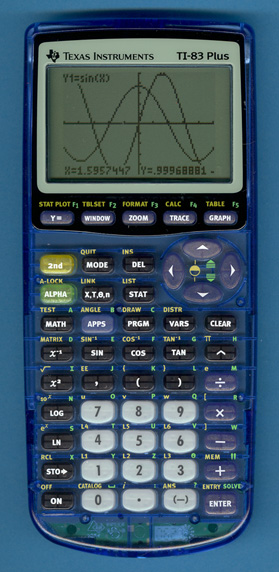

This translucent blue TI-83 Plus manufactured in August 2006 by Inventec, Inc. in China
    for the French market.
A translucent blue TI-83 Plus manufactured in April 2007 by Inventec, Inc. in China
    for the French market and its pink sibling manufactured in July 2007.

Comparing these 2006/2007 manufactured calculators with the original design reveals a lot of internal differences.

The original design of the TI-83 Plus made use of 5 main Integrated Circuits:

• Zilog Z84C00 microprocessor
• TI REF 9815455 ASIC
• 512k Bytes Flash ROM
• 32k Bytes Static RAM
• Toshiba T6A04A: Single-chip 64*120 pixel display driver

The new designed printed circuit board (PCB) needs just 3 Integrated Circuits:

• ASIC: Z80 microprocessor, RAM and supporting logic
512k Bytes Flash ROM
Single-chip 64*120 pixel display driver

There are minor differences between the components located in the different production batches:

Manufacturer Date code ASIC Flash ROM Display Driver
Inventec August 2006 TI-738X Spansion S29AL004 Toshiba T6K04
Inventec April 2007 TI-738X Spansion S29AL004 Novatek NT7564H
Nam Tai April 2007 Chip-On-Board Macronix MX29LV400 Novatek NT7564H

The picture on the right gives an enhanced view of the ASIC "TI-REF TI-738X" that clocks the Z80 microprocessor with 6 MHz and incorporates the 32k Bytes RAM and some supporting logic. Learn more about the Hardware Architecture of TI’s Graphing Calculators. The ASIC was probably manufactured by Toshiba and recalls us the TI-83 Plus Silver Edition with the "TI-REF 83PL2M/TA2" ASIC and the early TI-84 Plus with its "TI-REF 83PLUSB/TA2" ASIC. This ASIC "TI-REF TI-738X" was obviously used in the revised TI-73 Explorer, too.

A component not easily detected on the printed circuit board (PCB) of the TI-83 Plus is the driver circuit of the LC-Display. It is just a bare chip mounted on a flexible piece of circuit board attached between the display and the main PCB.

A serial port of the calculators allows the connection to the Calculator-Based Laboratory system CBL, its successor CBL 2, the Calculator-Based Ranger CBR and its successor CBR 2.

Texas Instruments France introduced in 2008 the TI-83 with not only translated menues but even keys and discontinued the TI-83 Plus.


1.19 (January 16, 2006, actual in February 2008)

You can check the ROM version of your TI-83 Plus using the following key sequence and reading the number on your screen:

[2nd] [MEM] [1]

Information provided by and Xavier Andrιani.

Exam acceptance:

The TI-83 Plus is permitted (as of September 27, 2007) for use on SAT, ACT, PSAT and AP exams.
