Texas Instruments TI-5225

Date of introduction:  1977 Display technology:  Fluorescent
New price:   Display size:  12
Size:  12.0" x 12.3" x 3.3" Printer technology:  Thermal
Weight:  6 pounds 2 ounces Serial No:  0207647
Batteries:   Date of manufacture:  year 1977
AC-Adapter:  120 V or 220 V Origin of manufacture:  USA
Precision:  12 Integrated circuits:  TMS1312, TMS1372 (ZA0396), 3*SN96912
Memories:  1 + 1
Program steps:   Courtesy of:  Joerg Woerner

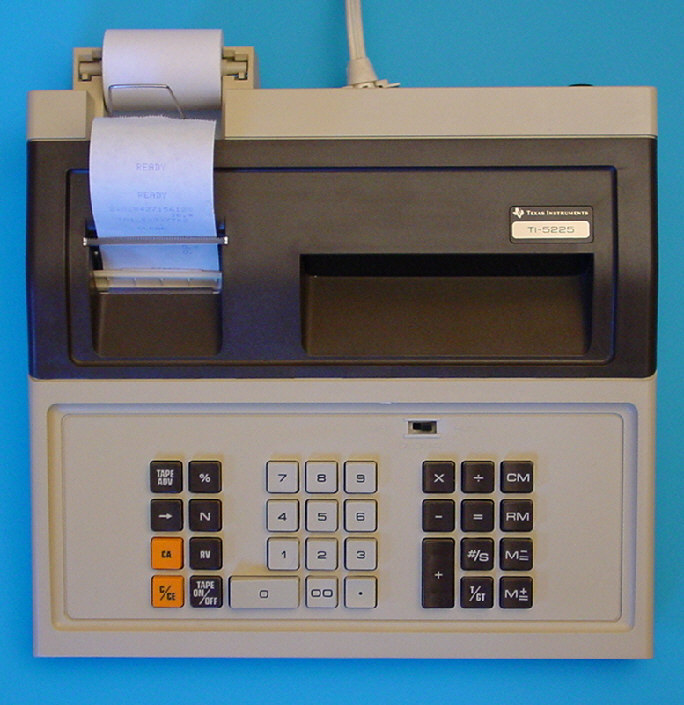

This huge desktop printing calculator is a sibbling of the neat TI-5220 based one the earlier TI-5040.

TI-5225_1.jpg (153252 Byte)Dismantling the TI-5225 reveals some known components and a typical Texas Instruments construction. The keyboard module is similiar to the TI-3500 introduced already in 1972 and the printer is borrowed from the PC-100 printing cradle sold together with the SR-52.

TI-5225_PCB.jpg (155443 Byte)The printed circuit board (PCB) makes use of two enhanced devices of the famous
TMS1000 Microcomputer family. We know similiar chips already from the related TI-5220, a sibbling of the TI-5040. PC-100 printing cradle sold together with the SR-52 and the TMC0261 of the TI-5040.

An enhanced version of the TI-5225 was introduced with the odd TI-5230.

Printer paper:

The thermal paper used with this printer (TP-30250 2-1/2" wide and 14 Feet length) was discontinued long time ago. In 2008 Appleton (Appleton, WI) manufactured with the Alpha 800-2.4 paper still a compatible paper.
