DATAMATH CALCULATOR MUSEUM |
Texas Instruments Fixed Income Securities SIA (Pre-series)
Date of introduction: | May 1989 | Display technology: | LCD multi segment |
New price: | Display size: | 3+12 * 6 lines | |
Size: | 6.9" x 3.1" x 0.65" 174 x 78 x 17 mm3 |
||
Weight: | 6.1 ounces, 172 grams | Serial No: | 25087 |
Batteries: | 2*CR2032 | Date of manufacture: | wk 11 year 1989 |
AC-Adapter: | Origin of manufacture: | Italy | |
Precision: | 13 | Integrated circuits: | TMC70035, LH5821, LH5164, TC54256 |
Memories: | 10 | ||
Program steps: | Courtesy of: | Joerg Woerner |

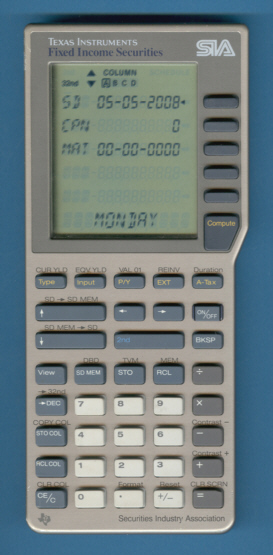

This
Fixed Income Securities (FIS) calculator introduced by Texas Instruments in May
1989 was purchased by auction in May 2008. Usually we don't like scratches or
even carvings on calculators but this one sports a promising "PROTO
10" signature on its backside. The calculator itself looks identical to any
later Fixed Income Securities models and working through
the 10 worksheets revealed no differences, either.
In
a next step we disassembled the calculator and the printed circuit board (PCB)
confirmed the first impression: This Fixed Income Securities calculator seems to
be indeed an early prototype! Usually pre-series calculators have some
modifications that were solved in a later stage but this FIS took it vice versa.
The PCB looks exceptionally clean and misses the blue-wire and additional
capacitor north of the LH5164 RAM. The
TC54256 OTP-EPROM was tested apparently May 19, 1989, probably just days
before the introduction of the calculator. The PCB itself is labeled REV.A /
2-89 while later models REV.I / 15-89 and REV. L / 35-90 document a lot of
changes during the approximately 3 years of production cycle.
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, May 8, 2008. No reprints without written permission.
