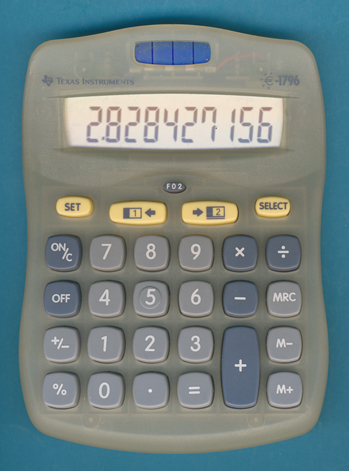

Texas Instruments €-1796 Prototype
Date of introduction: | never | Display technology: | LCD |
New price: | Display size: | 10 | |
Size: | 5.7" x 4.3" x
1.0" 145 x 109 x 25 mm3 |
||
Weight: | 3.9 ounces, 111 grams | Serial No: | A201783 |
Batteries: | LR54 | Date of manufacture: | 1999 |
AC-Adapter: | Origin of manufacture: | China (N) | |
Precision: | 10 | Integrated circuits: | |
Memories: | 1 | ||
Program steps: | Courtesy of: | Joerg Woerner |
The
€-1796 calculator was introduced 2000 in a dark, translucent housing.
Nevertheless displayed the Texas Instruments website in the 2000-2003 timeframe a white housing like the
TI-1796SV. This Prototype of the €-1796 gives
us a good understanding how the original design looked.
Dismantling
this €-1796 manufactured probably around 1999 by Nam Tai
Electronics in China reveals a clean design centered around an unknown
single-chip calculator circuit mounted in Chip-on-Board (COB) technology on a
small double-sided printed circuit board (PCB) and powered by small solar cells.
A larger, single-sided PCB is used for the keyboard and connected with a short
flat flexible cable (FFC). Nam Tai introduced this technology for Texas
Instruments' Desktop Calculator Line in 1996 with the
TI-1795+.
In 2006 Texas Instruments surprised customers in Europe with a
complete new family of Euro Calculators labeled EC-3,
EC-5 and EC-7 Pro.
