Texas Instruments BA-20 Profit Manager (2000)
Date of introduction: | June 2000 | Display technology: | LCD |
New price: | $24.99 (SRP 2003) | Display size: | 10 |
Size: | 4.7" x 5.0" x
0.80" 120 x 128 x 20 mm3 |
||
Weight: | 3.9 ounces, 110 grams | Serial No: | |
Batteries: | n.a. | Date of manufacture: | mth 04 year 2000 (A) |
AC-Adapter: | Origin of manufacture: | China (S) | |
Precision: | 10 | Integrated circuits: | Inventa LI3163 |
Memories: | 1 | ||
Program steps: | Courtesy of: | Joerg Woerner |
Texas
Instruments introduced in the United States with the BA-20
Profit Manager already in the year
1986 a very useful calculator.
Beside the basic calculator functions 6 additional keys enable the COST, SELL,
MARGIN calculations. You enter either two of the variables and get instantly the
result of the remaining value.

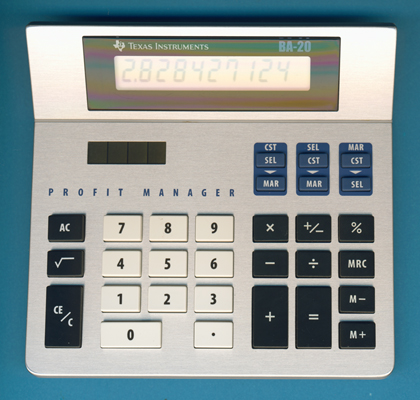

Dismantling this BA-20 Profit Manager manufactured in
April 2000 by Inventec Corporation in
Shanghai, China
reveals a clean design centered around an Inventa LI3163 single-chip calculator
circuit soldered on a double-sided printed circuit board (PCB) and powered by
four solar cells. We suspect that
Inventa Electronics designed a replacement for the obsolete Sharp LI3163
chip of the previous generation BA-20 Profit Manager or licensed its design.

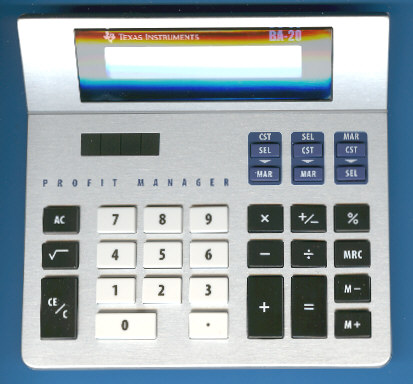

Please notice the confusing "Revisions" of the two otherwise identical BA-20
Profit Manager calculators, one manufactured in April 2000 with Revision A (Date
code S-0400A) and one with Date code S-0500 and a blank revision field.
Inspecting
the PCB of this BA-20 Profit Manager calculator brought our attention to a small mark reading
BA20 PCB VER0.3, we spotted similar PCB-Marks already with the
previous versions of the BA-20 Profit manager and started compiling a list of the
PCB-Marks on calculators manufactured by OEMs for Texas Instruments.
In Europe a very similar calculator was sold as TI-620.
An earlier version of the BA-20 sports an integrated clock like the European TI-610. In August 2002 the design of the BA-20 Profit Manager was slightly changed to allow the usage of larger solar cells.
