DATAMATH  CALCULATOR  MUSEUM

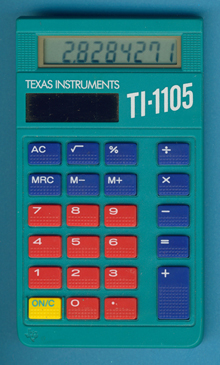

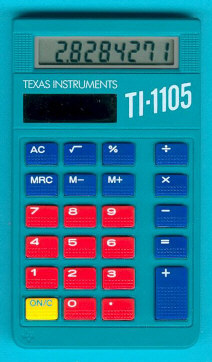

Texas Instruments TI-1105 (First Design, Turquoise)

Date of introduction:  1987 Display technology:  LCD
New price:   Display size:  8
Size:  4.3" x 2.5" x 0.40"
 110 x 64 x 10 mm3
Weight:  1.5 ounces, 44 grams Serial No:
Batteries:  n.a. Date of manufacture:  mth 07 year 1987 (A)
AC-Adapter:   Origin of manufacture:  Taiwan (I)
Precision:  8 Integrated circuits:
Memories:  1
Program steps:   Courtesy of:  Joerg Woerner

Bold and lively colors, large keys, solar and lots of functionality - this is the marketing description of the TI-1105 introduced in 1987. It was sold together with three Number 2 lead pencils and and eraser as "Cool Calc" for the Back-to-School 1987/88 campaign.

Three different colors were introduced:

• TI-1105 Turquoise
• TI-1105 Magenta
• TI-1105 Dark Blue

Dismantling this TI-1105 manufactured in July 1987 by Inventec Corporation in Taiwan reveals a clean design centered around an unknown single-chip calculator circuit soldered on a double-sided printed circuit board (PCB) and powered by four solar cells.

Inspecting the PCB of this TI-1105 calculator brought our attention to a small mark reading IOTI1105-01C and we started compiling a list of the PCB-Marks on calculators manufactured by OEMs for Texas Instruments.

The second generation of the TI-1105 added the [+/-] key of the TI-108.

horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, December 5, 2001. No reprints without written permission.
