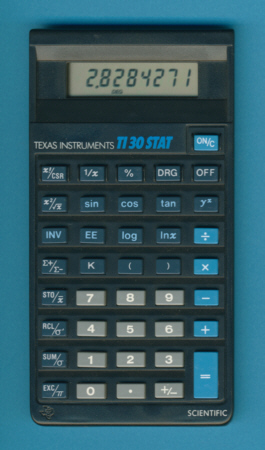

Texas Instruments TI-30 STAT
| Date of introduction: | 1987 | Display technology: | LCD |
| New price: | $16.00 (SRP 1988) | Display size: | 8 (5 + 2) |
| Size: | 5.3" x 2.8" x 0.45" 135 x 71 x 11 mm3 |
||
| Weight: | 2.1 ounces, 60 grams | Serial No: | |
| Batteries: | 2*LR44 | Date of manufacture: | wk 15 year 1987 |
| AC-Adapter: | Origin of manufacture: | Italy | |
| Precision: | 11 | Integrated circuits: | TP0456/CD4557A |
| Memories: | 1 | ||
| Program steps: | Courtesy of: | Joerg Woerner | |
| Download manual: |
(US: 4.9M Bytes) |
The
TI-30 STAT followed the TI-30 III. We know the
electronics from the slimline TI-35. A
similar calculator was introduced one year earlier with the TI-30. Don't
miss the rare TI-18 SLR using a similar housing.
One year later the TI-30 STAT got a more colorful styling.
An overview of the seven different versions known today could be found here.
If you are interested in the calculating accuracy of
scientific calculators don't miss the Calculator
forensics.
The
TP0456/CD4557A used in this calculator could be traced back to the SR-16
with the TMS1001 - the first LSI MOS
chip of the TMS1000
family. The picture at the right gives you a comparison between the modern
CMOS design of a TI-30 STAT and the original PMOS design used in the SR-16.
In the meantime we located a BA-35 Business Analyst manufactured in 1996 using a CD4571B, based on the TMS1000 family, too.
