Additional Pictures

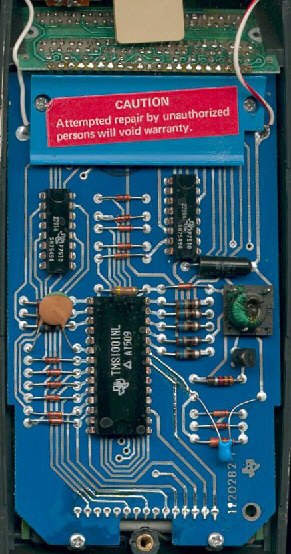

| An early
SR-16 with only two digit drivers.
|

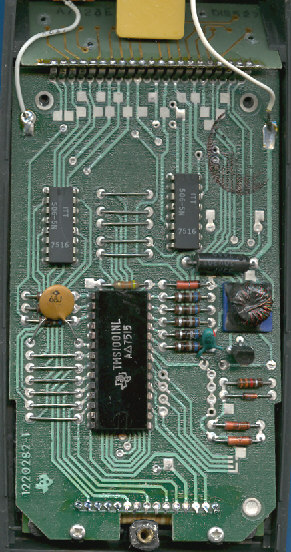

A later
SR-16 with a whole bunch of additional diodes.
|

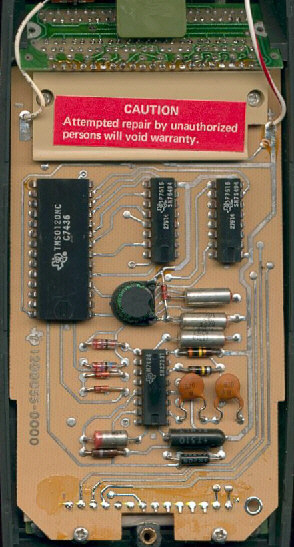

A later SR-10
with a similar arrangement of the components for your reference.  |
|

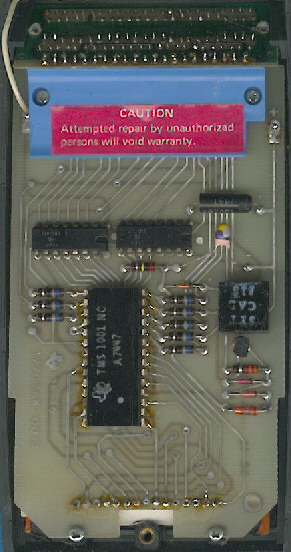

| First TMS1000 in a SR-16
introduced in the year 1974 and a late "TP0456 Single-chip calculator IC" based on the CMOS version of the TMS1000.
|
The
final design of the SR-16 replaced lots of components by simple wires. Please notice the different display type.
|
||
If you have additions to the above article please email: joerg@datamath.org.
