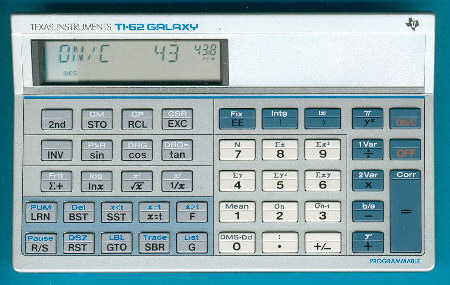

Texas Instruments TI-62 Galaxy

Date of introduction:  1986 Display technology:  LCD
New price:   Display size:  10 + 2
Size:  3.5" x 5.7" x 0.8"
Weight:  4.0 ounces Serial No:
Batteries:  2*LR44 Date of manufacture:  wk 29 year 1987
AC-Adapter:   Origin of manufacture:  Italy
Precision:  13 Integrated circuits:  CD4810, CD4811
Memories:  1-10
Program steps:  100-42 Courtesy of:  Joerg Woerner

The TI-62 Galaxy is a quite interesting calculator within the Galaxy-line. In addition to the functions of e.g. a TI-37 Galaxy it adds the programmability of a TI-57-II.

From the technology use this calculator is an interesting composition:

Housing similar to the Galaxy
Keys like the later TI-68
Calculator chips from Texas Instruments, not Toshiba

Galaxy62_PCB.jpg (568001 Byte)Dismantling this TI-62 Galaxy manufactured in July 1987 by Texas Instruments in Rieti, Italy reveals an interesting design based on a two TP0485 Microcontroller used in a Master-Slave Architecture known from the second generation slanted TI-60 calculator introduced in the same year.

One year later Texas Instruments introduced the black TI-65 Technical Analyst using a dark grey housing.

If you are interested in the calculating accuracy of scientific calculators don't miss the Calculator forensics.




horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, December 5, 2001. No reprints without written permission.
