Solid State Software Modules™

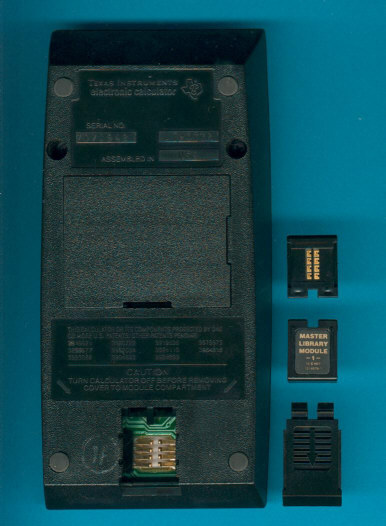

The TI-58 and TI-59 calculators introduced a novelty, the Solid State Software Modules™ with up to 5000 program steps. On the backside of the TI-58/59 you'll note a small lid with a place for a module.

The Master Library, known as "Module -1-", with 25 different programs was included with the TI-58, TI-58C, and TI-59. Twelve additional Solid State Software Modules™, known as "Module -2- to -13-" were available from Texas Instruments as Standard Modules.

Due to the innovative module concept this calculator was used a lot for application specific purposes. To give an idea of this products view the six insurance fee calculators from Agrippina, Allianz , Lloyd, LVM, Nordstern, and Victoria. Don't miss the Bossard, CAL-Q-TAX, EDF, incotax, tax planner, SOVAC and Chrysler calculators. The Pool Water Analysis module used a standard TI-58C with a keyboard mask instead the customized keyboard arrangements of the above mentioned products, while the Kodak Q-700 Program Adapter used a snap-on protection cover for the TI-59. Some of these Commercial Applications were available as a complete solution including the calculator or just the plain Solid State Software Modules™.

We know some Government Applications, e.g. the USMC Harrier Flight computer and some odd modules for the M29 81mm Mortar labeled "Special Situation".

Don't miss the even greater program collection for the TI-59 resulting from the Professional Program Exchange (PPX-59) initiative started in 1978.

Using our DCM-0500 Platform developed for Recording of ROM Images from all ROM (Read-Only Memory) Chips of the TMS0500 Building Blocks for Scientific and Programmable Calculators, we started recently to document some of the the TMC0540 Customer ROMs used in the Solid State Software Modules. Find some ROM Images here including the partitioning of the TMC0540 CROM and the TI-58/TI-58C/TI-59 Keycodes.

The Solid State Software Modules™ are featured in the Texas Instruments Incorporated bulletins 1033659, 1105618 and 1103793 dated 1979, 1980 resp. 1981.
