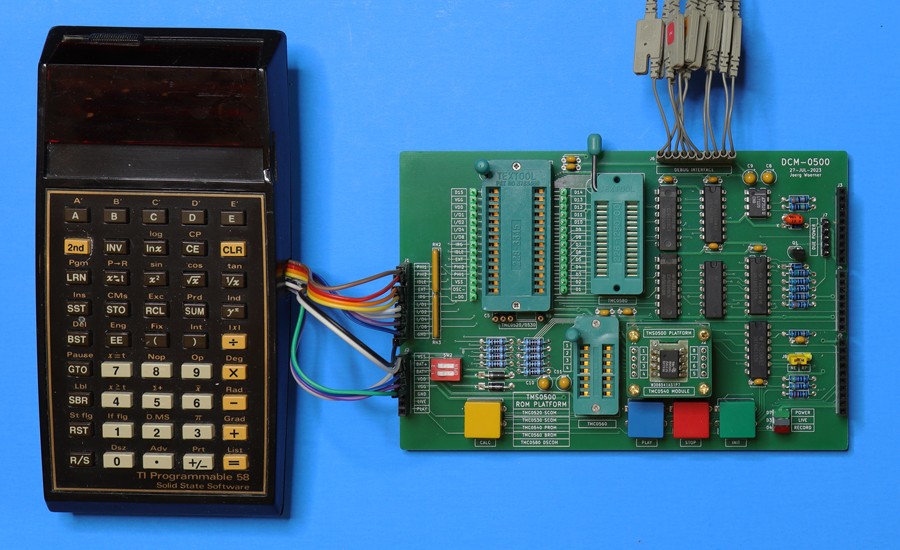

| The DCM-0500 in "Observe"
Configuration with a TI-58 Programmable connected to the West-Port of the TMS0500 ROM Platform and a Hewlett-Packard 54645D Mixed Signal Oscilloscope connected to the North-Port of the TMS0500 ROM Platform. East-Port is unused in this Configuration.
|
| The DCM-0500 in "Analyze"
Configuration with a SR-51A connected to the West-Port of the TMS0500 ROM Platform and a TMS0500 8-Channel Serial Data Recorder connected to the East-Port of the TMS0500 ROM Platform. North-Port is unused in this Configuration.
|

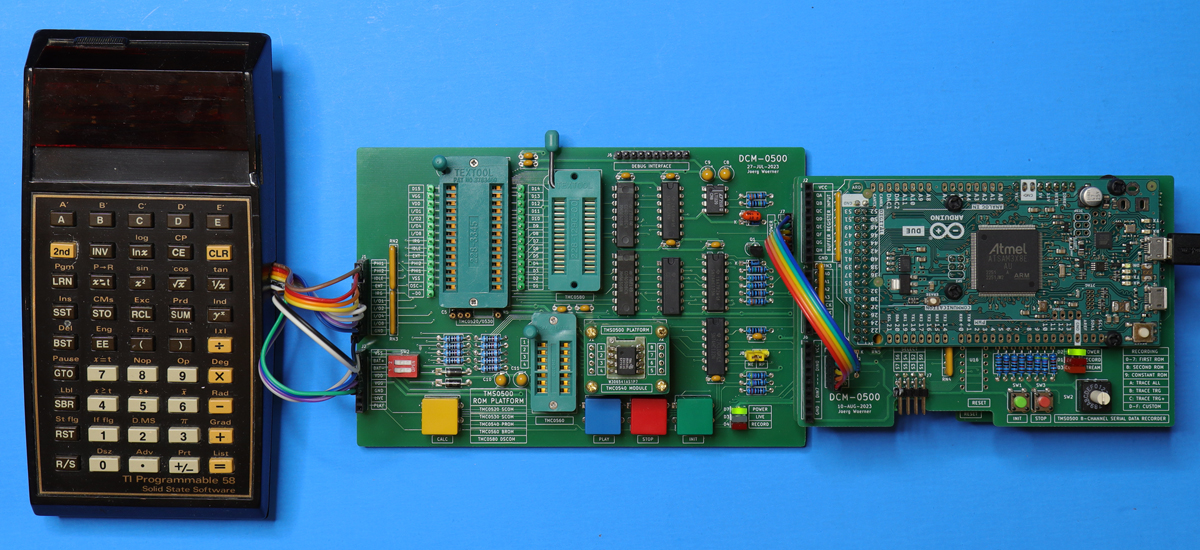

| The DCM-0500 in "Analyze"
Configuration with a TI-58 Programmable connected to the West-Port of the TMS0500 ROM Platform and a TMS0500 8-Channel Serial Data Recorder connected to the East-Port of the TMS0500 ROM Platform. North-Port is unused in this Configuration.
|

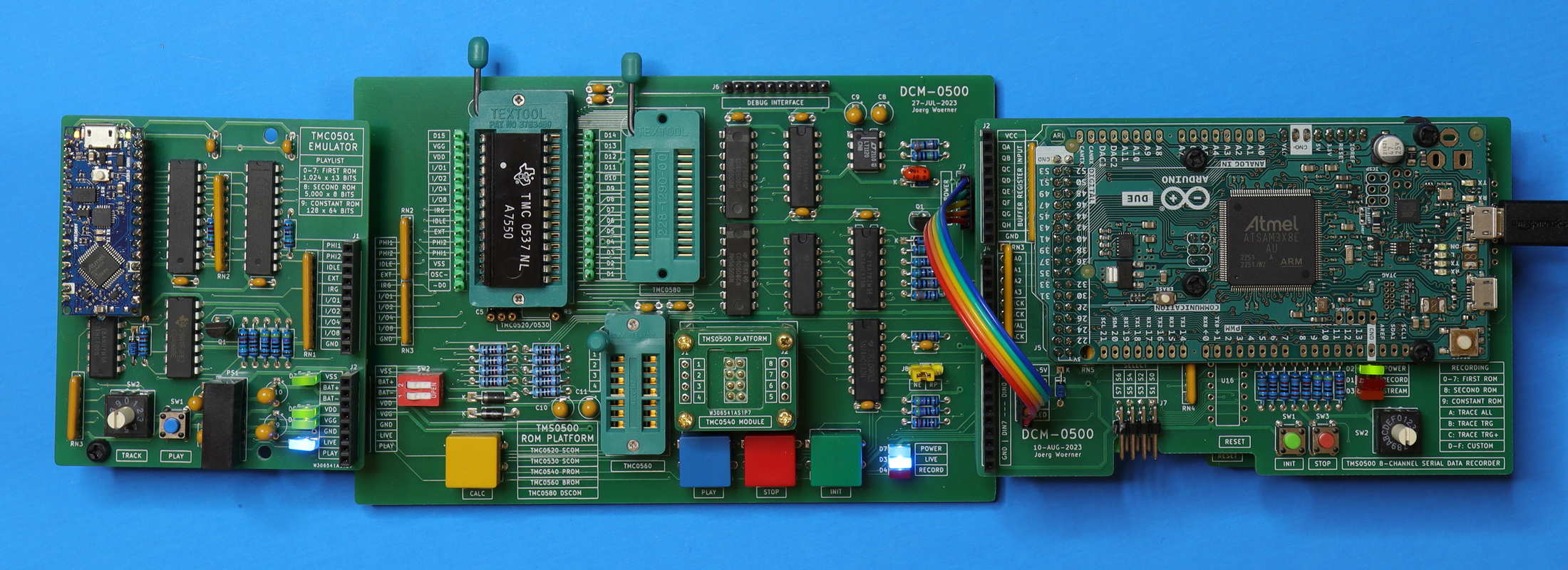

| The DCM-0500 in "Deploy"
Configuration with a TMC0501 Emulator connected to the West-Port of the TMS0500 ROM Platform and a TMS0500 8-Channel Serial Data Recorder connected to the East-Port of the TMS0500 ROM Platform. North-Port is unused in this Configuration.
|
