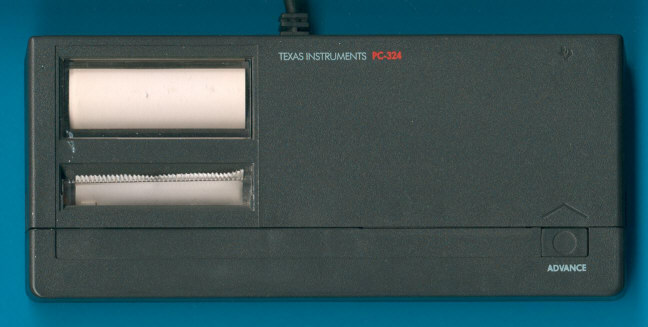

Texas Instruments PC-324 Printer

Date of introduction:  1986 Display technology:
New price:  $115.00 (SRP 1988) Display size:
Size:  3.6" x 8.0" x 1.2"
 92 x 204 x 31 mm3
Printer technology:   Thermal TP-324
Weight:  11.1 ounces, 314 grams Serial No:  0045269
Batteries:  4*AA Date of manufacture:  mth 38 year 1989
AC-Adapter:  AC9201 Origin of manufacture:  USA (LTA)
Precision:    Integrated circuits:  CPU: TMC70016
Memories:
Program steps:   Courtesy of:  Joerg Woerner
    Download manual:   (US: 2.6M Bytes)
  (EU: 8.4M Bytes)

Texas Instruments introduced in 1986 with the TI-74 BASICALC the successor of the Compact Computer System CC-40 and used the platform for the TI-95 PROCALC, a very powerful programmable calculator.

The battery operated, 24-column thermal printer PC-324 connects with the Dock-Bus to both the TI-74, it's OEM version TI-74S and the TI-95.

Dismantling this PC-324 manufactured in September 1989 by Texas Instruments in their Lubbock, Texas facility, reveals a clean design centered with just two main components:

CPU (Central processing Unit): The Texas Instruments TMC70016 microcomputer is a member of the TMS7000 family manufactured in CMOS technology. The original design of the TMS7000 series was introduced in 1981 as an 8-bit extension of the TMS1000 Family to compete with the Intel i8051, Motorola M6801, and Zilog Z8 parts. The first chips sported 128 Bytes of on-chip RAM (Random Access Memory) and either 2k Bytes or 4k Bytes of ROM (Read Only Memory). Later versions, e.g. the TMS70C46 used with this PC-324 printer, integrate 128 bytes of RAM, 4k Bytes of ROM and add some features like wake-up on key press and the Dock-Bus interface to the TMS70C40.

Printer Driver: The PC-324 makes use of a Sanyo LB1256, combining 7 high-current, low-saturation output drivers for the thermal elements of the print head and a motor driver for the printer mechanism.
