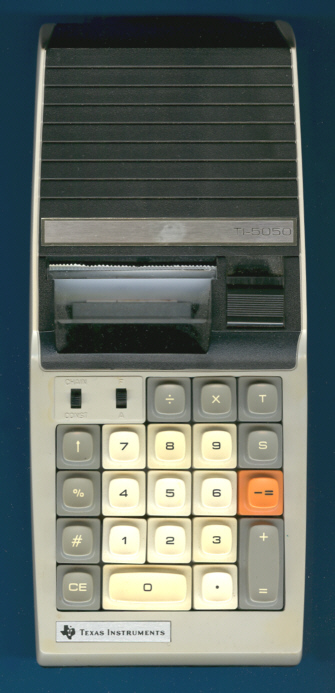

Texas Instruments TI-5050
Date of introduction: | March 1975 | Display technology: | |
New price: | $199.95, DM 748.00 | Display size: | n.a. |
Size: | 8.6" x 3.9" x 2.5" 218 x 98 x 63 mm3 |
Printer technology: | Thermal TP-20225 |
Weight: | 28.2 ounces, 802 grams | Serial No: | 71809 |
Batteries: | 6*AA NiCd | Date of manufacture: | wk 43 year 1975 |
AC-Adapter: | AC9170 | Origin of manufacture: | USA |
Precision: | 10 | Integrated circuits: | TMC1014, TMS1214 |
Memories: | |||
Program steps: | Courtesy of: | Joerg Woerner | |
Download manual: | (US: 2.3M Bytes) |
Yes, this calculator is called the first handheld printing calculator by Texas Instruments. There are great differenced between the first calculator based on TI's thermal printer technology - the Canon Pocketronic - and the TI-5050. The first one used a serial printing method, writing one digit after the other, this one writes the results in a parallel manner.
The TI-5050 uses internal NiCd batteries to support the printing head with enough power. With the external charger alone you can't get the calculator to work.
Dismantling this TI-5050 manufactured in October 1975 by Texas Instruments in the USA reveals a designed centered around two members of the famous TMS1000 Microcomputer family. The first chip labeled TMC1014 is manufactured in PMOS (p-channel metal-oxide-semiconductor) technology similar to the original Canon Pocketronic and features 1k*8 Bits ROM plus 64*4 bits RAM in a 28-pin DIP (Dual In-line Package) housing while the second chip labeled TMS1214 adds to identical specifications two extra Output lines in a 40-pin DIP housing.
The TI-5050 was replaced soon with the TI-5050M sporting an additional memory and cutting the chip count into half. Interesting to learn that the TI-5050M uses different algorithm for basic math functions, a simple division of [2] [÷] [3] returns 0.666666667 instead 0.666666666.
The first really handheld printing calculator was introduced two years later with the TI-5025.
Don't miss the first printing desktop calculator, the TI-500 introduced already in 1974.
