Texas Instruments TI-1766 II (3rd design)
| Date of introduction: | 1988 | Display technology: | LCD |
| New price: | Display size: | 8 | |
| Size: | 4.6" x 2.5" x 0.35" 117 x 65 x 8 mm3 |
||
| Weight: | 1.8 ounces, 52 grams | Serial No: | |
| Batteries: | n.a. | Date of manufacture: | mth 08 year 1990 |
| AC-Adapter: | Origin of manufacture: | Malaysia (I) | |
| Precision: | 8 | Integrated circuits: | Toshiba T9731BU |
| Memories: | 1 | ||
| Program steps: | Courtesy of: | Joerg Woerner |

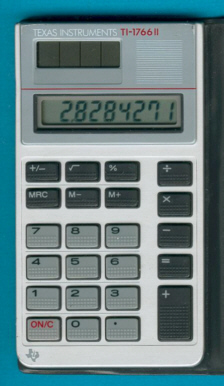

This
TI-1766 II introduced in 1988 and replacing the short-lived second design of
the TI-1706 II looks almost identical to the
original TI-1766 II introduced in 1986. A closer
look reveals a great surprise: The [AC] key was replaced with a [+/-] key.
This third
design of the TI-1766 II was manufactured both in Taiwan and
Malaysia, we assume that production was shifted around 1990 based on the ©
information located on the rear of the respective sales boxes.
Dismantling this TI-1766 II manufactured in September 1990 by Inventec
Corporation in Malaysia reveals a clean design centered around a Toshiba
T9731BU single-chip calculator circuit soldered on a double-sided printed
circuit board (PCB) and powered by four small solar cell.
The third generation
of the TI-1766 and
TI-1706 - named TI-1766 III and TI-1706
III - wiped out the exclusive flair of the TI-1766 and used similar housings.
The TI-1766+ introduced in 1996 brought finally the value proposition of the TI-1766 series back again.
If you have additions to the above article please email: joerg@datamath.org.
