Additional Pictures

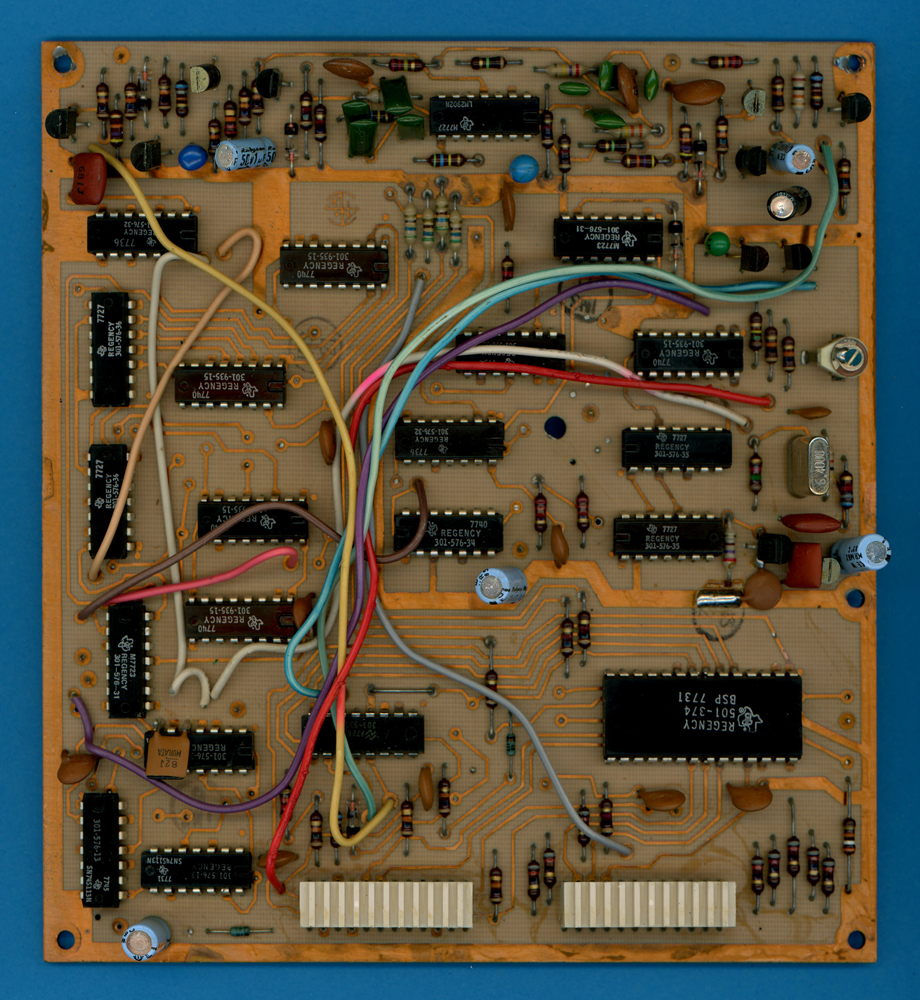

| The
Logic-PCB of the Regency Radio Scanner ACT-T16K with
the Regency 501-374 marked single-chip Microcontroller.
|

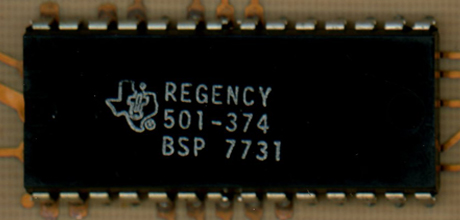

Close-up
view of the Regency 501-374 marked single-chip Microcontroller, actually a
TMS1116.
|
|

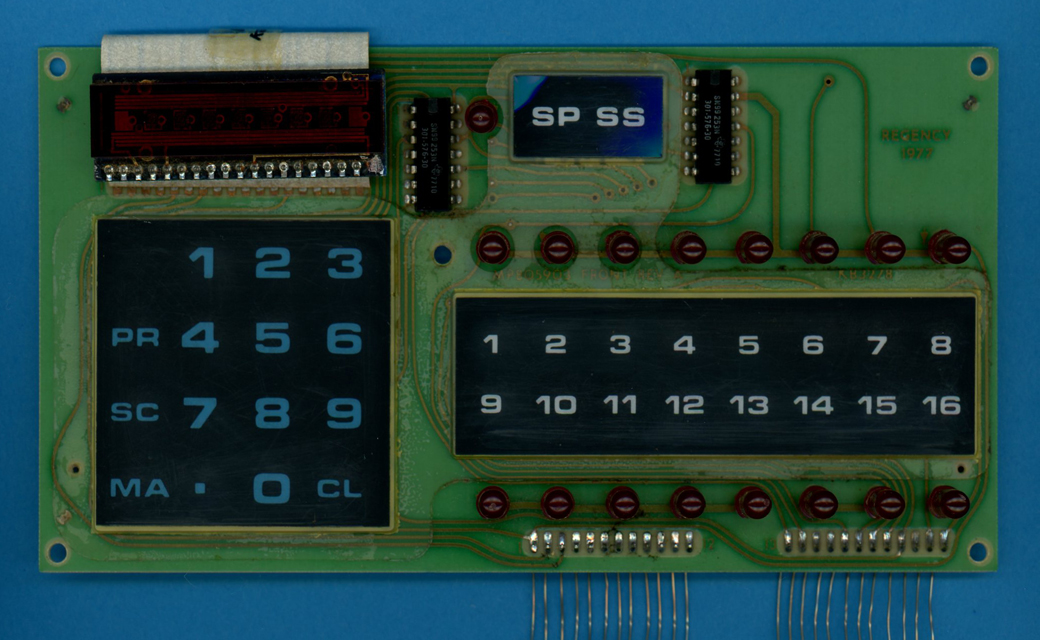

The Keyboard-PCB of the Regency Radio Scanner ACT-T16K with three small "Touch Keypads", the 7-digit LED display and 17 discrete LEDs with two SN99253 Digit Drivers.
|

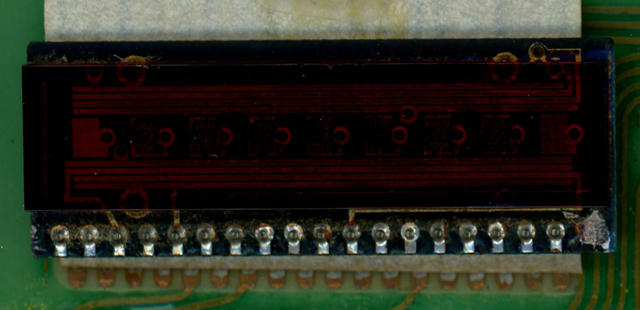

Close-up
view of the 9-digit LED NSA578 Display with the two outmost
positions not populated. |
|
Close-up
view of the two SN99253 Display Driver Chips.
|
If you have additions to the above article please email: joerg@datamath.org.
