Additional Pictures
| Complete Display

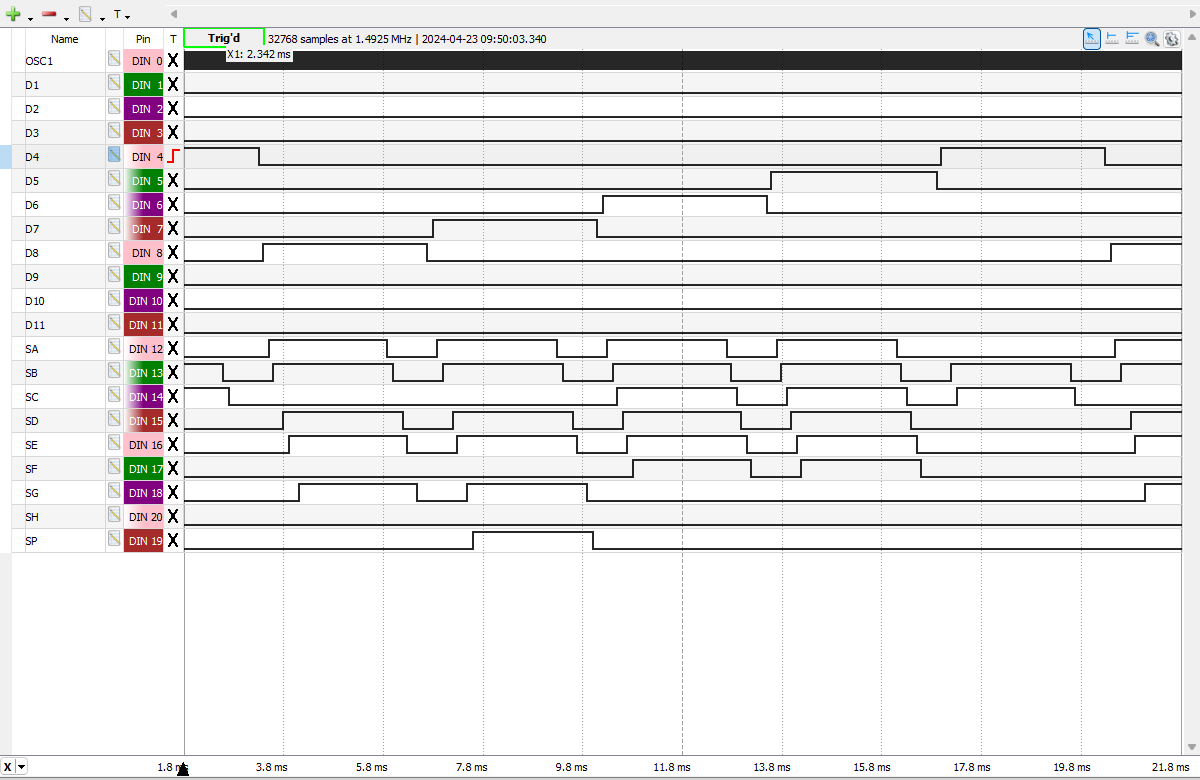

Scanning Cycle of the TMS3707NC used with the Philips AM/FM car radios Coupé Digital 890
and 894 displaying "22.001" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. Output D1 = Trace D8. TMS3707NC Clock Frequency set to 320 kHz.  |
| Close-up view of the
transition between Digit D2 (Trace D7) displaying "2" and Digit D6
(Trace D6) displaying "0" of the TMS3707NC showing the
staggered timing of the Segment deactivation and activation between two Digits.
|
Close-up view of the
timing between the activation of Segment B and
activation of Segment C of the TMS3707NC. |

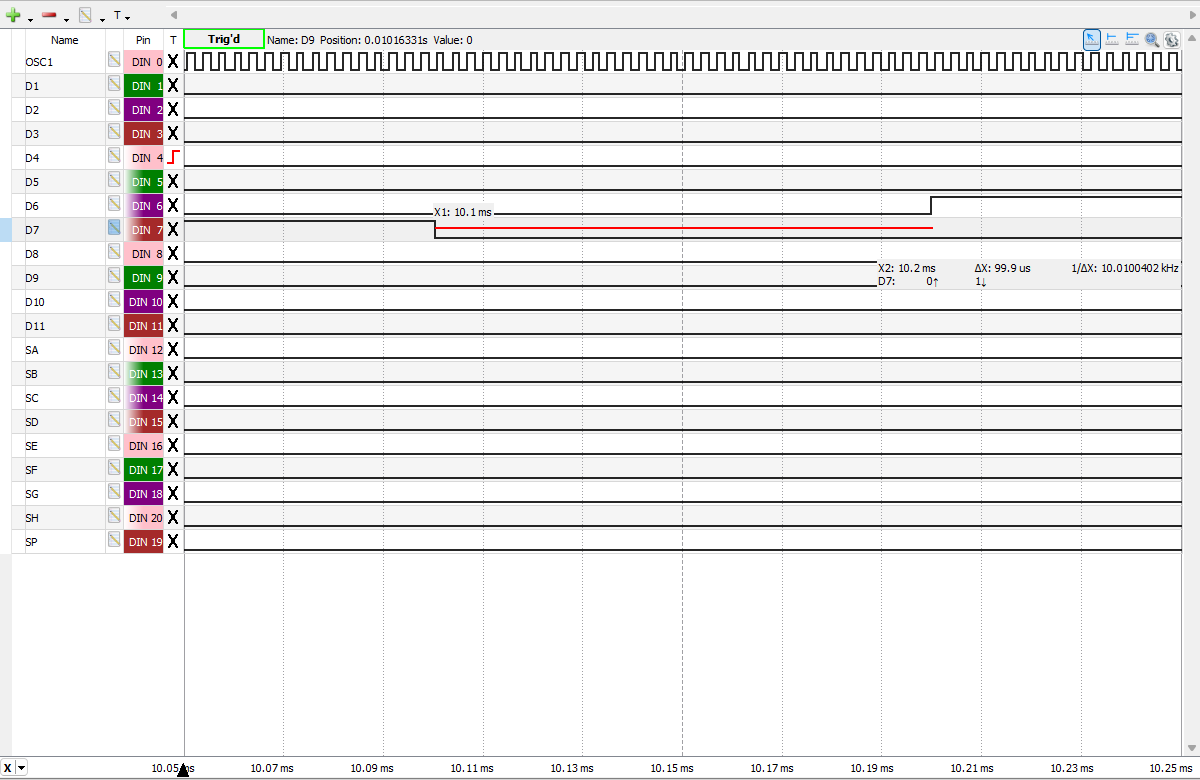

Close-up view of the
deactivation of Digit D2 (Trace D7) and
activation of Digit D6 (Trace D6) of the TMS3707NC. |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, April 30, 2024. No reprints without written permission.
