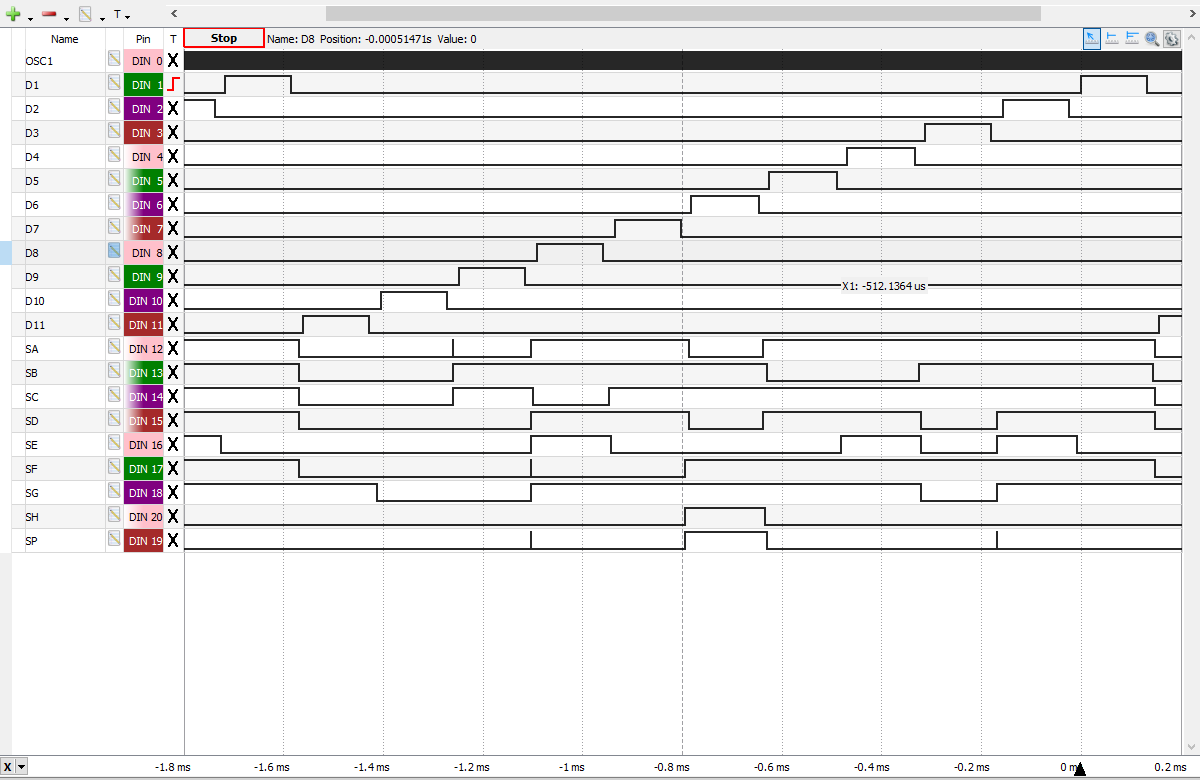

Complete Display Scanning Cycle of the TMS0121NC from a Olympia CD101 manufactured in June 1973 displaying "-1234.56789"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0101NC Clock Frequency set to 250 kHz.
Close-up view of the transition between Digit D9 displaying "1" and Digit D8 displaying "2" of the TMS0121NC showing the Leading and Trailing Digit Blanking Times.
