Additional Pictures

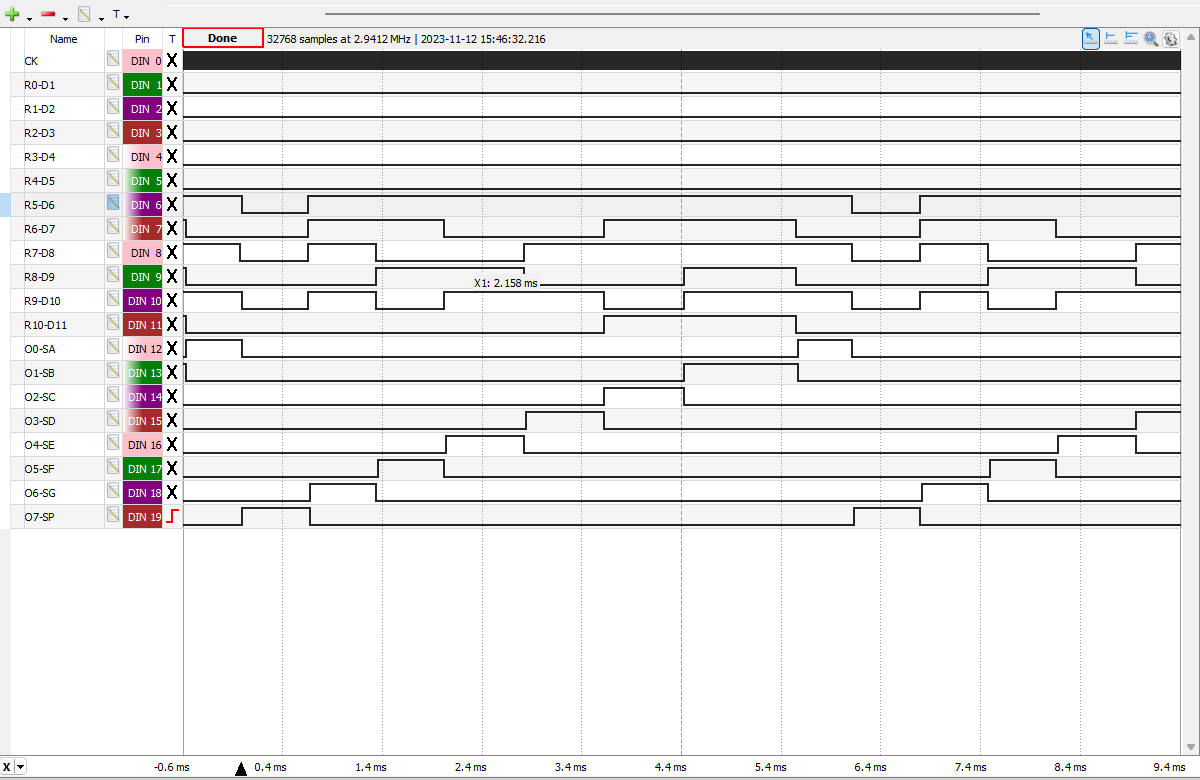

Complete Display Scanning Cycle of the TMC0907NL from a WIZ-A-TRON manufactured in June 1978 displaying "12+34="
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0907NL Clock Frequency set to 300 kHz.

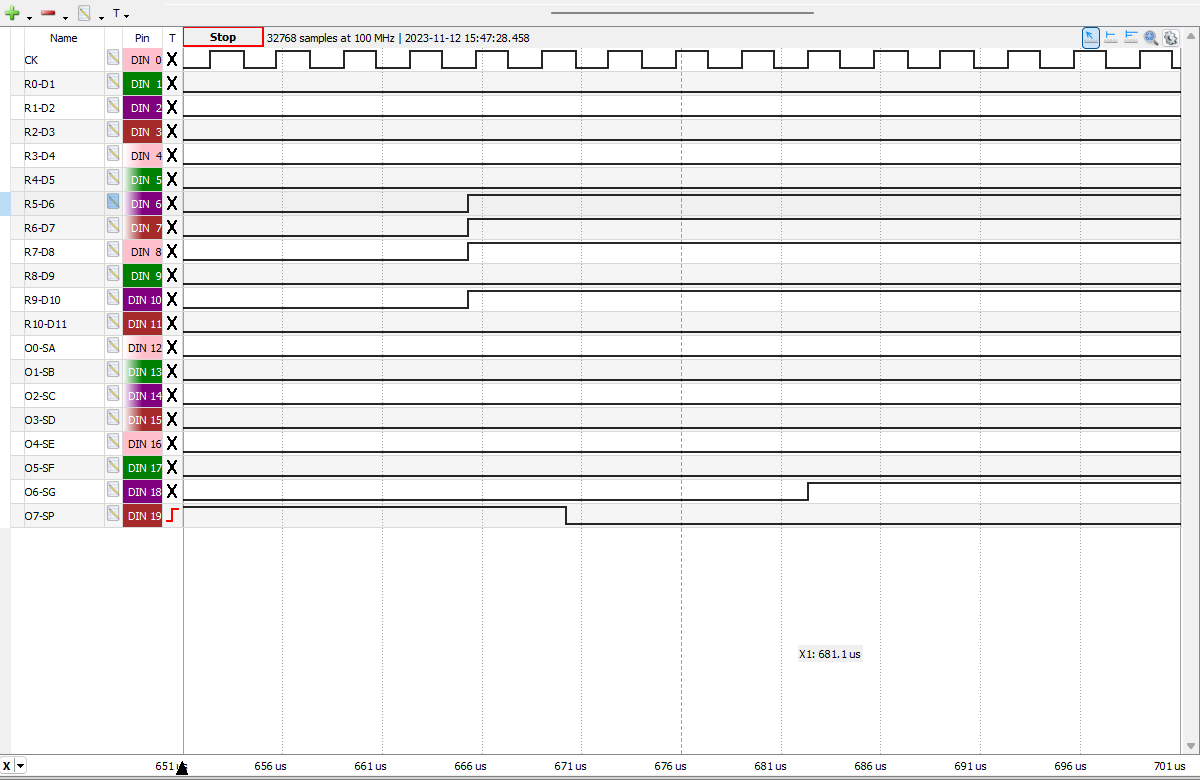

Close-up view of the transition between Segment Output O7 (DP) and Segment Output O6 (G) of the TMC0907NL showing the Leading and Trailing Segment Blanking Times.
