Additional Pictures



Complete Display Scanning Cycle of the AMI S2144 from a Melcor Model 1000 manufactured in October 1973 displaying "-1234.5678"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. S2144 Clock Frequency set to 50 kHz.

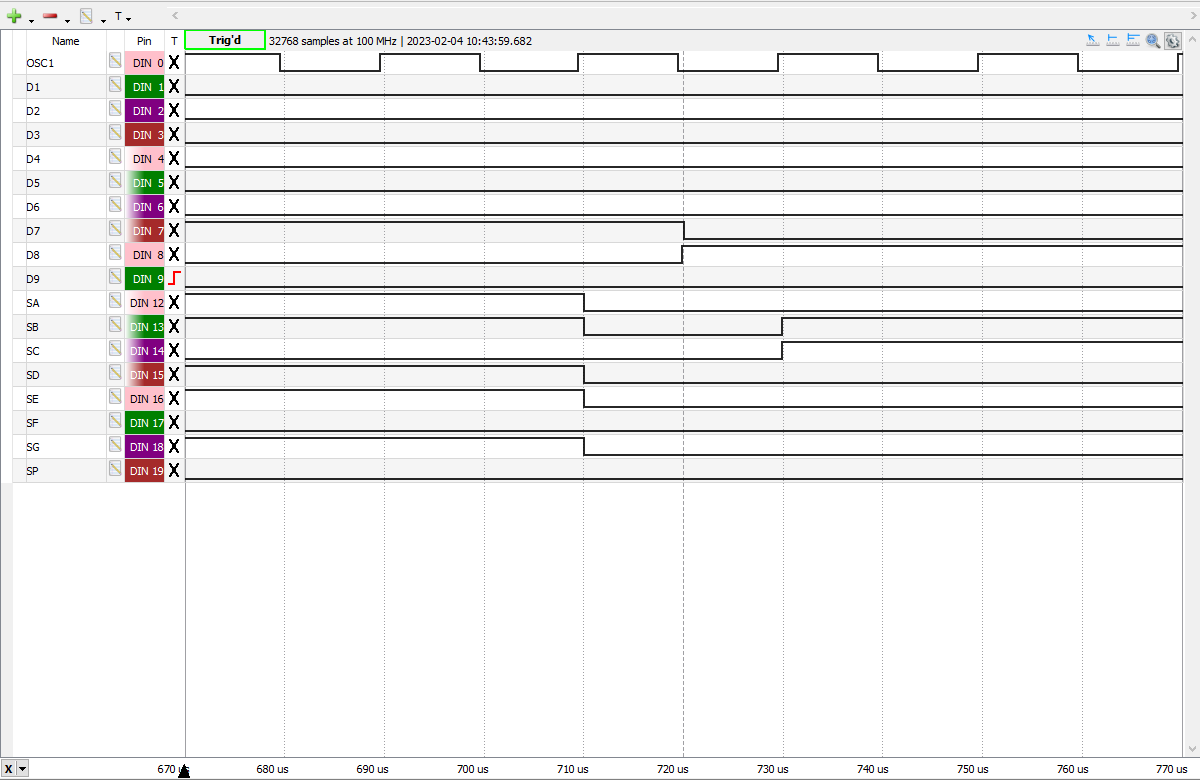

Close-up view of the transition between Digit D7 displaying "2" and Digit D8 displaying "1" of the S2144 showing the Leading and Trailing Digit Blanking Times.
