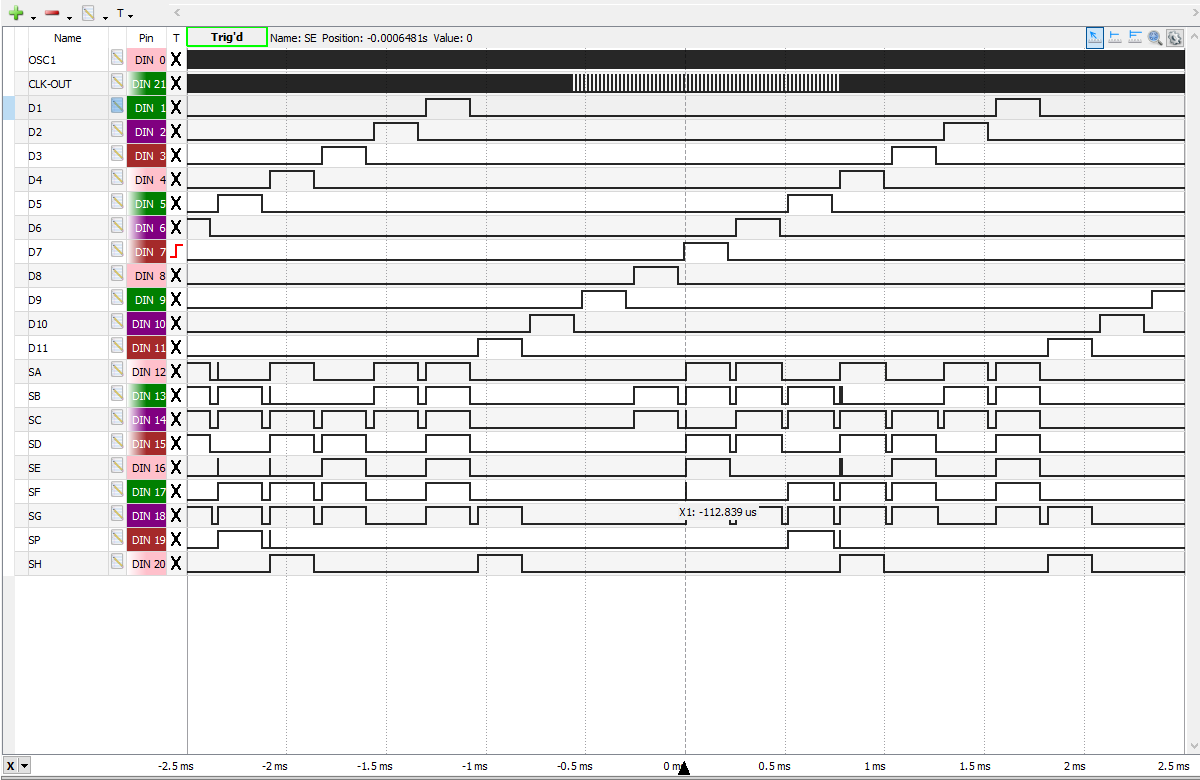

Complete Display Scanning Cycle of the Mostek MK5020A from a Heathkit IC-2006 manufactured in December 1973 displaying "-1234.5678"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. MK5020A Clock Frequency set to 150 kHz.

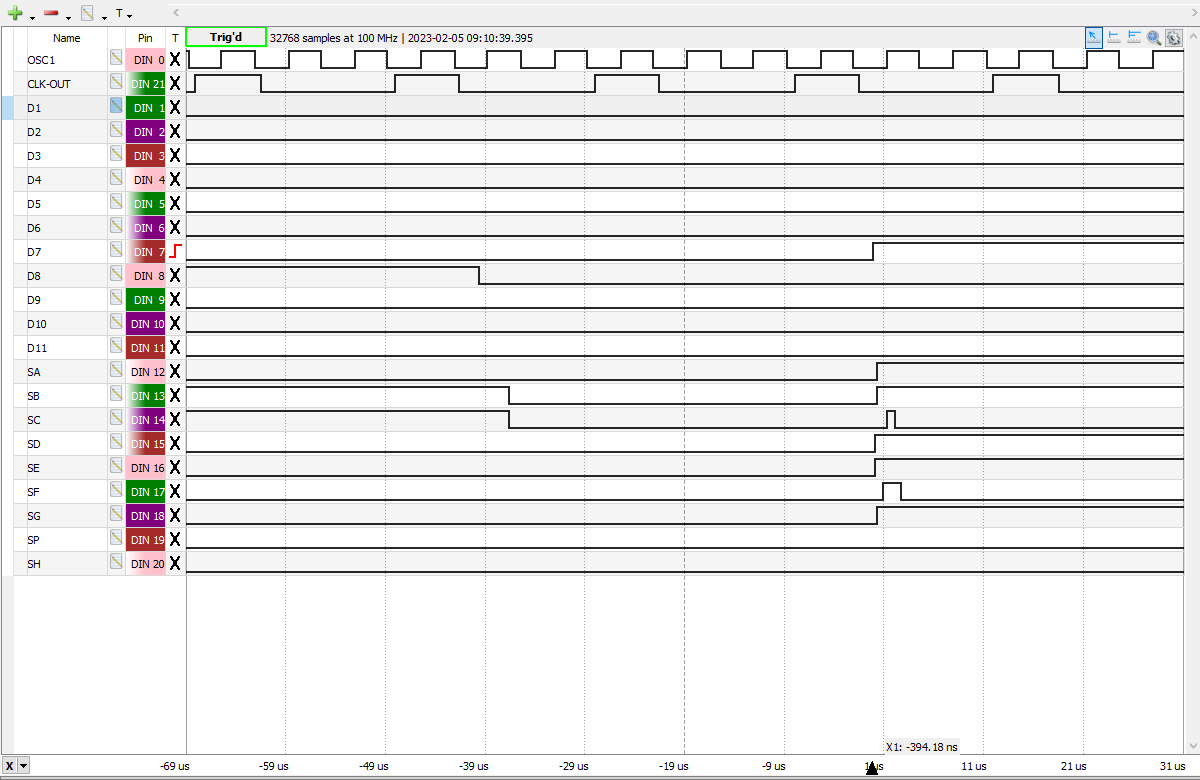

Close-up view of the transition between Digit D8 displaying "1" and Digit D7 displaying "2" of the MK5020A showing the Leading and Trailing Digit Blanking Times.
