Additional Pictures

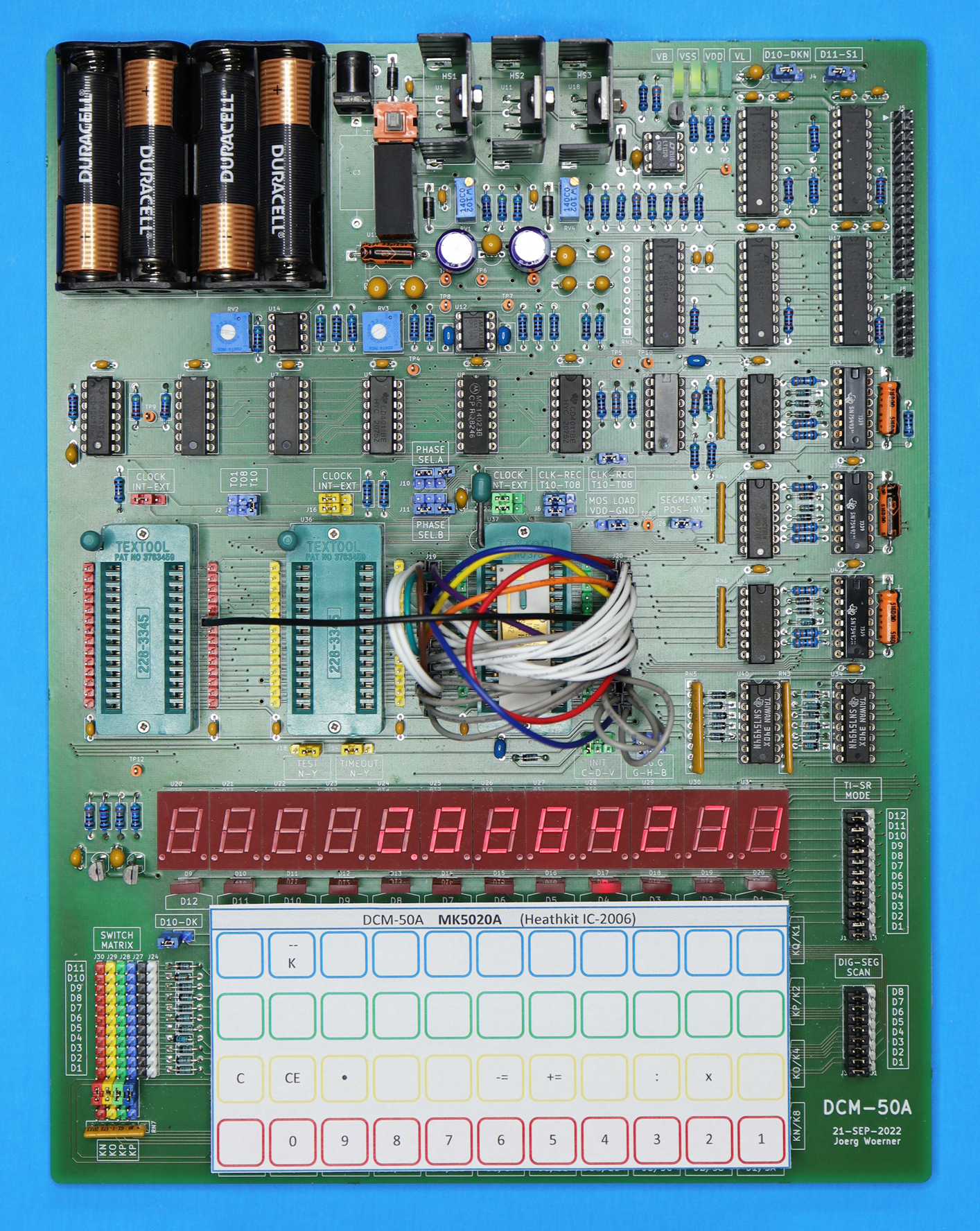

The DCM-50A Platform with the Mostek MK5020A single-chip calculator circuit from a Heathkit IC-2006 manufactured in November 1973.

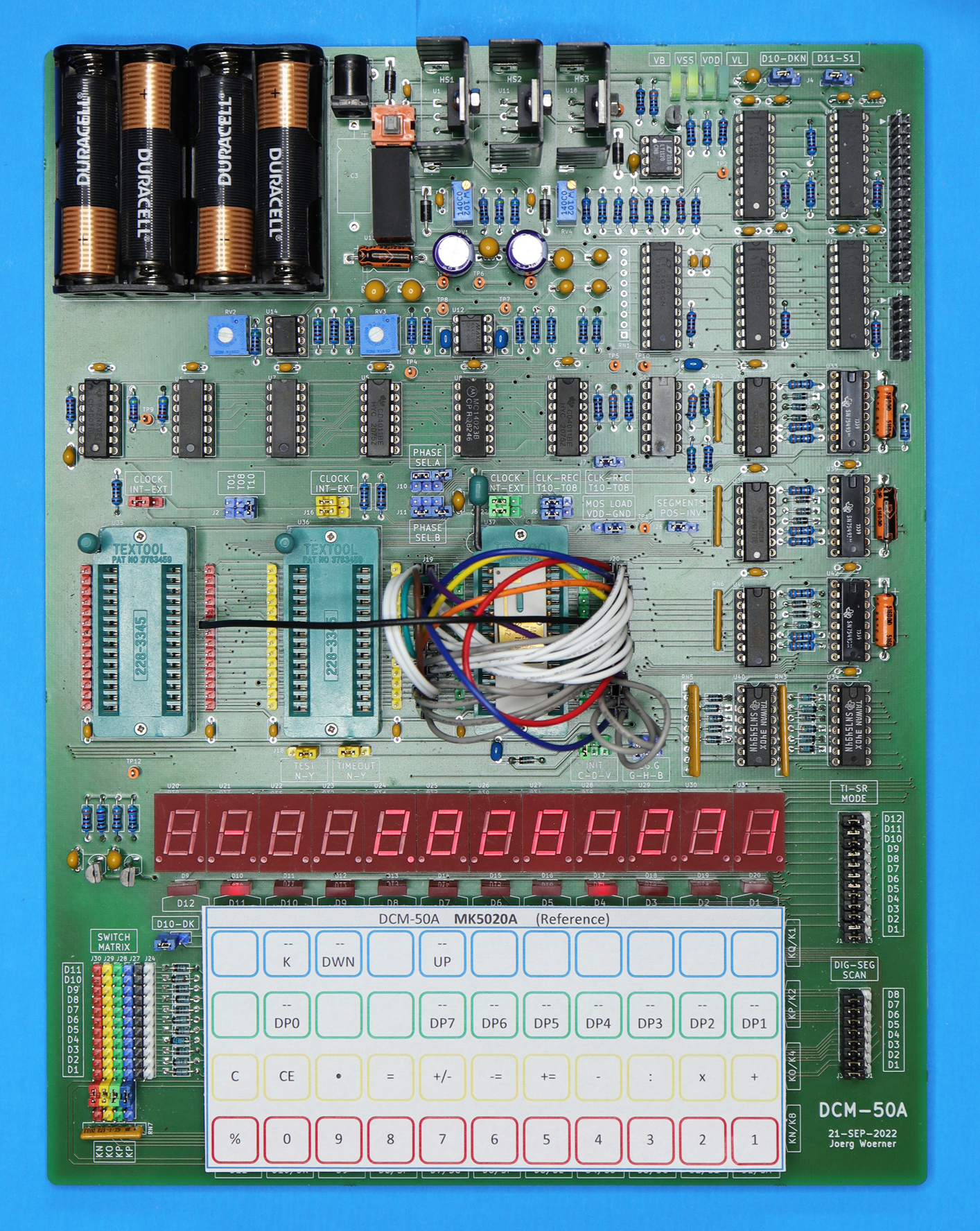

The second picture shows the DCM-50A Platform with all features (sans the √x function) accessible.

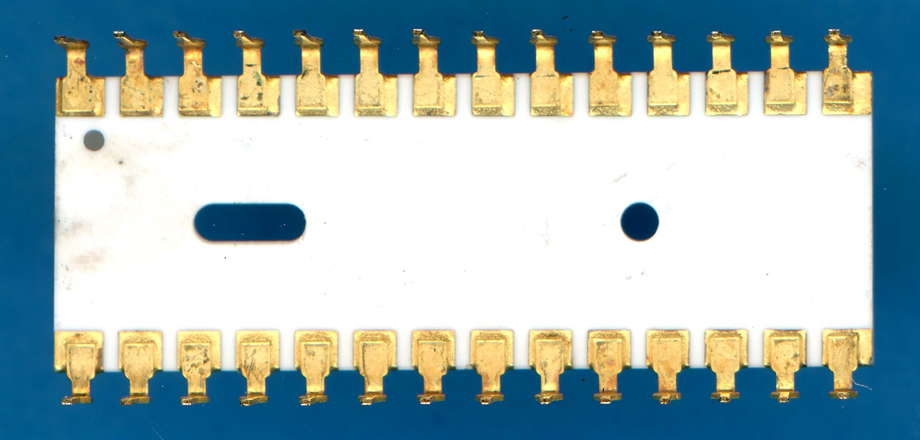

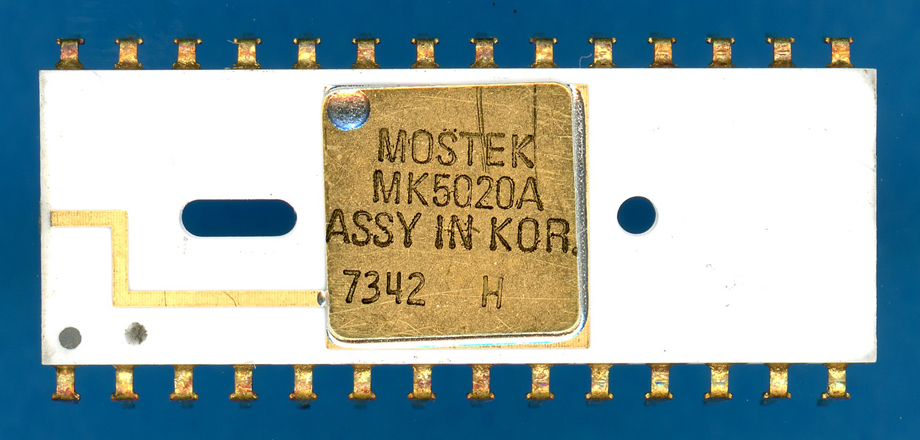

Close-up view of the Mostek MK5020A single-chip calculator circuit.

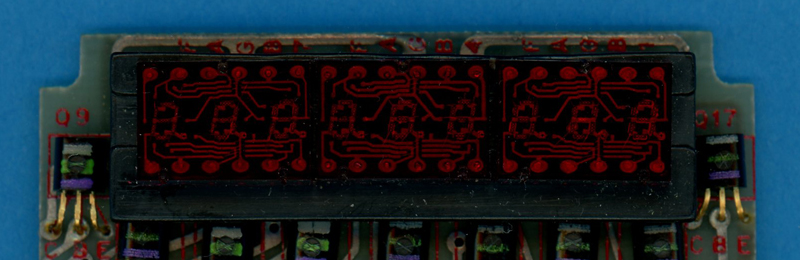

Close-up view of the LED Display Module with three National Semiconductor NSN33 3-digit modules.
