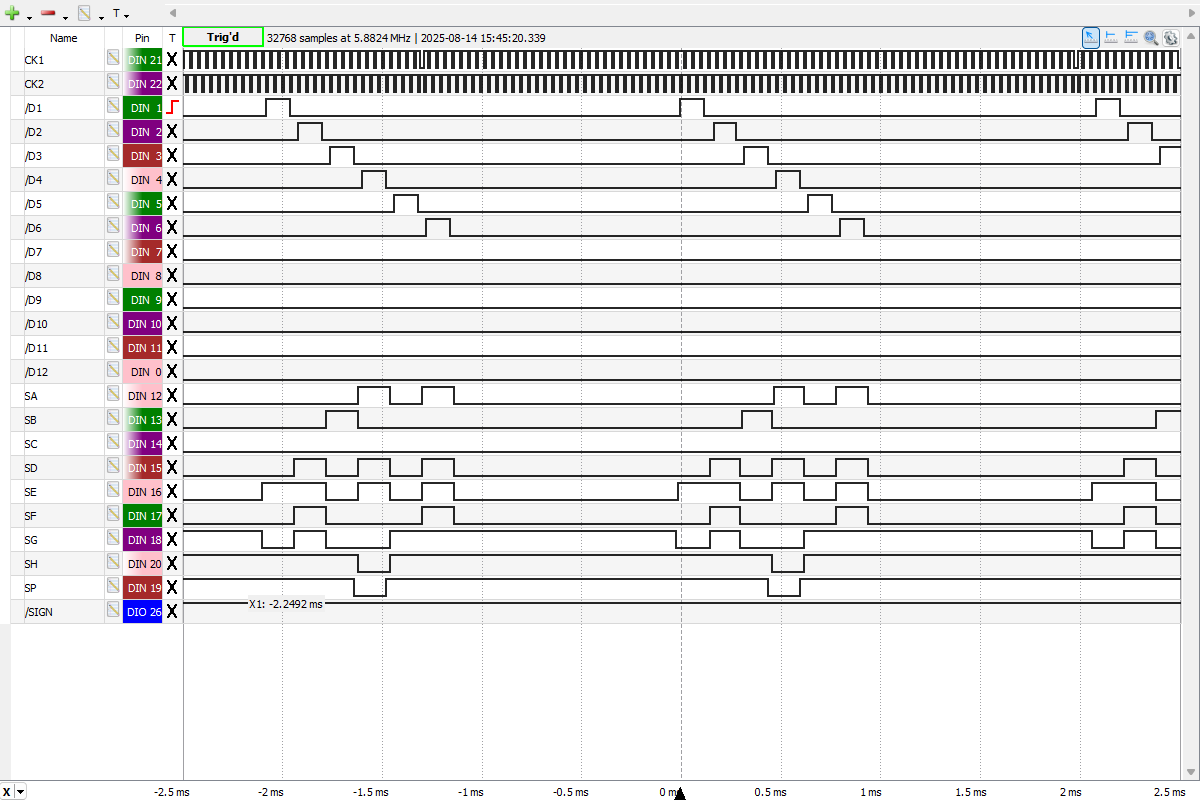

Scanning Cycle of the MK5011 from a Unitrex 1200
(Type 37, Rev. 4C) manufactured in May 1973 displaying
"-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. MK5011 Clock Frequency at 25 kHz.  |

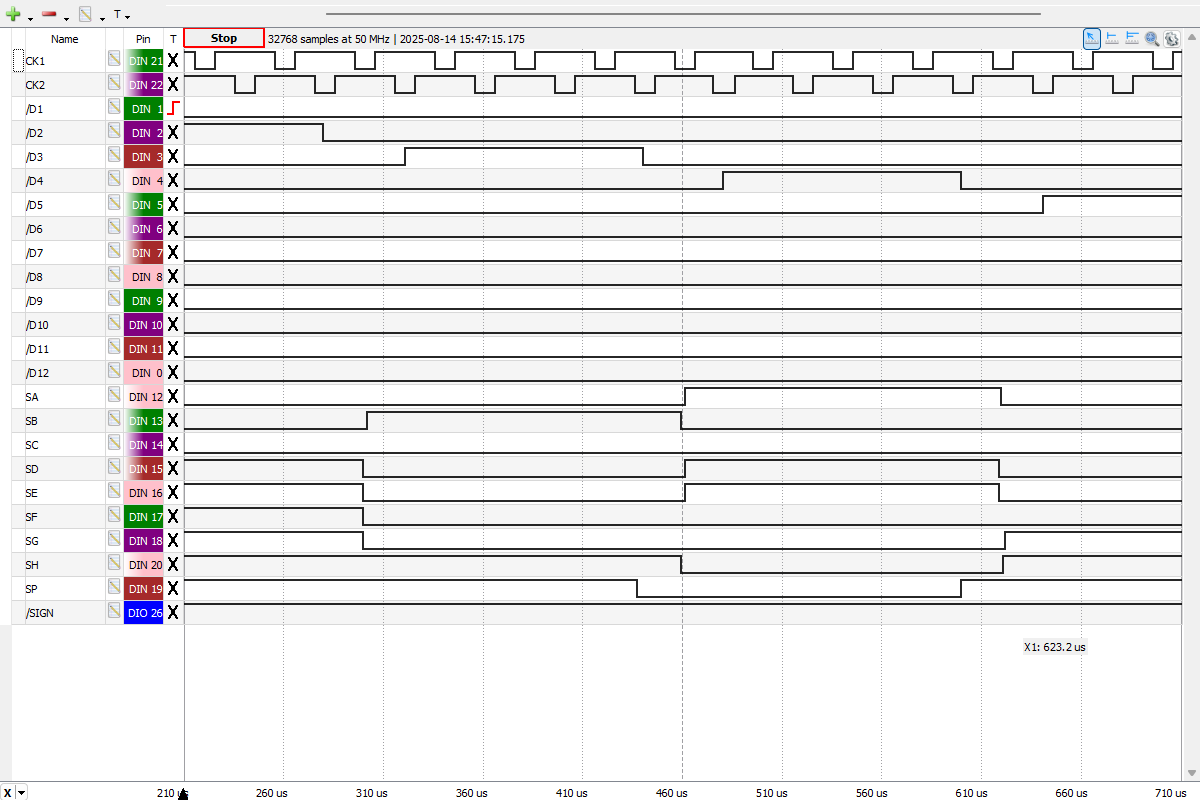

| Close-up view of the
transition between Digit D3 displaying "6" and Digit D4 displaying "4" of the
MK5011 showing the Leading and Trailing Digit
Blanking Times.
|
