Additional Pictures

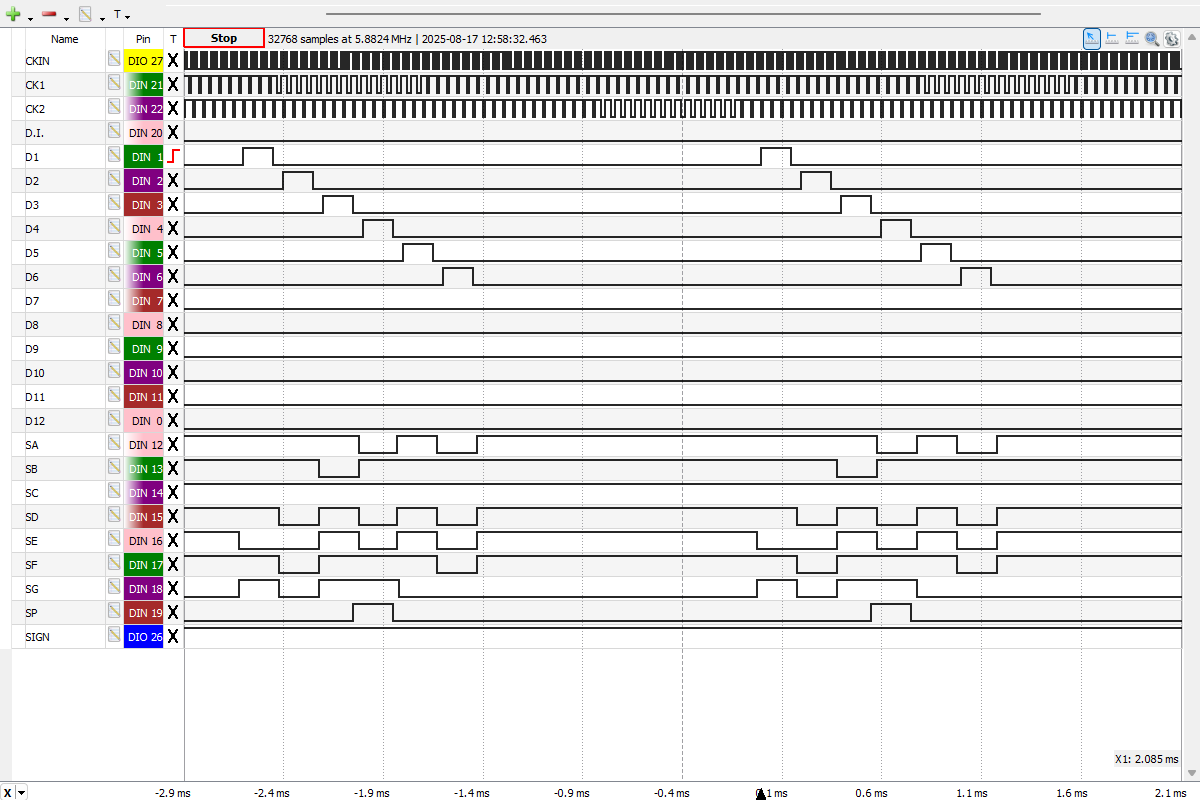

| Complete Display and Keyboard
Scanning Cycle of the CT5002 from a Caltronic 812 manufactured in
December 1972 displaying
"-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. CT5002 Clock Frequency at 40 kHz.  |

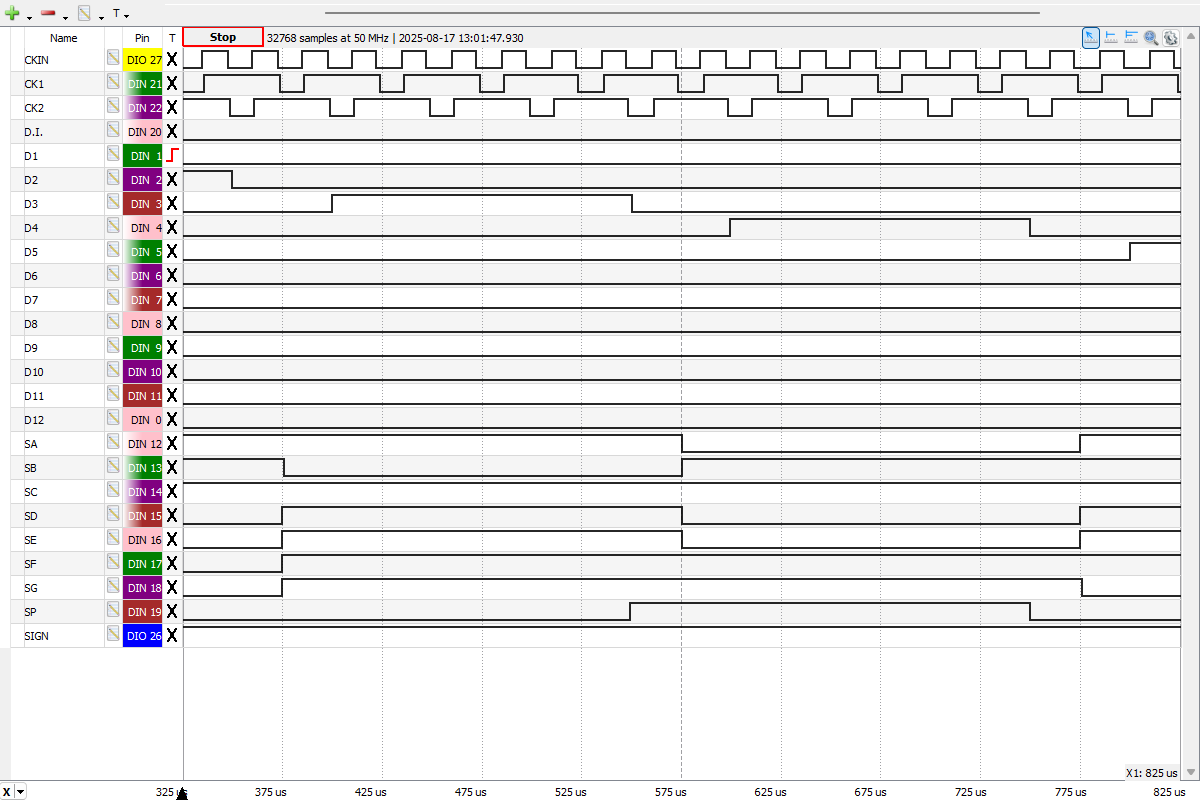

| Close-up view of the
transition between Digit D3 displaying "6" and Digit D4 displaying "4" of the
CT5002 showing the Leading and Trailing Digit
Blanking Times.
|
