Additional Pictures
This Speak & Spell Spanish Voice was manufactured
in August 1981 by |

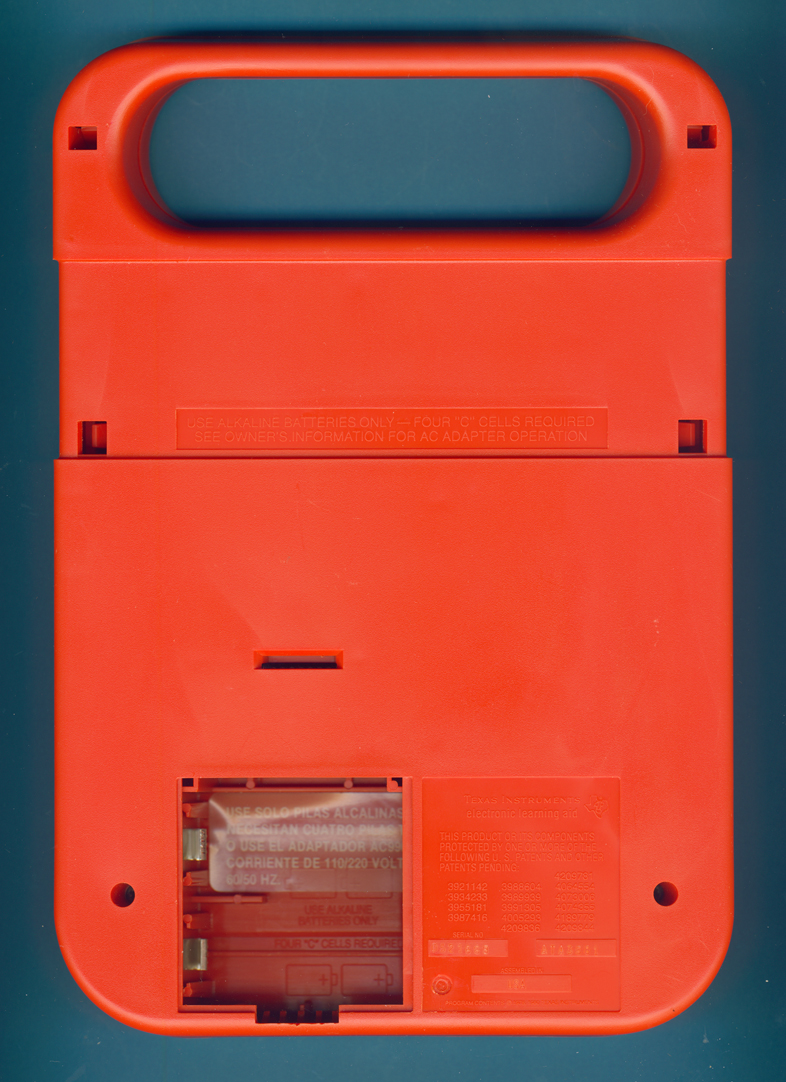

The Speak & Spell Spanish Voice
is powered with 4 C-sized batteries and sports an expansion slot for plug-in modules. |

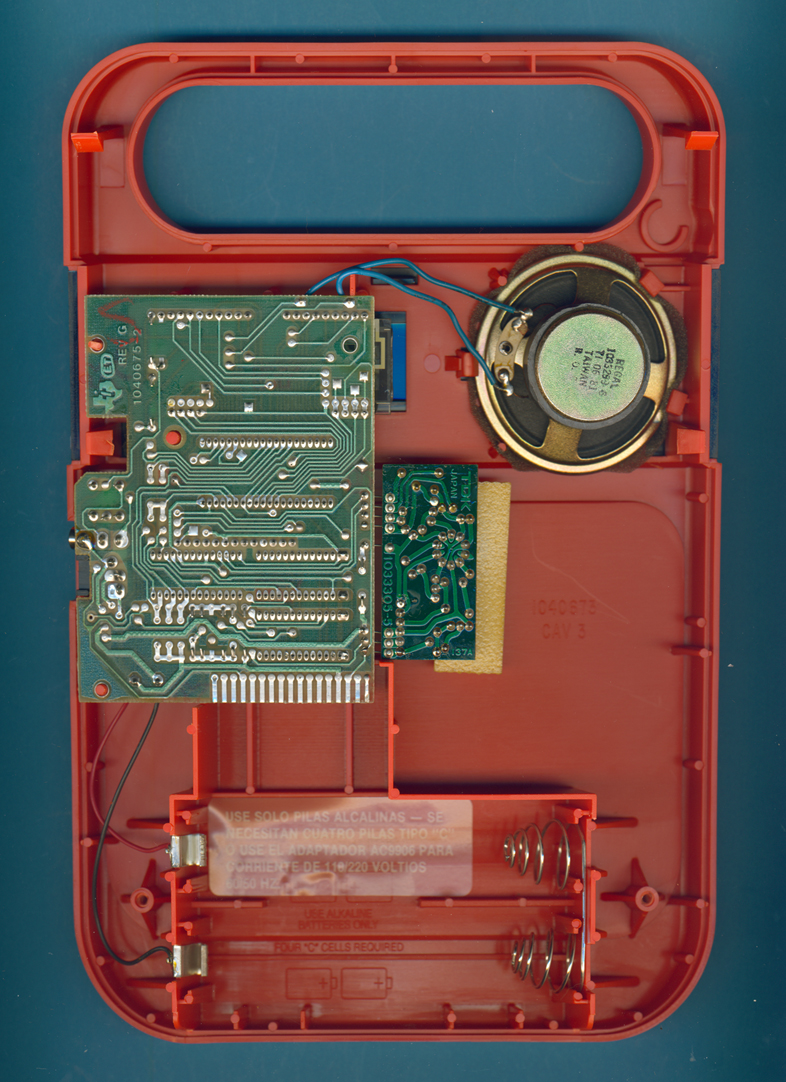

The printed circuit board
(PCB) of the Speak & Spell Spanish Voice looks
familiar to us.
|

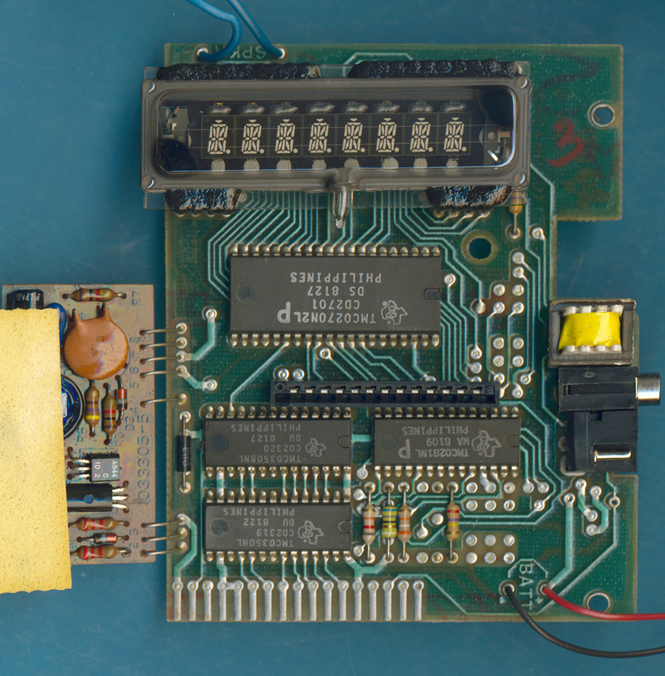

The PCB of the Speak & Spell Spanish Voice is centered
around a TMC0271 Microcontroller, a TMC0281 Voice Synthesis Processor (VSP), two TMC0350/CD2319 and TMC0350/CD2320 Voice Synthesis Memories (VSMs), and a small power supply and 9 character VF-Display. |
