The label on the back of the grey Speak & Spell proofs clearly its origin. | |
The inside view of the Speak
& Spell (Japan) shows the additional jacks
for an external power supply and the headphone.
|
|

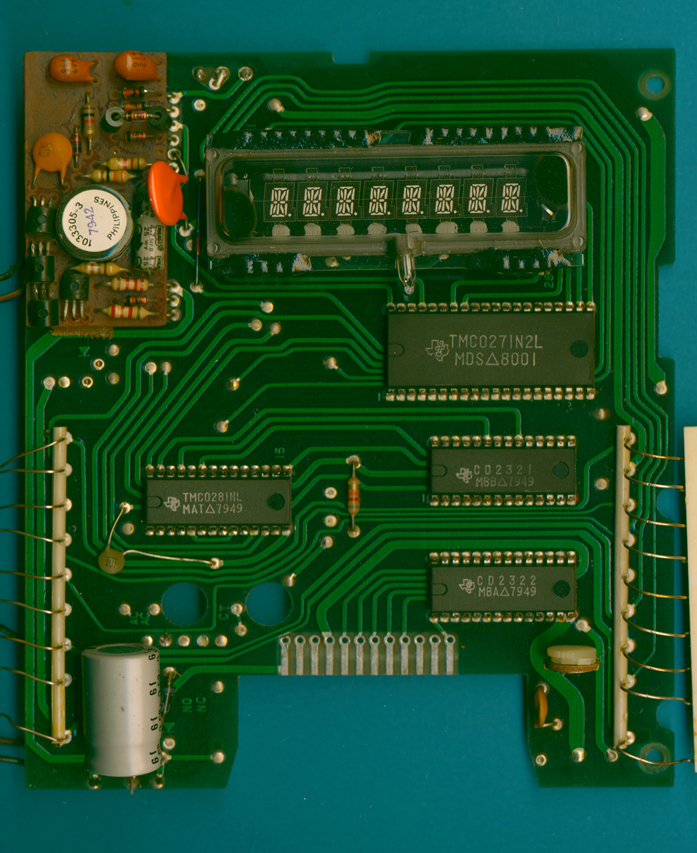

The PCB of the Speak & Spell (Japan) is centered
around a TMC0271 Microcontroller, a TMC0281 Voice Synthesis Processor (VSP), two TMC0350/CD2321 and TMC0350/CD2322 Voice Synthesis Memories (VSMs), and a small power supply and 8 character VF-Display. |
|

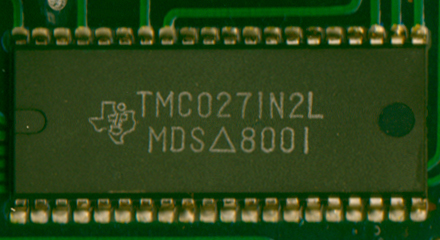

Close-up view of the TMC0271 MCU. |

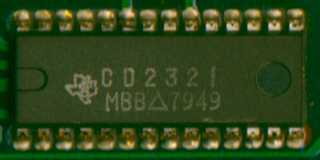

Close-up
view of the TMC0350/CD2321 VSM. |

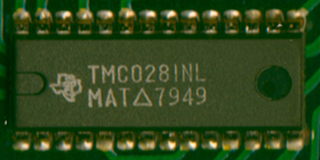

Close-up
view of the TMC0281 VSP. |

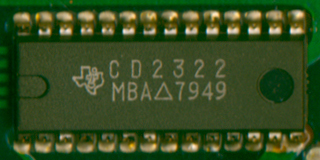

Close-up
