Additional Pictures

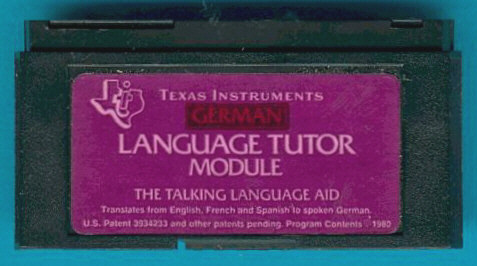

The GERMAN Module

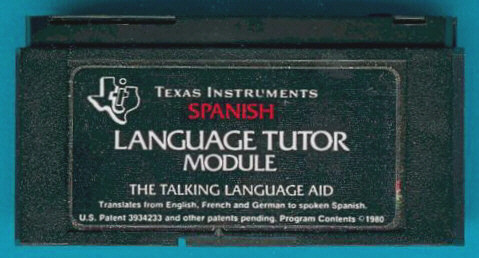

The SPANISH Module

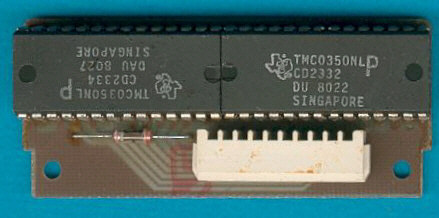

Inside the GERMAN Module.
Two TMC0350 each are soldered on top of the others.

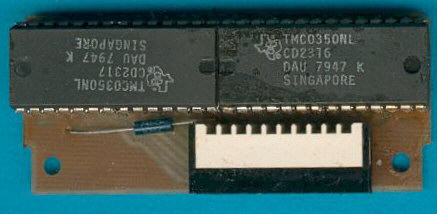

Inside the SPANISH Module.
Two TMC0350 each are soldered on top of the others.

Inside the Language Tutor. The Speech Synthesizer is visible,
the Microcontroller hidden under the Display Module.

We are curious about the Microcontroller and remove the
display carefully. Oops - a Japanese component inside...

The removed display gives access to the TMC0275 Microcontroller,
probably a member of the TMS1270 family.
