Additional Pictures

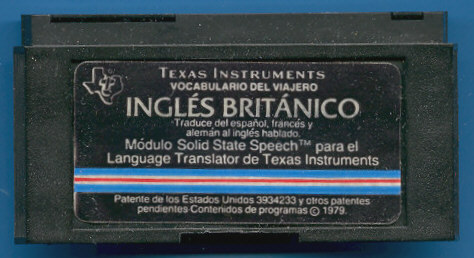

The "Spoken English" Solid State Speech Module
for the Language Translator.

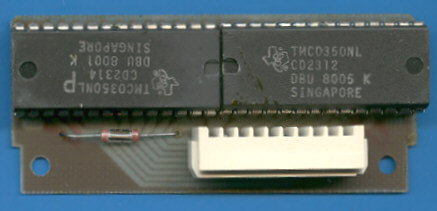

The printed circuit board (PCB) of the "Spoken English"
Solid State Speech Module with four Speech ROMs:
CD 2311, CD2312, CD2313, and CD2314.

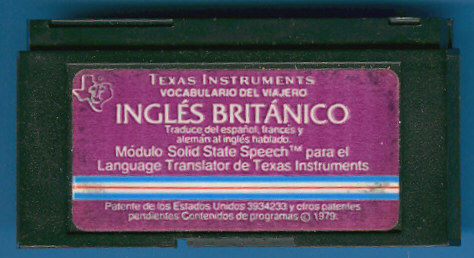

The "Spoken English" Solid State Speech Module
for the Language Translator.

The printed circuit board (PCB) of the "Spoken English"
Solid State Speech Module with four Speech ROMs:
CD 2311, CD2312, CD2313, and CD2314.

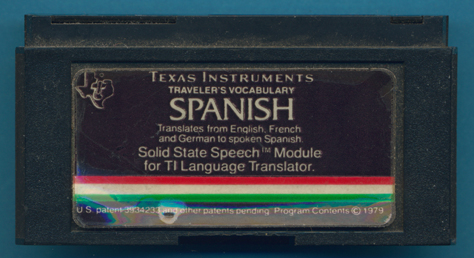

The "Spoken Spanish" Solid State Speech Module
for the Language Translator.

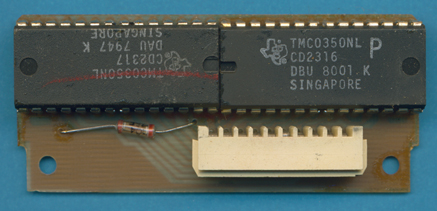

The printed circuit board (PCB) of the "Spoken Spanish"
Solid State Speech Module with four Speech ROMs:
CD 2315, CD2316, CD2317, and CD2318.

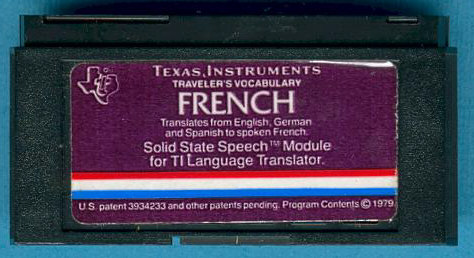

The "Spoken French" Solid State Speech Module
for the Language Translator.

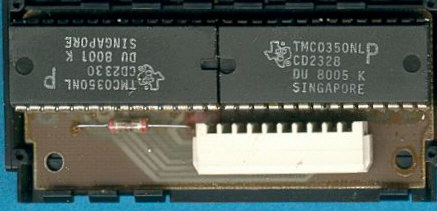

The printed circuit board (PCB) of the "Spoken French"
Solid State Speech Module with four Speech ROMs:
CD 2327, CD2328, CD2329, and CD2330.

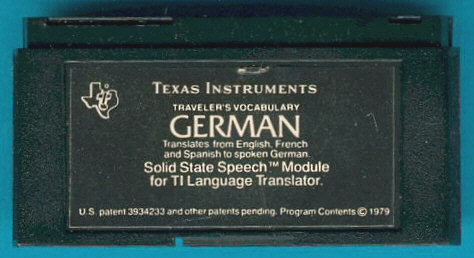

The "Spoken German" Solid State Speech Module
for the Language Translator.

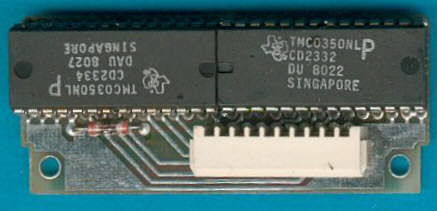

The printed circuit board (PCB) of the "Spoken German"
Solid State Speech Module with four Speech ROMs:
CD 2331, CD2332, CD2333, and CD2334.




If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, February 22, 2019. No reprints without written permission.
