Additional Pictures

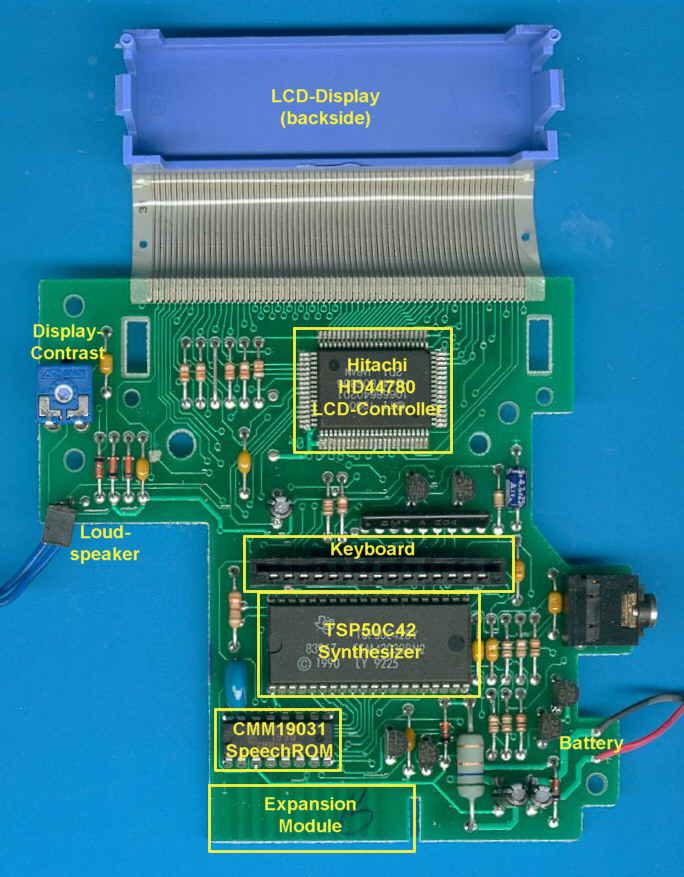

The printed circuit board (PCB) of the La Super Dictée Magique with only three main components:
The TSP50C42 SVoice Synthesis Processor, an additional VSP 60C19 (CMM19031) Speech-ROM
and the HD44780 LCD-controller.

An extension module for the
La Super Dictée Magique

The printed circuit board (PCB) of the
module with a CMM19049 Speech ROM.


If you have additions to the above article please email: joerg@datamath.org.
