Additional Pictures

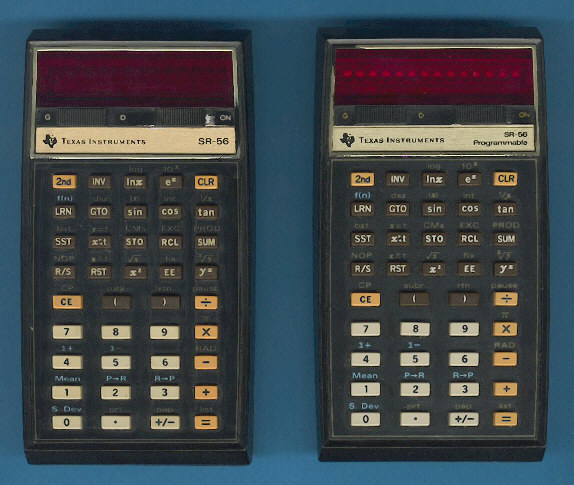

This SR-56 Programmable was manufactured in December 1976 by
Texas Instruments in Rieti, Italy (Date code 4976 RCI » wk 49 yr 1976).

The battery compartment of the SR-56.

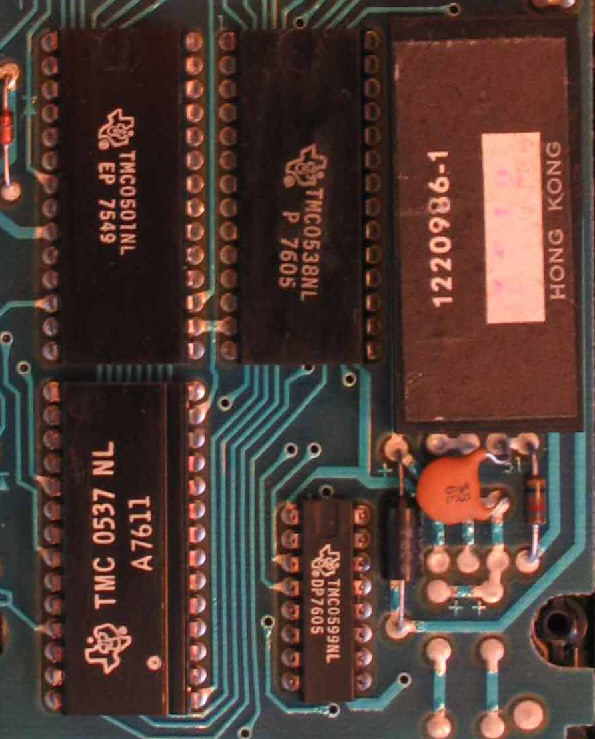

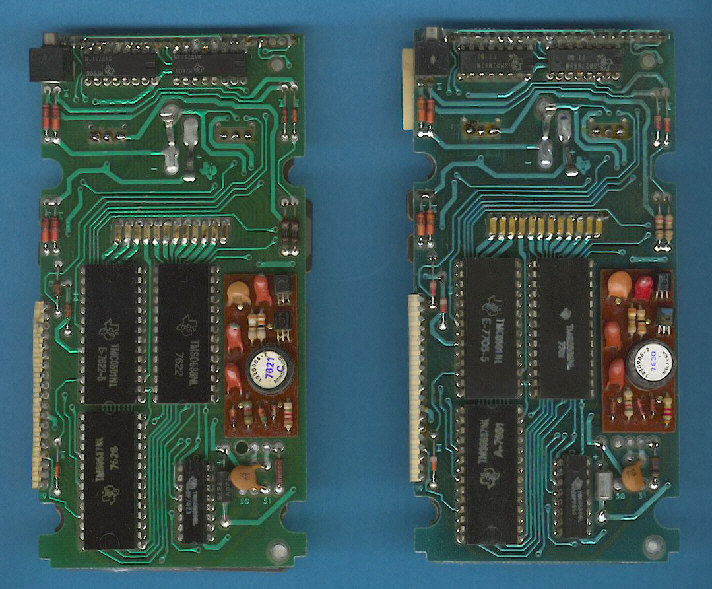

The Main printed circuit board (PCB) of the SR-56 calculator is centered around the
TMC0501, TMC0537/0538 and TMC0599 Chips supported by only few discrete components.

The rear side of the SR-56 PCB with the Display Module and Keyboard assembly.

Close-up view of the TMC0501 Arithmetic Chip.

Close-up view of the TMC0537 Scanning and Read-Only Memory Chip.

Close-up view of the TMC0538 Scanning and Read-Only Memory Chip.

Close-up view of the TMC0599 Multi-Register Chip.

Close-up view of one of the two SN27882 Display Driver Chips.
