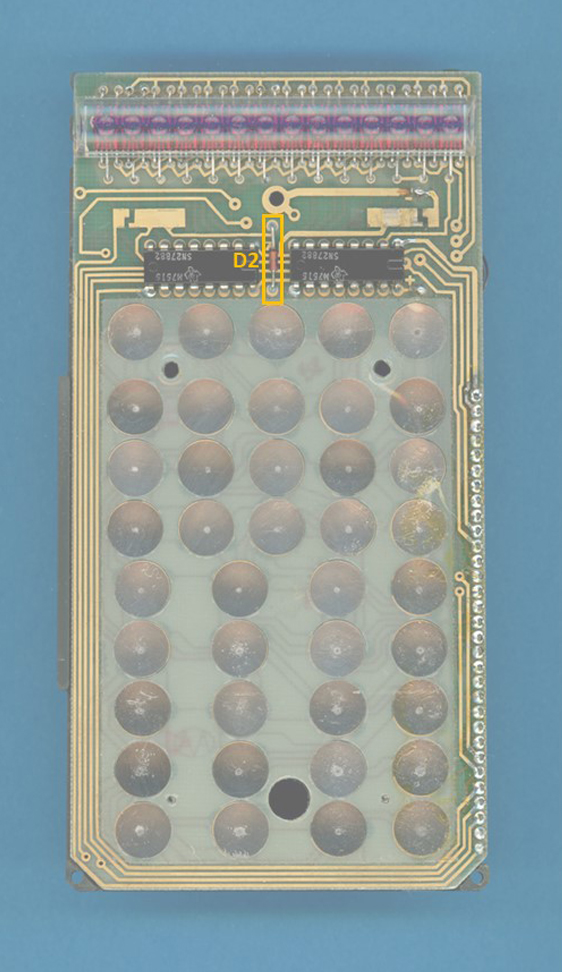

| The printed circuit
boards (PCBs) of the SR-51 Scientific Calculator with
the PC-100 Printer Cradle connector and Diodes D1, D2 labeled.
|

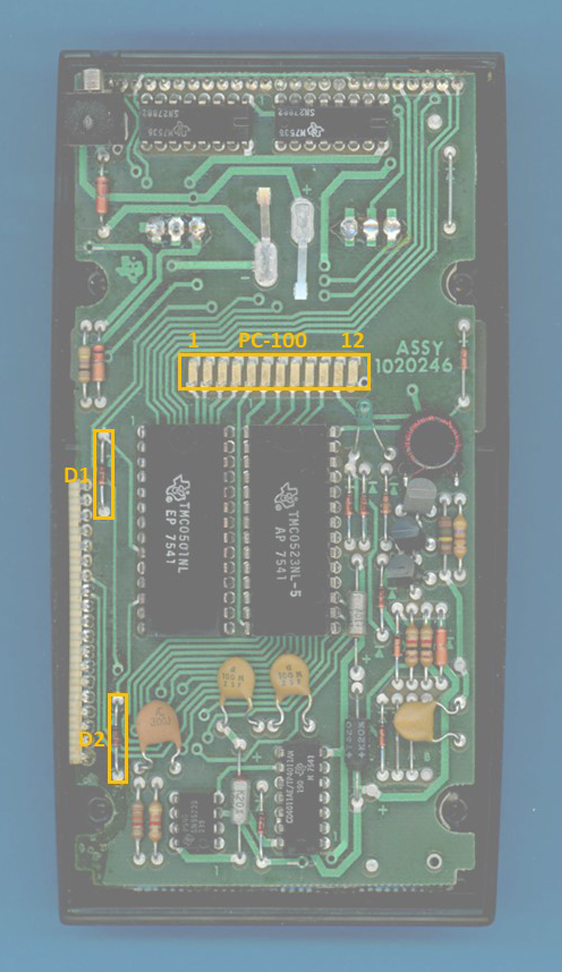

| The Main-PCB
of the SR-51A (Version 1) Scientific Calculator with the PC-100 Printer
Cradle connector and Diodes D1, D2 labeled.
|

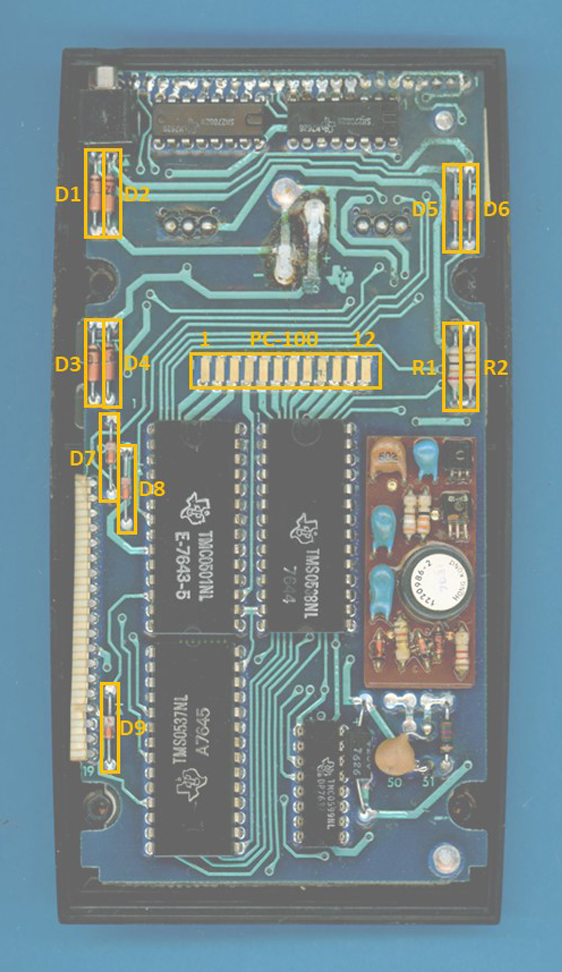

| The Main-PCB
of the SR-56 Programmable Calculator with the PC-100 Printer Cradle
connector, Diodes D1 - D9 and Resistors R1, R2 labeled.
|

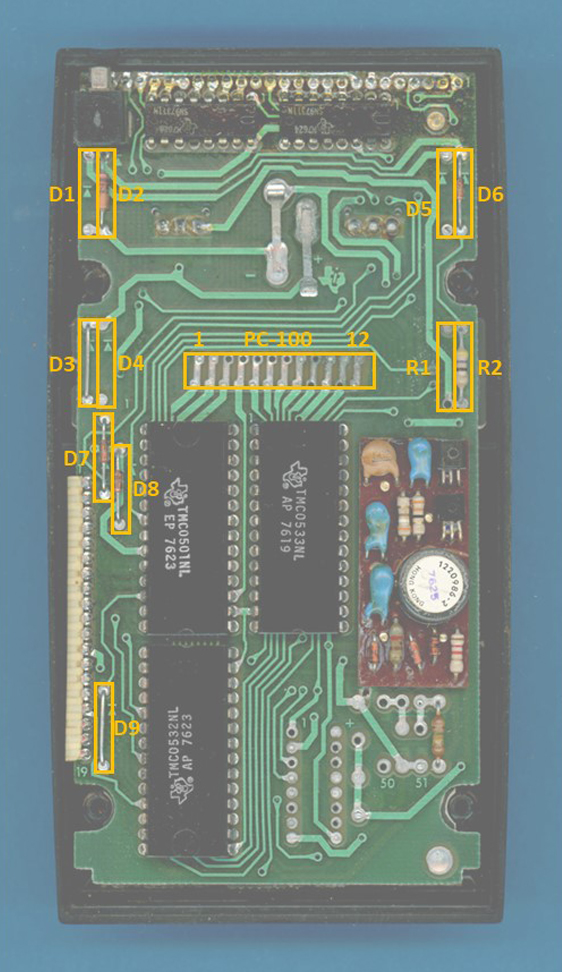

| The Main-PCB
of the SR-51A (Version 2) Scientific Calculator with the PC-100 Printer
Cradle connector, Diodes D1 - D9 and Resistors R1, R2 labeled.
|
