DATAMATH  CALCULATOR  MUSEUM

Additional Pictures



This SR-51A (Version 1) was manufactured in November 1975 by
Texas Instruments in Dallas, Texas (Date code 4675 DTA » wk 46 yr 1975).

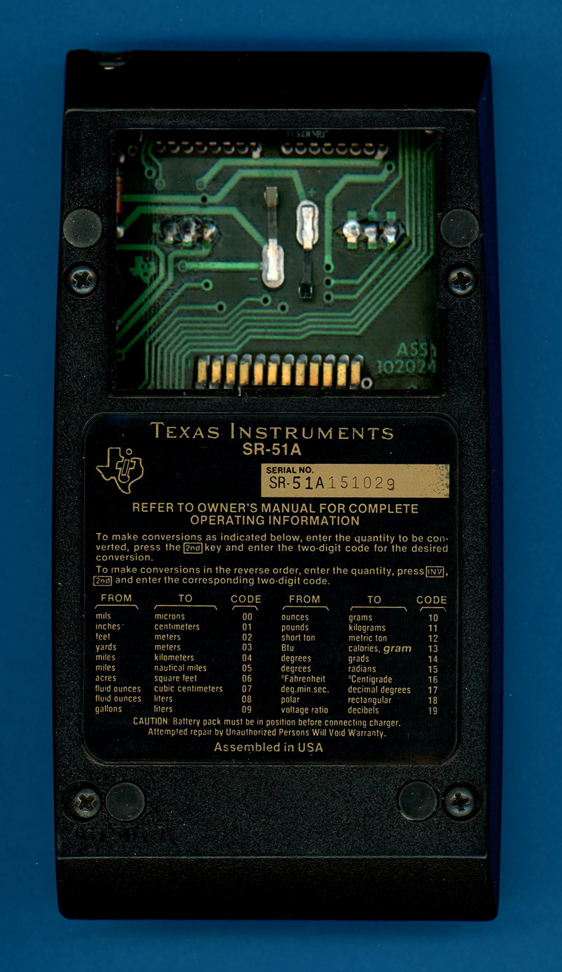

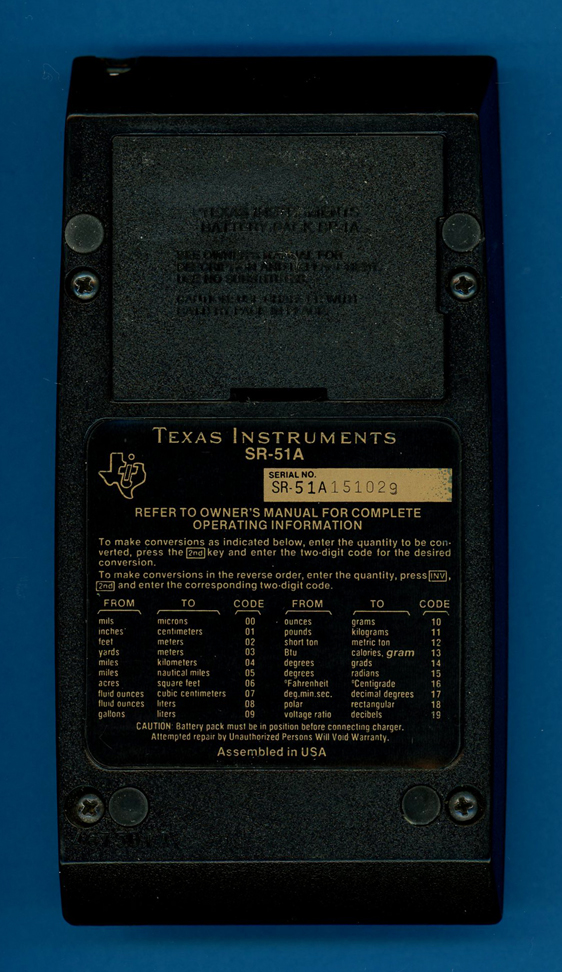

The battery compartment of the SR-51A.

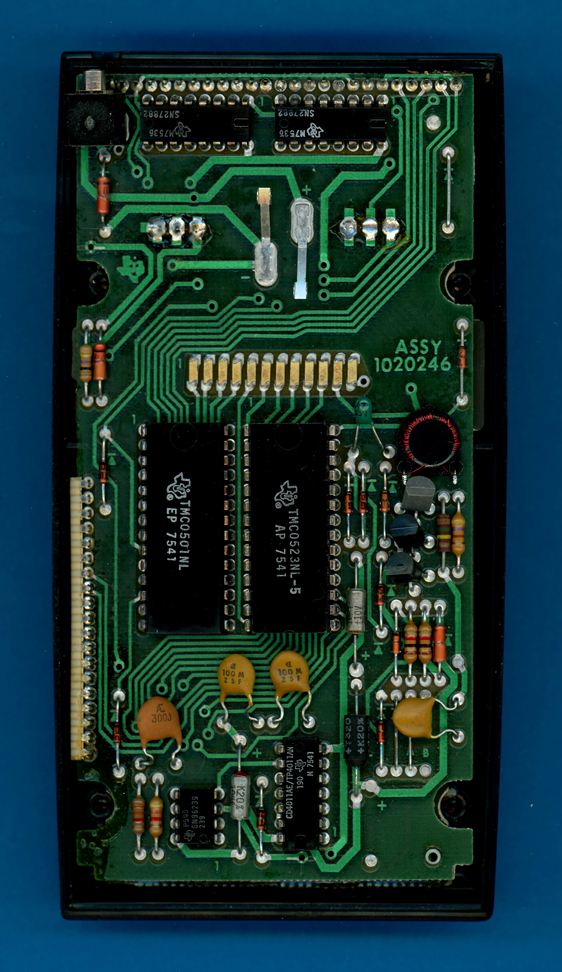

The Main printed circuit board (PCB) of the SR-51A calculator is centered around the
TMC0501 and TMC0522/0523 chips supported by many discrete components.

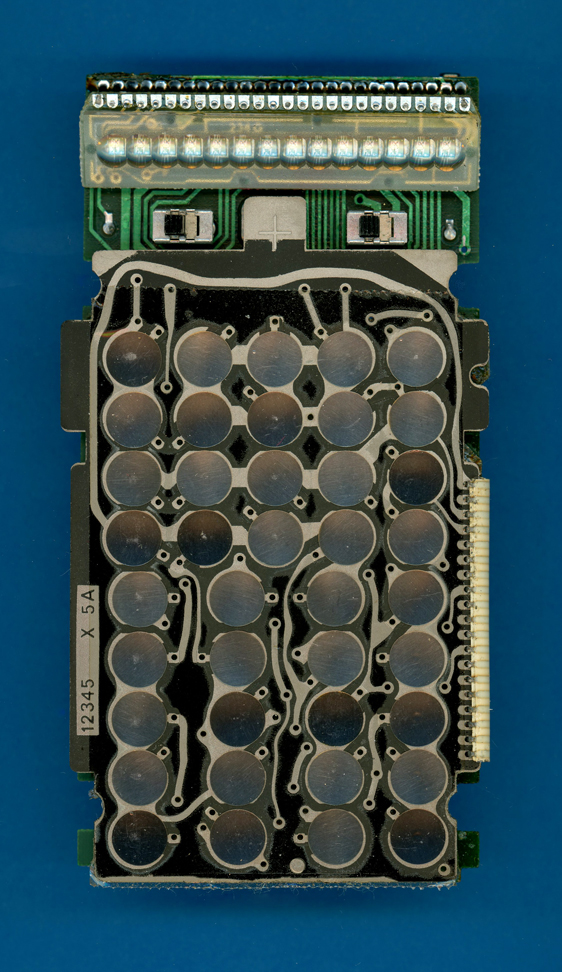

The rear side of the SR-51A PCB with the Display Module and Keyboard assembly.

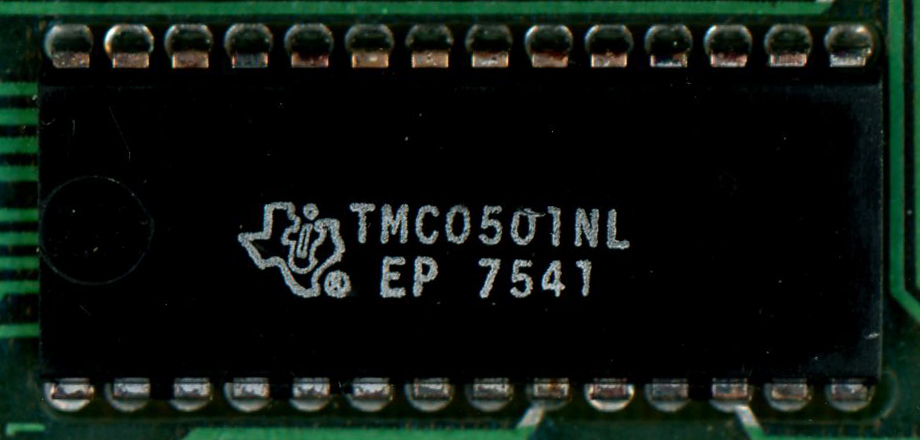

Close-up view of the TMC0501 Arithmetic Chip.

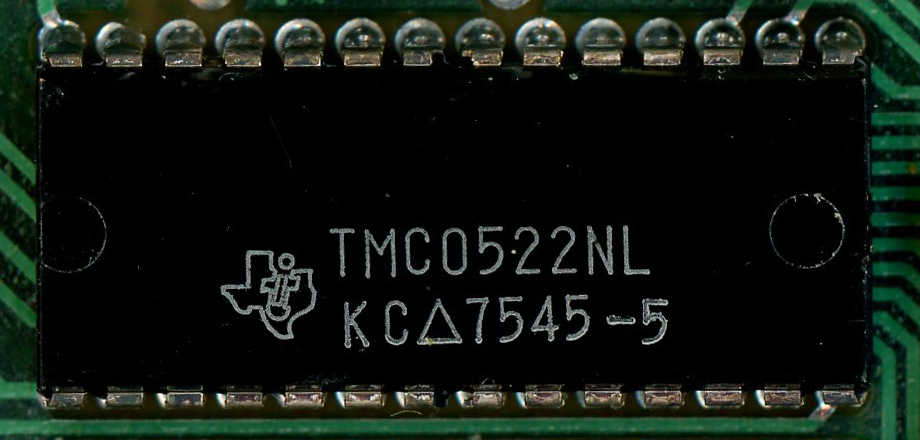

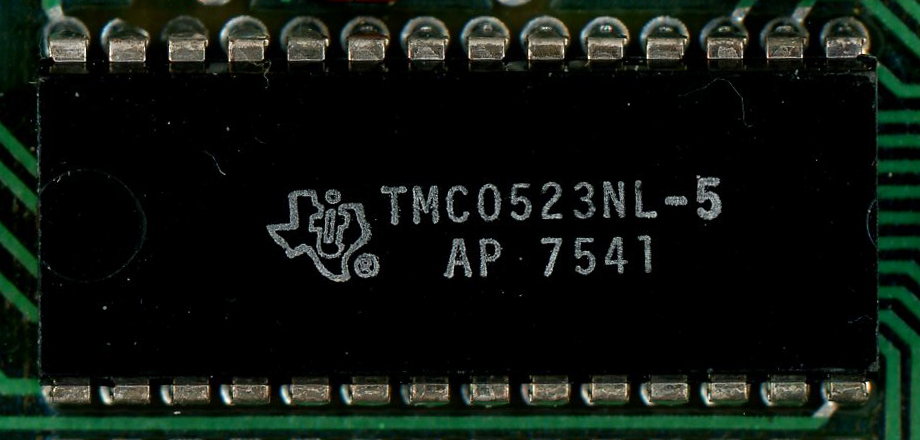

Close-up view of the TMC0522/TMC0523 Scanning and Read-Only Memory Chips.

Close-up view of the TMC0522/TMC0523 SCOM Chips from another SR-51.

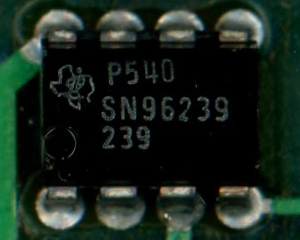

Close-up view of the SN96239 Clock Generator Chip.

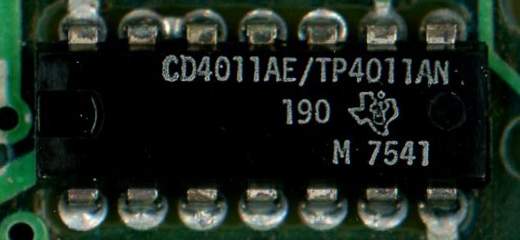

Close-up view of the TP4011A Clock Driver Chip.

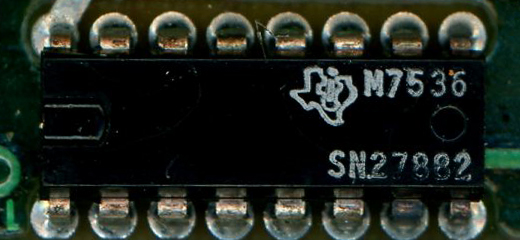

Close-up view of one of the two SN27882 Display Driver Chips.

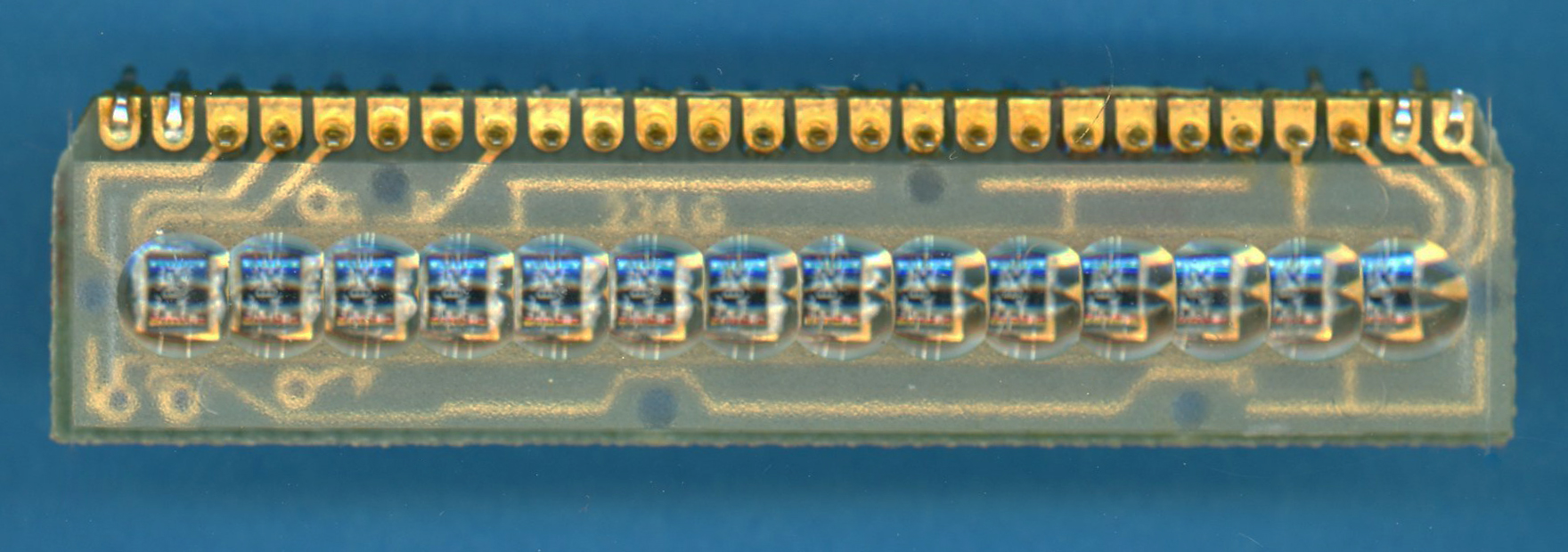

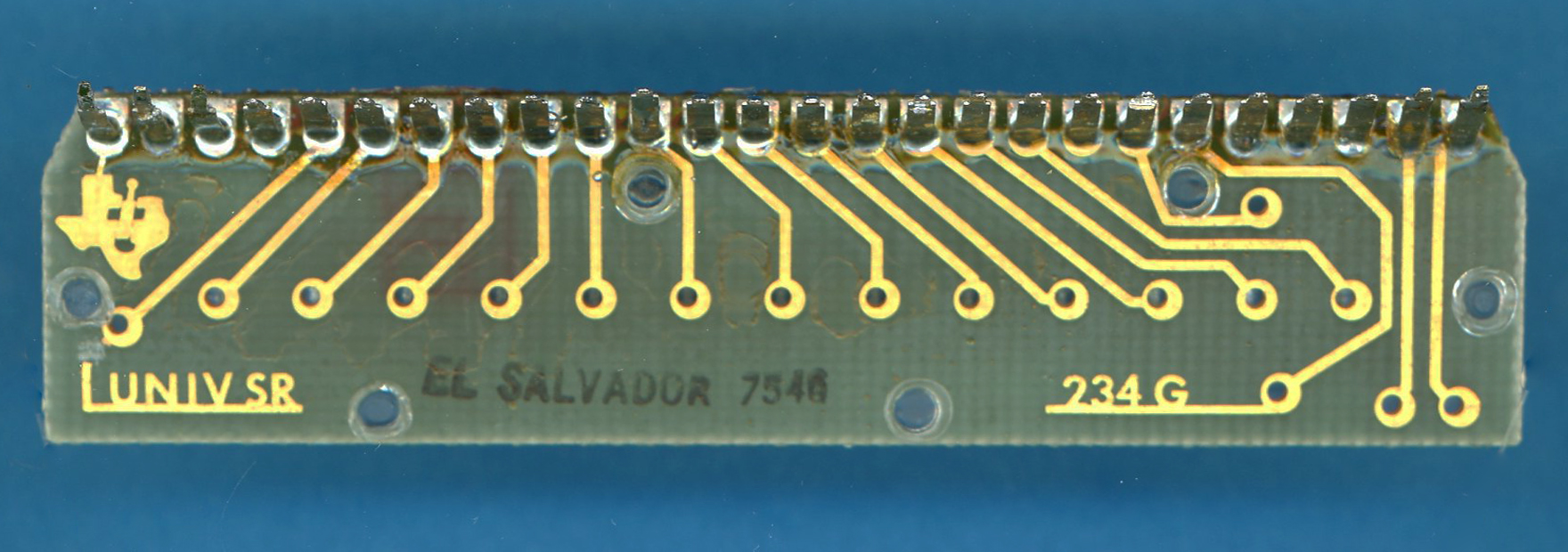

Close-up of the 14-digit DIS234G LED Display with magnifying lens.


horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, January 6, 2024. No reprints without written permission.
