Additional Pictures

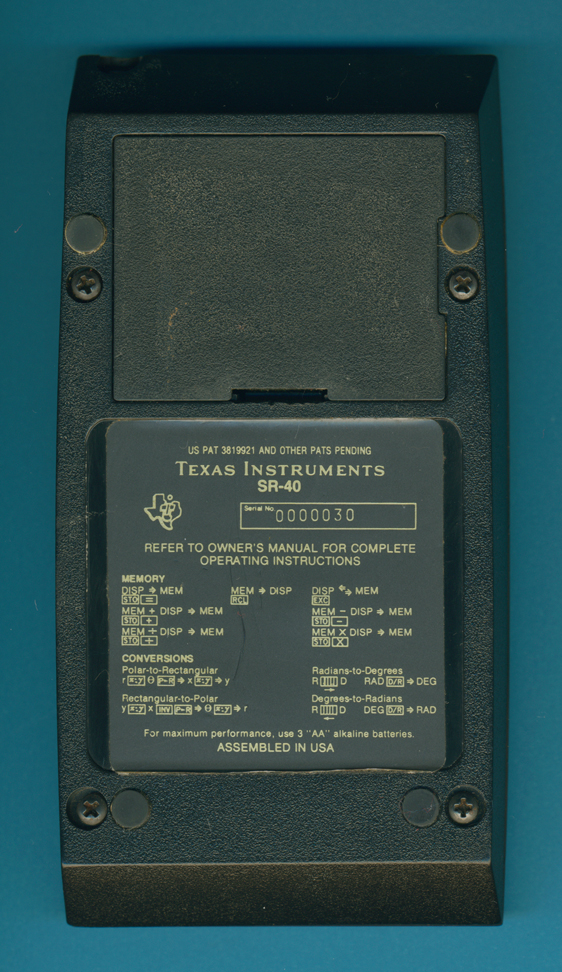

The backside of the SR-40 Prototype with the Serial Number 0000030.

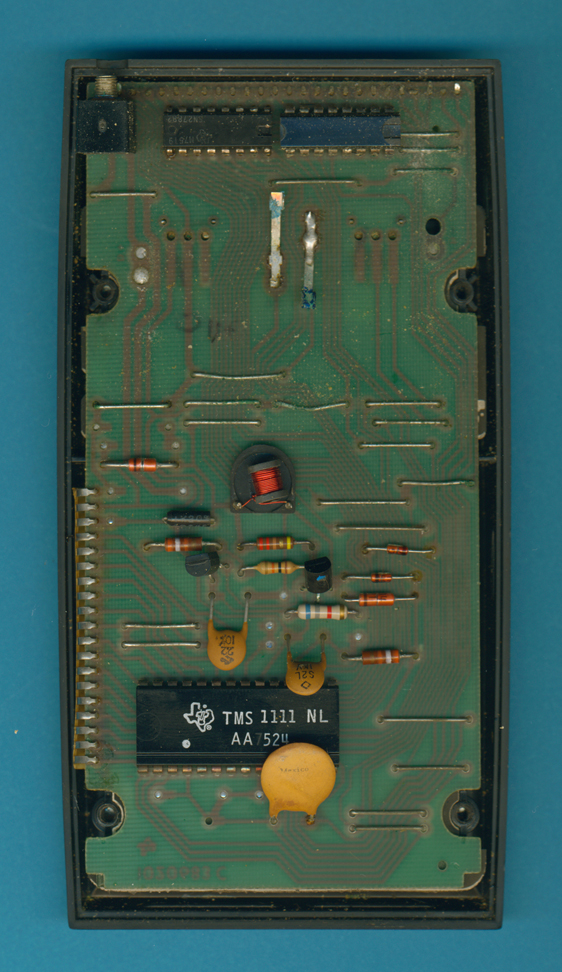

The printed circuit board (PCB) of the SR-40 is similar to the later SR-16 II.
Please notice the different arrangement of the battery contacts,
the TMS1111 single-chip calculator circuit and the small coil
of the power supply.

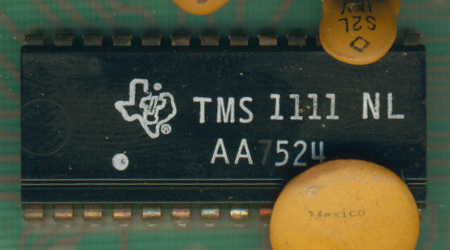

Close-up view of the TMS1111 single-chip calculator circuit.
