This SR-11 Version 1 was manufactured in October 1973 by Texas Instruments. |
|

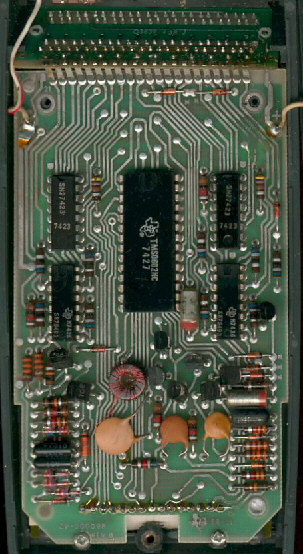

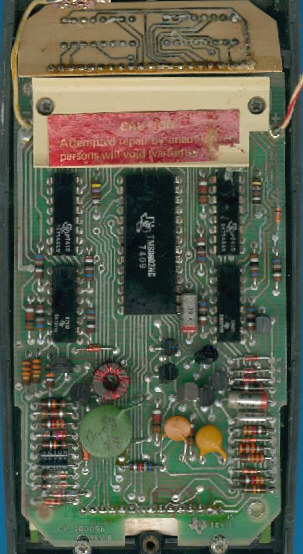

The double-sided printed circuit board
(PCB) of the SR-11 Version 1 is centered around a TMS0602 single-chip calculator circuit. |
|
Close-up
view of
the TMS0602 single-chip calculator circuit.
|
|
Close-up
view of the SN75493 Segment Driver.
|
Close-up
view of the SN75494 Digit Driver.
|
Close-up
view of
the DIS115E Display PCB with 12 individual DIS279 Seven-Segment displays. |
