This SR-11 Version 1 was manufactured in February 1974 by Texas Instruments. |
|

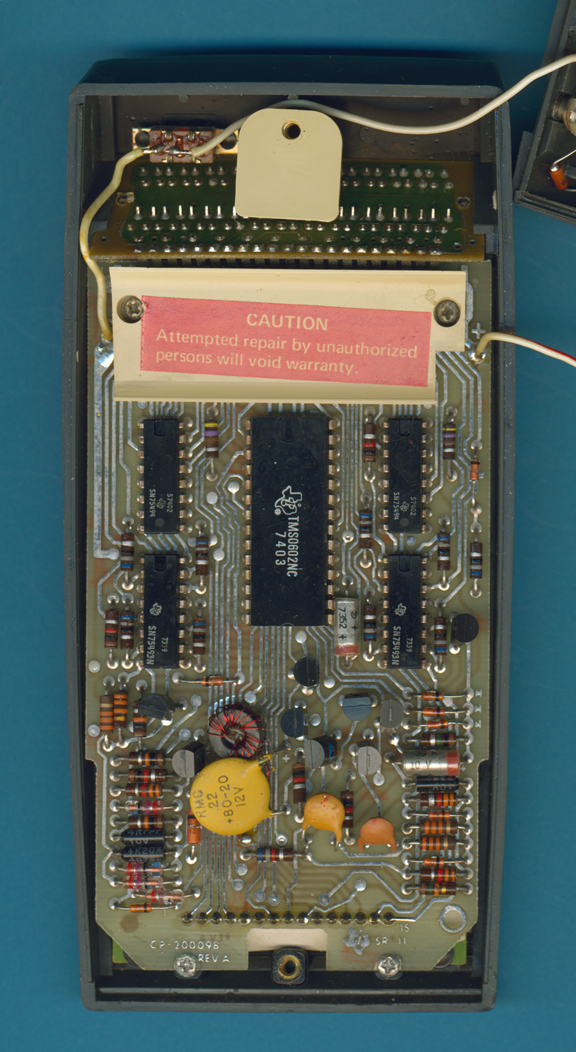

The double-sided printed circuit board
(PCB) of the SR-11 Version 1 is centered around a TMS0602 single-chip calculator circuit. |
|
Close-up
view of

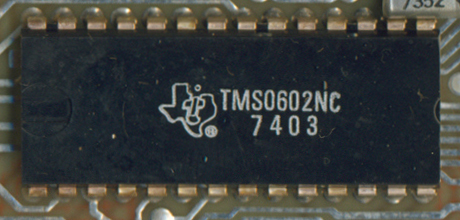

the TMS0602 single-chip calculator circuit.
|
|
Close-up
view of the SN75493 Segment Driver.
|
Close-up
view of the SN75494 Digit Driver.
|
Close-up
view of
the DIS115F Display PCB with 12 individual DISXXX Seven-Segment displays. |
