Additional Pictures

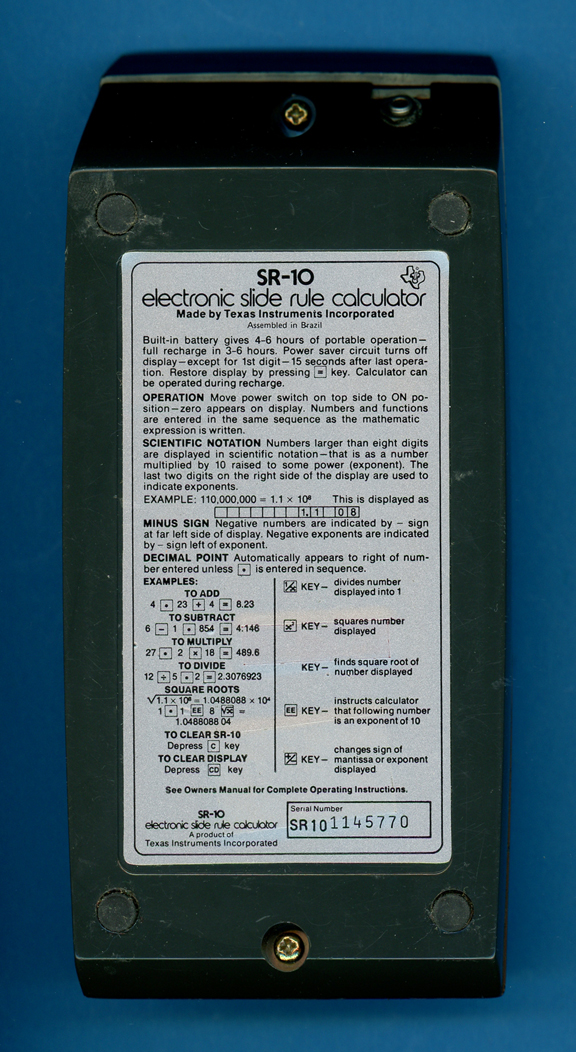

This SR-10 Version 2 was manufactured in December 1973 by Texas Instruments.

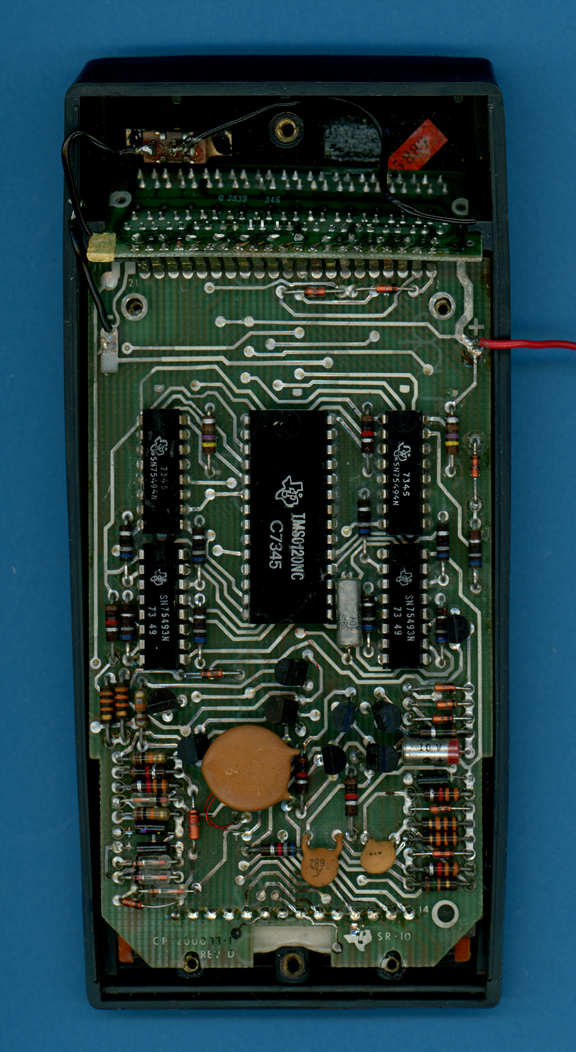

The double-sided printed circuit board (PCB) of the SR-10 Version 2
is centered around a TMS0120 single-chip calculator circuit.

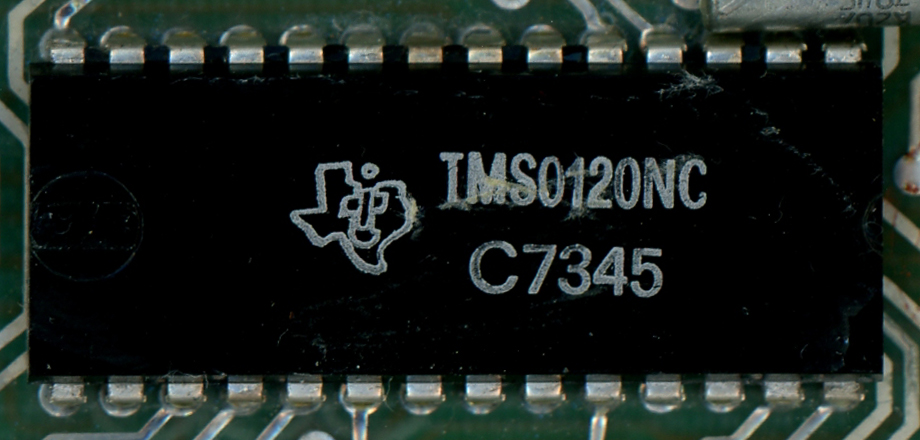

Close-up view of the TMS0120 (TMS0720) single-chip calculator circuit.

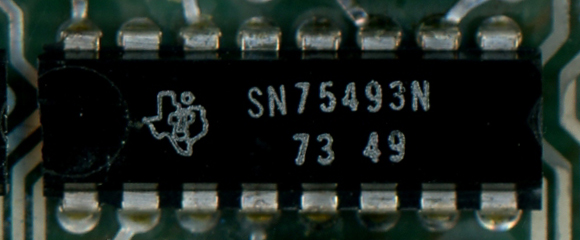

Close-up view of the SN75493 Segment Driver.

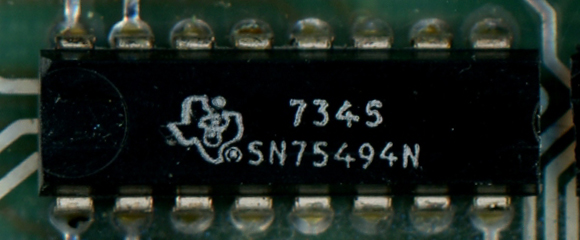

Close-up view of the SN75494 Digit Driver.

Close-up view of the DIS115F Display PCB with 12 individual DISXXX Seven-Segment displays.
