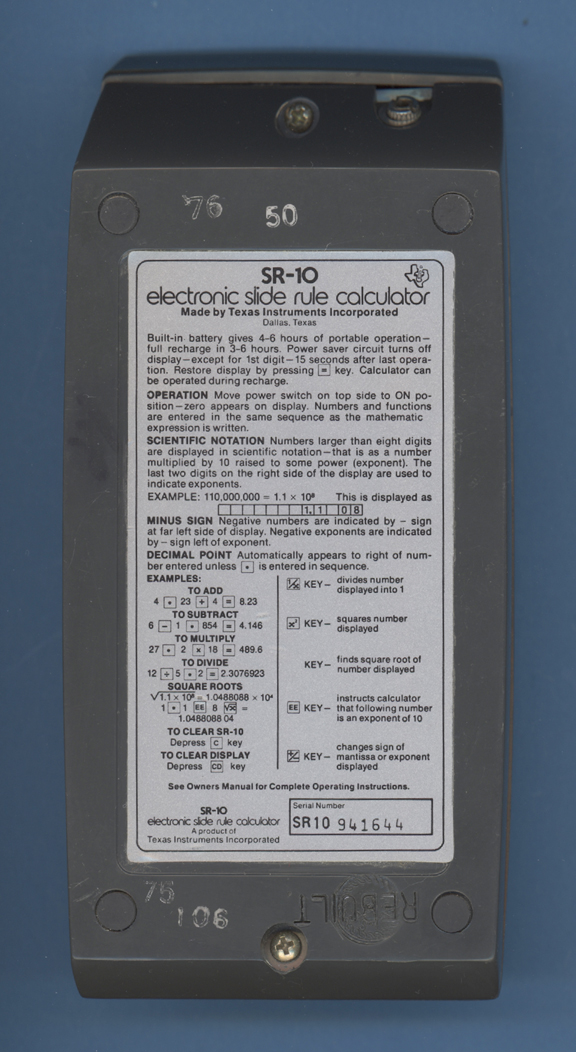

This SR-10 Version 2 was manufactured in 1975 by Texas Instruments and rebuilt in December 1976.
|
|

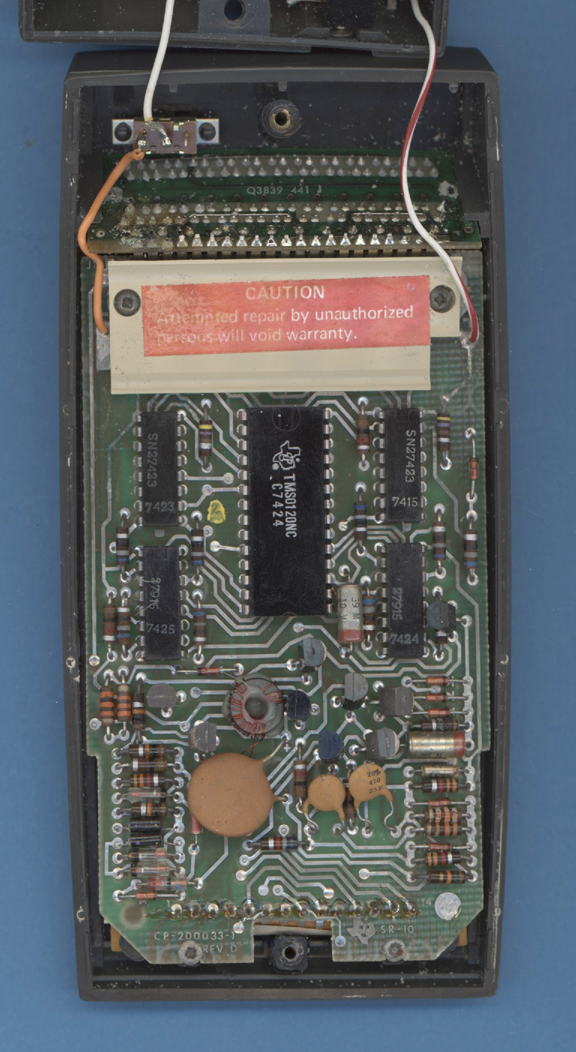

| The double-sided printed circuit board
(PCB) of the SR-10 Rebuilt.
|
|

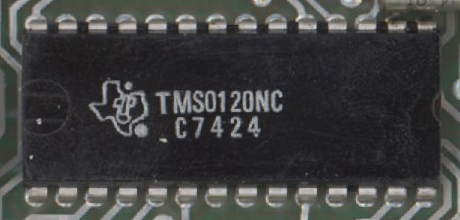

| Close-up of
the TMS0120 single-chip calculator circuit.
|
|
Close-up of
the SN27915 segment driver. |
Close-up of
the SN27423 digit driver. |
