DATAMATH  CALCULATOR  MUSEUM

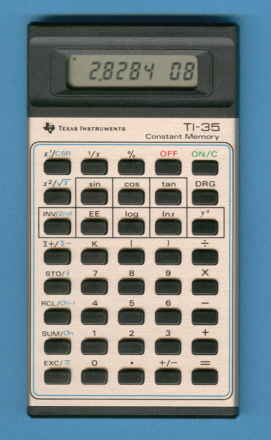

Texas Instruments TI-35

Date of introduction:  1979 Display technology:  LCD
New price:  $33.00 Display size:  8 (5 + 2)
Size:  5.3" x 2.9" x 0.35"
 134 x 74 x 9 mm3

Weight:  2.9 ounces, 82 grams Serial No:  2078474
Batteries:  2*LR44 Date of manufacture:  wk 04 year 1980
AC-Adapter:   Origin of manufacture:  USA (ATA)
Precision:  10 Integrated circuits:  TP0324-4N
Memories:  1
Program steps:   Courtesy of:  Joerg Woerner

TI-35_ATA0480_Back.jpg (145737 Byte)This early TI-35 looks at first glance slightly different from some later models, the silver faceplate seems to be brighter.

From much higher interest is Mike Sebastian's Calculator forensics test, it reported 9.177087103 instead of 9.177087088. We know this number from earlier calculators like the TI-30 with an internal precision of 10 digits instead the expected 11 digits!

TI-35_ATA0480_PCB.jpg (57893 Byte)Dismantling this TI-35 reveals indeed a surprise, the calculator chips reads TP0324-4N instead the common TP0324-4NL designation.

We noticed slightly differences in the finish of the keyboard between some TI-35 calculators and added this page just for reference.



horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, September 20, 2008. No reprints without written permission.
