Additional Pictures

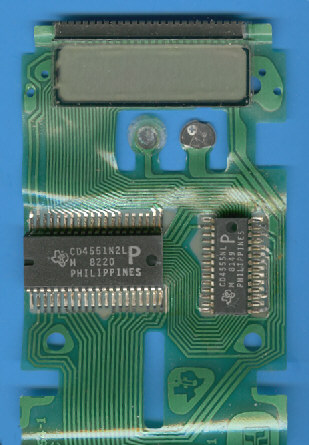

The TP0456 microcomputer based
Primary-Secondary architecture found
in the TI-54 calculator.
The CD4551 is the Primary chip, the smaller
CD4555 the Secondary chip.

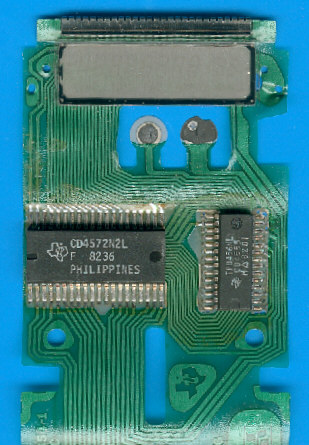

The TP0456 microcomputer based
Primary-Secondary architecture found
in the TI-57 LCD calculator.
The CD4572 is the Primary chip, the smaller
CD4555 the Secondary chip.

The TP0456 microcomputer based
Primary-Secondary architecture found
in the TI-57 LCD calculator.
The CD4572 is the Primary chip, the smaller
CD4555 the Secondary chip.
