Additional Pictures

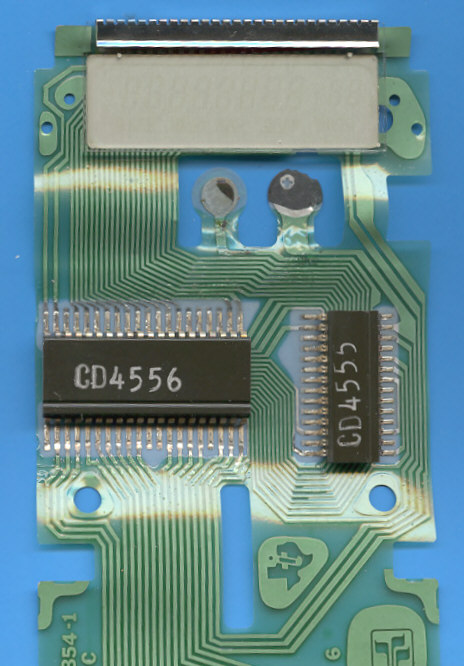

The TP0456 microcomputer based Master/Slave architecture found in the TI-55-II
calculator. The CD4556 forms the Master, the smaller CD4555 the Slave.
