Additional Pictures

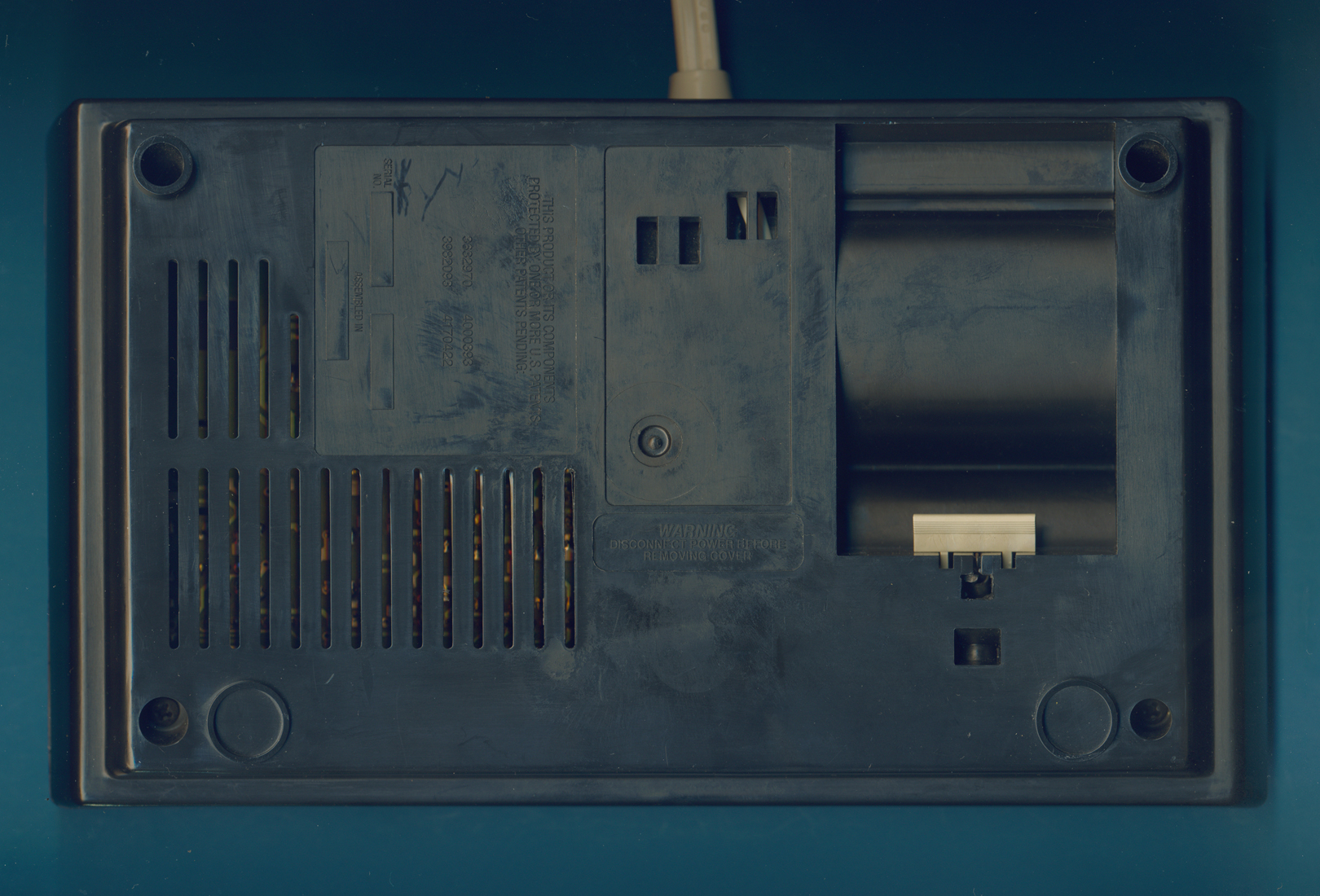

This Texas Instruments PC-800 EVT (Engineering Validation Test) was manufactured around April 1982 by
Texas Instruments in Abilene, TX (Date code ___ ____ » wk __ yr ____).

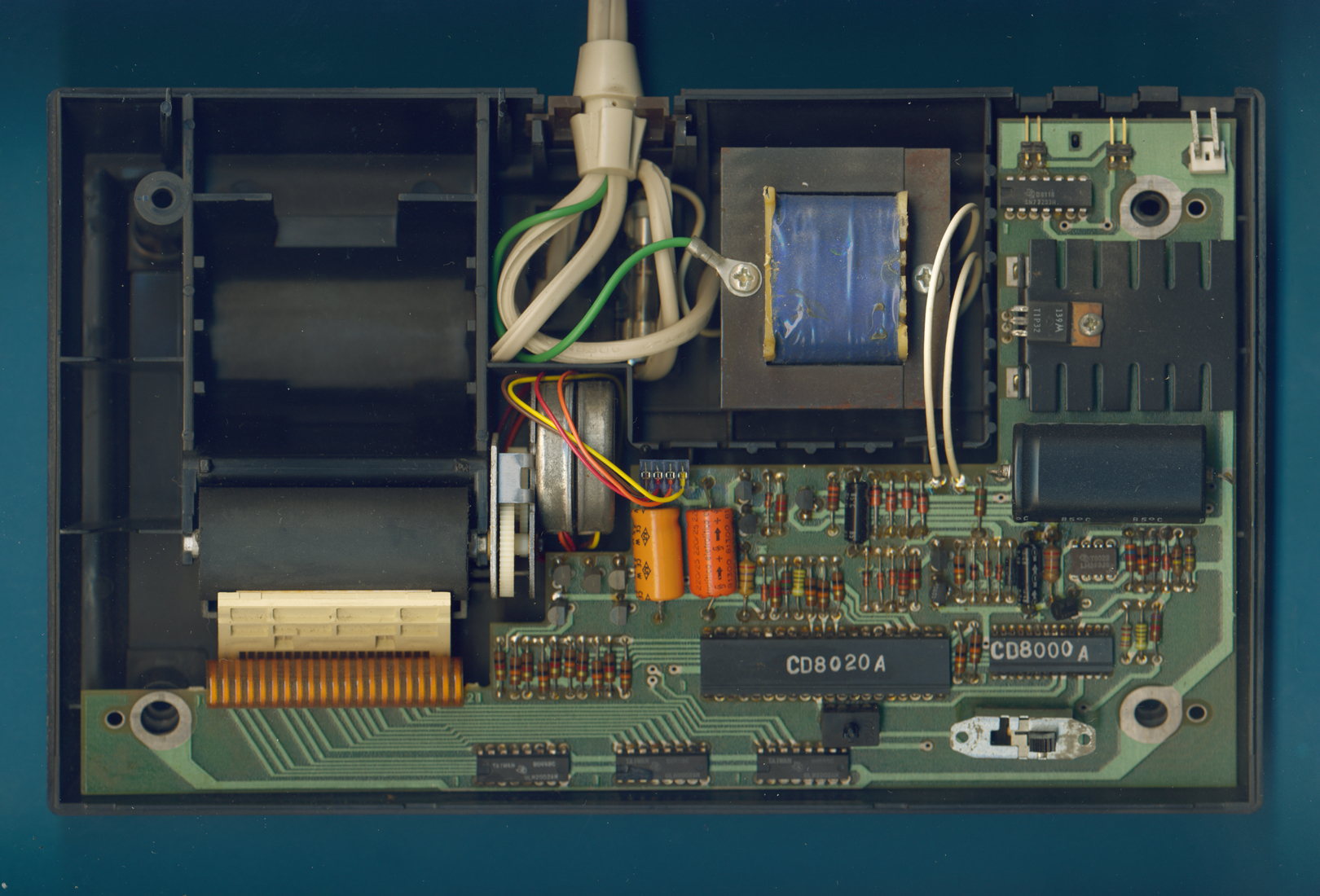

The printed circuit board (PCB) of this PC-800 Printer EVT (Engineering Validation Test) is centered around two TMS1000/CD8000 and TMS1300/CD8020 microcontrollers.

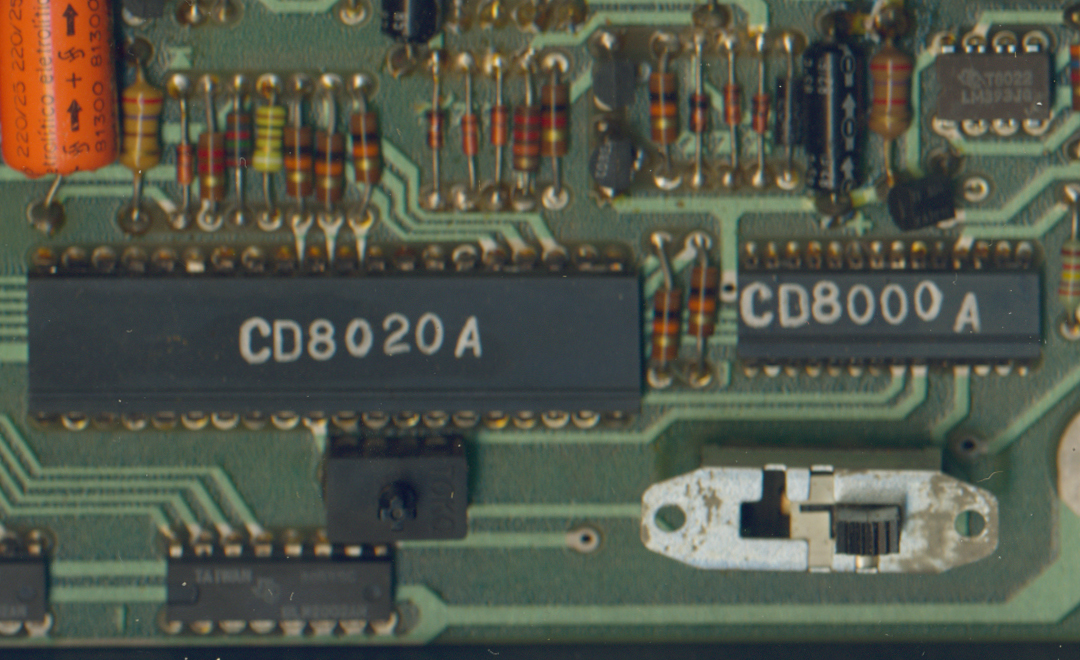

Close-up view of the Main Integrated Circuits of the PC-800 Printer EVT (Engineering Validation Test).
