Additional Pictures
| The CA-800 Cassette Interface
connected to a TI Programmable 88.
|
|

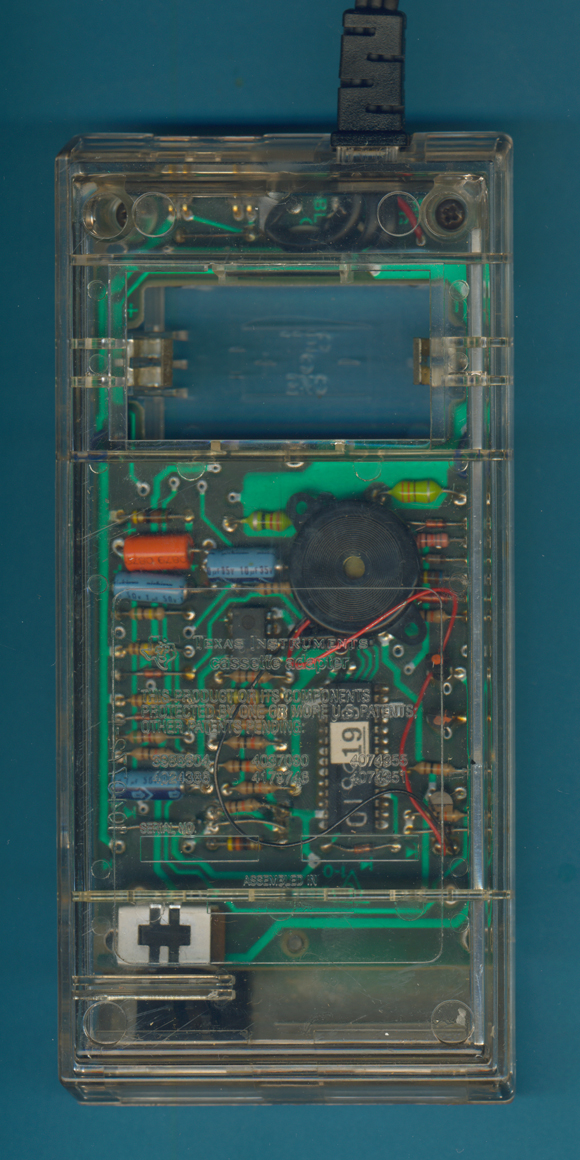

This Texas Instruments CA-800 DVT (Design Validation
Test) Clear-Case was manufactured
in December 1981 by
|

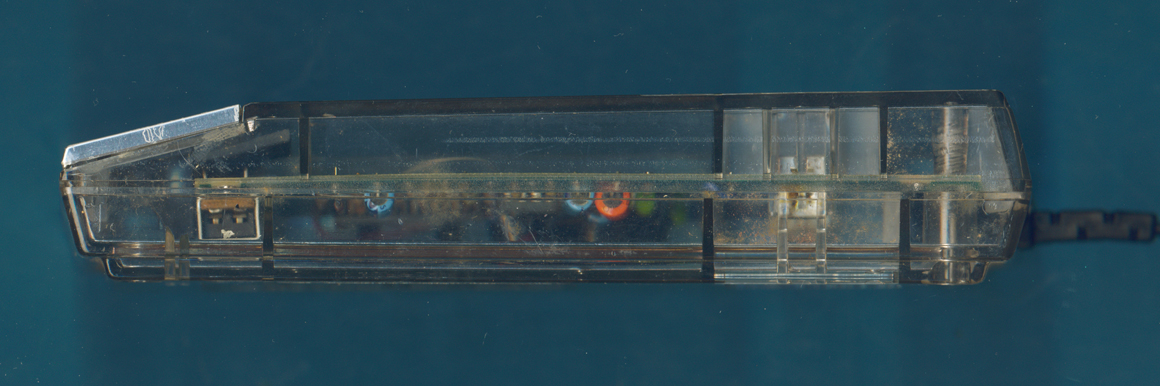

| The side-view of the Texas
Instruments CA-800 Cassette Interface from a DVT Build in a
Clear-Case.
|

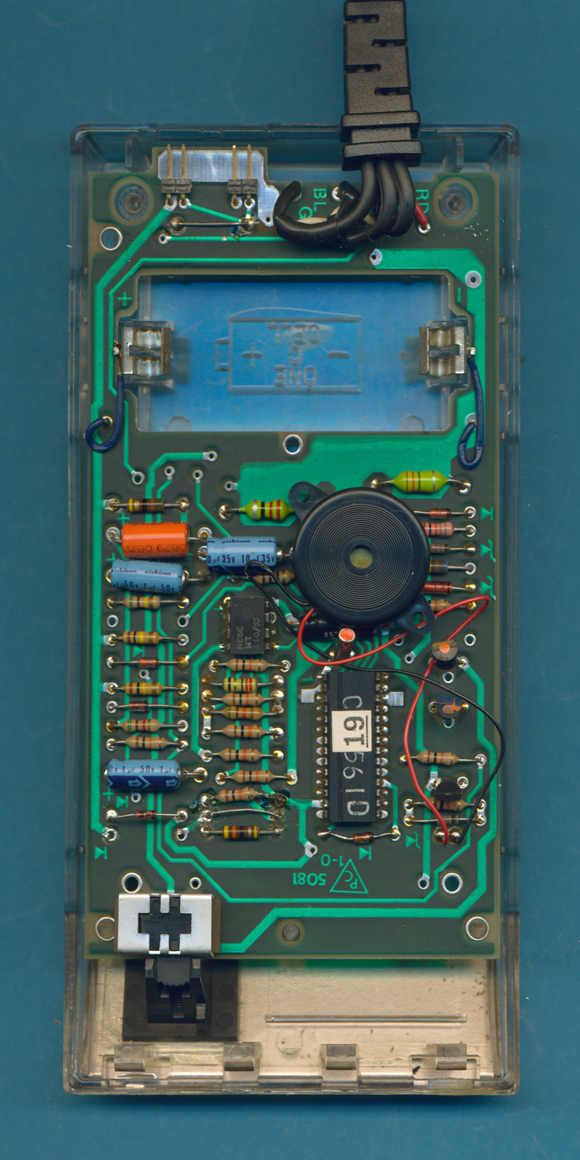

| The printed
circuit board (PCB) of this CA-800 Cassette Interface is
centered around a TP0456 microcontroller.
|
|
Close-up view of the Main Integrated Circuits of
the CA-800 Cassette Interface.
|

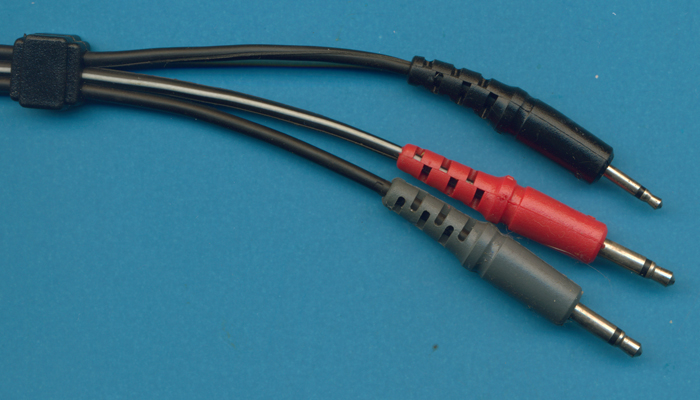

| The three
color-coded plugs of the CA-800 Cassette Interface
connecting to the tape recorder.
|
