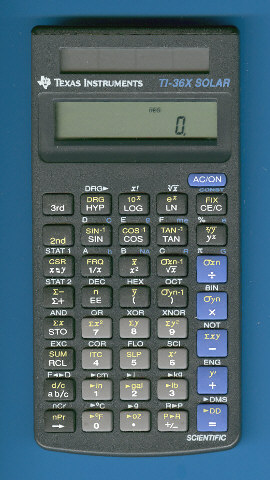

Texas Instruments TI-36X SOLAR

Date of introduction:  1993 Display technology:  LCD
New price:   Display size:  10 +2
Size:  5.7" x 2.8" x 0.55"
 146 x 72 x 14 mm3

Weight:  3.0 ounces, 84 grams Serial No:
Batteries:  n.a. Date of manufacture:  mth 03 year 1996
AC-Adapter:   Origin of manufacture:  Italy
Precision:  12 Integrated circuits:  Toshiba T6A57
Memories:  3
Program steps:   Courtesy of:  Joerg Woerner
    Download manual:   (GB: 3.7 MByte)

In 1993 Texas Instruments introduced a new design that replaced both the TI-68 look of the earlier TI-36X Solar and the boxy design of the TI-30 Stat calculator.

The smooth shape together with rubber-like keys was used on 5 different calculators:

• TI-30X  New display with 10 + 2 digits, 3 memories
• TI-30X SOLAR With Anylite solar-cells
• TI-35X  Adds 2-dim statistics and hex-calculations
• TI-36X SOLAR  With Anylite solar-cells
• BA Real Estate Financial calculations

TI-36X_Solar_RCI0396_PCB.jpg (64894 Byte)Dismantling the TI-36X SOLAR reveals a novel construction based on a rubber keyboard pressing on a flexible printed circuit board (PCB) with an attached rigid board holding a Toshiba T6A57 single-chip calculator circuit.

Simply by comparing the designation of the integrated circuits of the calculators you'll get the early X-family:

• T6A57    TI-36X SOLAR
• T6A58    TI-35X
• T6A59    TI-40X Galaxy
• T6A60    TI-9X Galaxy
• T6A61    TI-30X

Read more about the Logarithm Bug and its side effect on the related yx function present in this calculator.

In the year 1996 the design of these calculators was changed again. View the updated TI-36X Solar here.

Read the key features of the TI-36X SOLAR:

• ANYLITE™ solar power
• Operates in low light; never needs batteries.
• One- and two-variable statistics
   Includes results for linear regression and trend line
   analysis.
• Fraction features
   Adds, subtracts, multiplies, and divides fractions
   entered in traditional numerator/denominator
   format.
• 3 Memories
• 10 English/Metric Conversions
• 8 physical constants

An identical calculator was sold by Radio Shack with the EC-4043.

The TI-36X SOLAR is featured in the Texas Instruments Incorporated sales catalog CL-1233 dated 1994.
