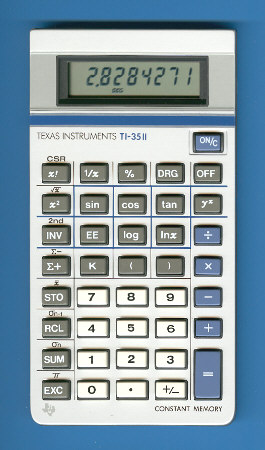

Texas Instruments TI-35 II (Italy)
| Date of introduction: | 1985 | Display technology: | LCD |
| New price: | Display size: | 8 (5 + 2) | |
| Size: | 5.3" x 2.8" x 0.45" 135 x 70 x 11 mm3 |
||
| Weight: | 2.3 ounces, 64 grams | Serial No: | |
| Batteries: | 2*LR44 | Date of manufacture: | mth 06 year 1985 |
| AC-Adapter: | Origin of manufacture: | Italy | |
| Precision: | 11 | Integrated circuits: | TP0456/CD4557 |
| Memories: | 1 | ||
| Program steps: | Courtesy of: | Joerg Woerner |
The
production of the original TI-35 II was shifted in 1985
from Taiwan to Italy and USA but the overall appearance kept almost identical. Main difference between
the two known TI-35 II models is the internal construction using a flexible printed
circuit board (PCB) instead the rigid type. As a result we notice a slightly
shifted position of the display frame and a small reduction in weight of the
calculator.
Up to now
we discovered no differences between the products manufactured in Italy respectively USA. Even the printed circuit board (PCB) looks
identical - and is known from the TI-30 III.
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, July 26, 2004. No reprints without written permission.
