Additional Pictures



The printed circuit board (PCB) of the N-0407 coded calculator wires
to the battery and connects to a one-sided keyboard PCB.

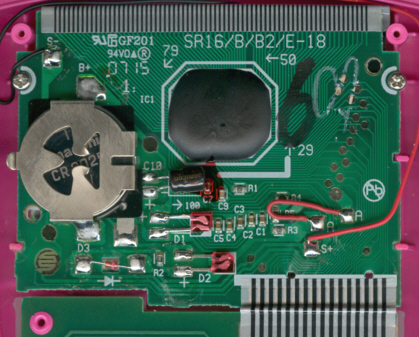

The printed circuit board (PCB) of the K-0407 coded calculator
uses the well known SR16 designation of Kinpo.

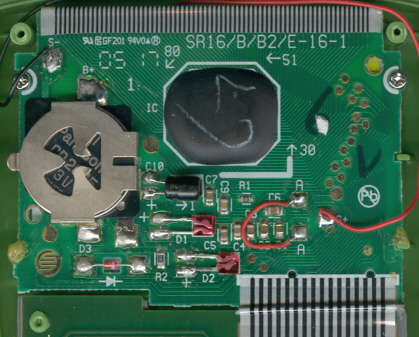

The printed circuit board (PCB) of the K-0505 coded calculator
uses the well known SR16 designation of Kinpo.


If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, August 15, 2007. No reprints without written permission.
